Rsx_tkc – GReddy TURBO KITS: Acura RSX Type-S 2002-03 / T517Z User Manual
Page 18

3-14 e-Manage
Installation
(1) Remove the cover under the glove box to access the ECU and ECU harness.

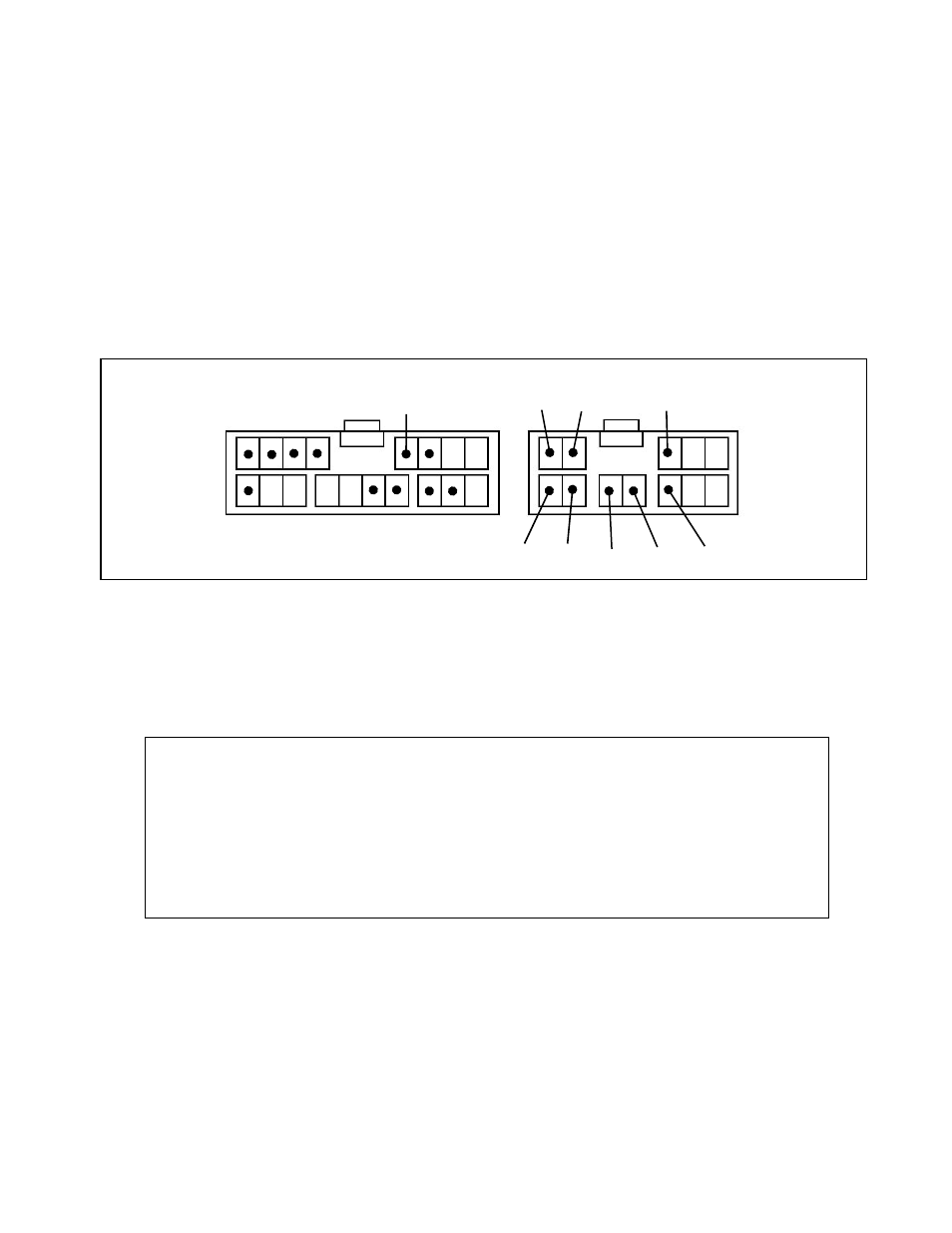

(2) Install the Grey wire to the e-Manage I/J Harness (18Pin) connector as shown
below.
(3) Install the ignition harness wires in the e-Manage I/G Harness (12Pin) connector
as shown below.
* When inserting the wires in to the connectors, make sure that the direction of the
pins are correct and push them in all the way until they click in.
Grey
PL/W
BL/B
O/B
Y/W
Y/B
PL/B
BL/W O/W
IG Harness connector 12P
I/J Harness connector 18P
(4) Connect the I/J and I/G Harness to the factory ECU harness as shown in the
diagram on next page.
(Parts used #15, 16, 17)
Important
• This installation should only be performed by a trained specialist who is very
familiar with the automobile’s electrical and fuel management system.
• GReddy Performance Products Inc. is not responsible for any damage to
the vehicle’s electrical system caused by improper installation.
• It is recommended to solder all wires and use electrical tape or shrink warp
to insulate the wire connections.
