GReddy TURBO KITS: Acura RSX Type-S 2002-03 / T517Z User Manual
Page 17

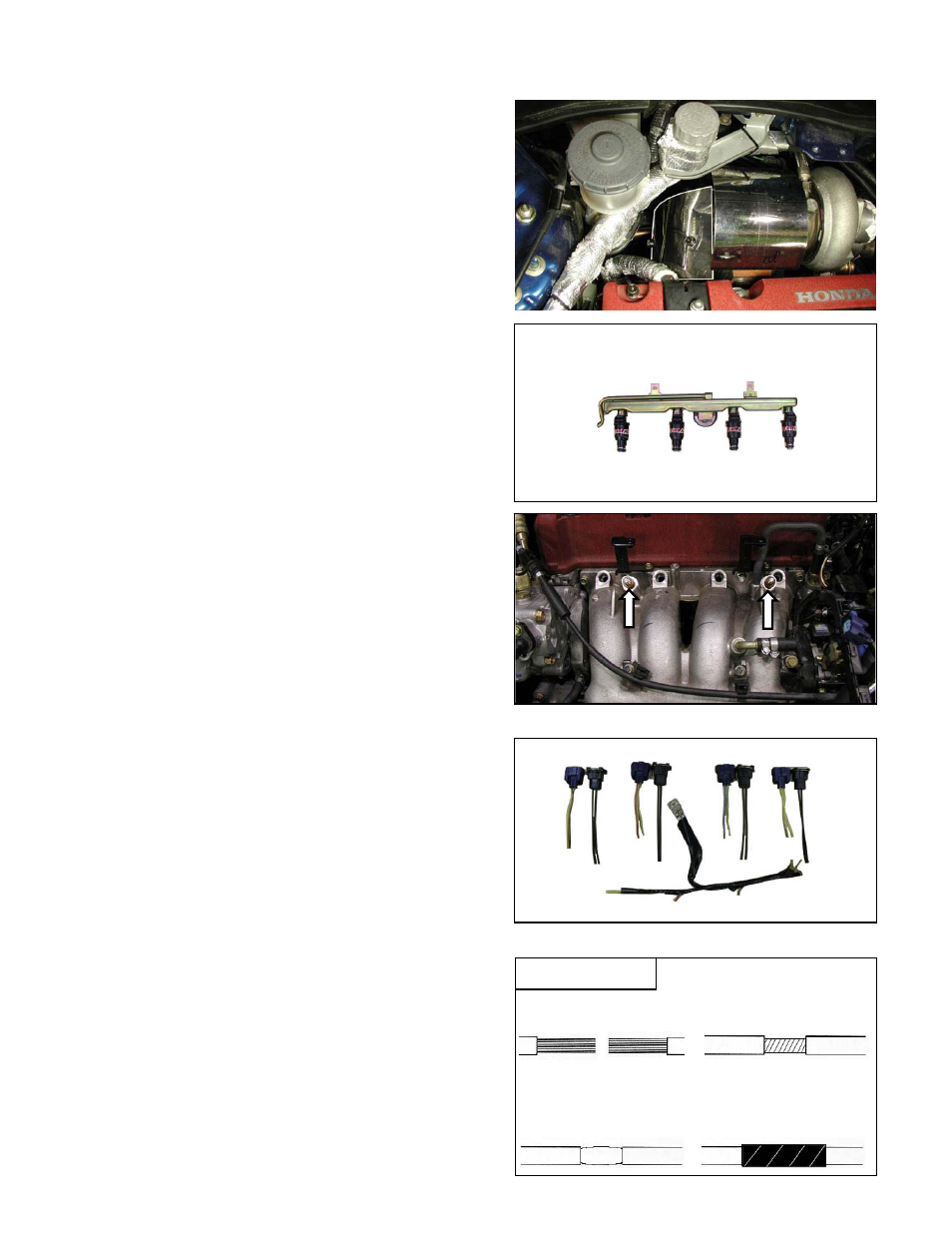

(2) Install the down pipe heat shield on to
the downpipe using the provided M6 x
10mm bolts.
(Parts used #48,57)
3-13 Fuel Injectors Installation
(1) Disconnect the fuel injector connectors
and ground wire on the fuel delivery
tube and remove the fuel delivery tube.
* When removing the rail, use a rag to
absorb the fuel that leaks out from the
rail and hose.
(2) Remove the injector clips off the rail,
and remove the injectors.
(3) Install the new injectors on to the rail.
* Lube the o-rings on the injectors and
make sure not to damage the o-ring
when installing them in to the rail.
(Parts used # 12)
(4) Replace the stud bolts and spacers that
holds the fuel rail down with the
provided stud bolts and spacers.
(5) Install the fuel rail assembly to the
intake manifold.
(6) Remove the injector wire cover and cut
the factory injector connectors. Cut the
provided injector harness to the same
length of the cut factory connectors.
(Parts used # 13)
Soldered.
Make sure the wires are properly
4. Tape up the exposed wires.
3.soldder the wires
2. Twist the two ends together.
1.Strip the wire ends.
How to Solder
(7) Solder the connectors to the harness
and connect them to the injectors.
Reconnect the ground wire back to the
manifold.
