GReddy TURBO KITS: Acura RSX Type-S 2002-03 / T517Z User Manual
Page 14

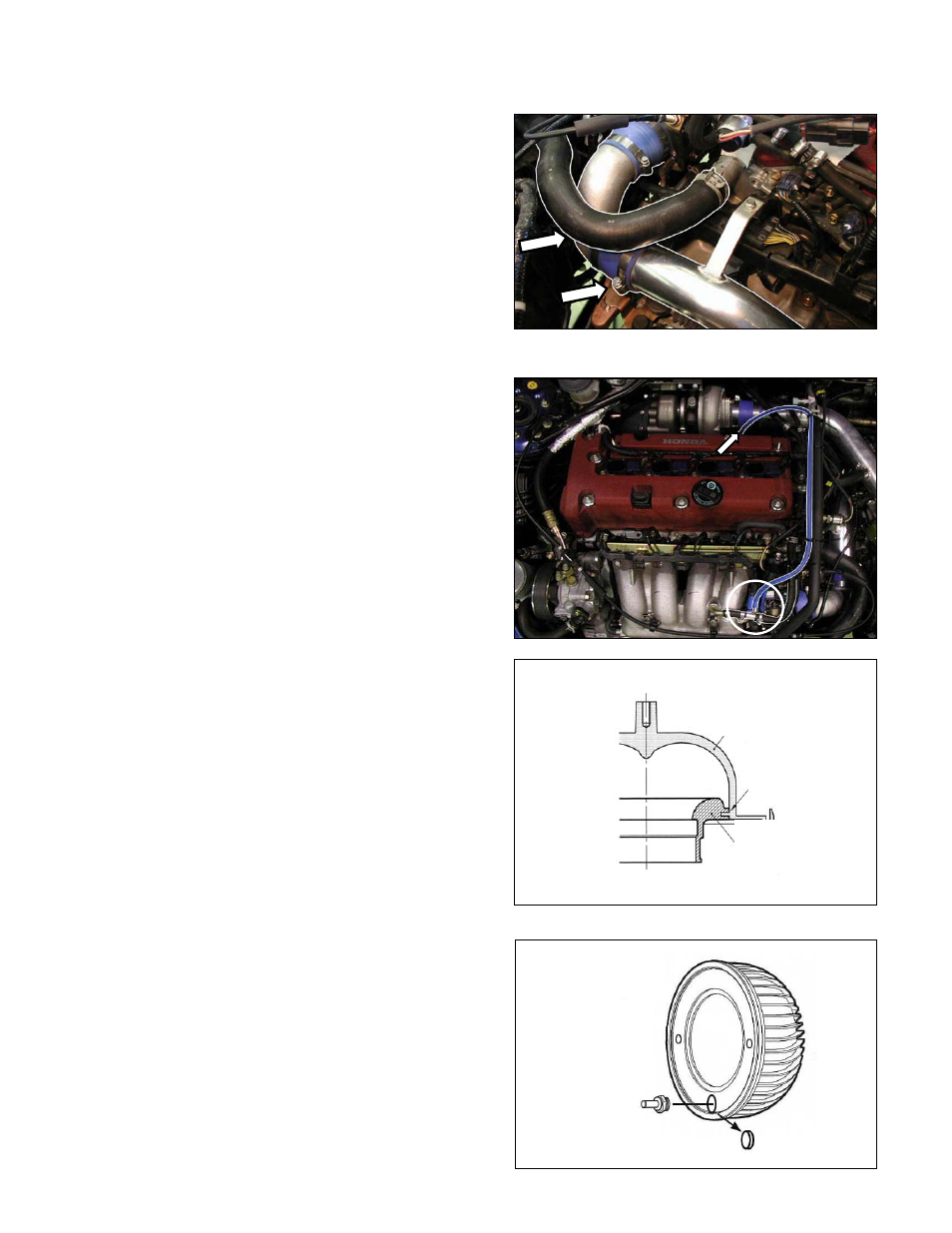

(3) Install compression pipe C-2, and C-3
between C-1 and throttle body. Using
provided hose and clamps.
* Secure the bracket on C-2 to the factory
air cleaner box mounting point.
* Make sure that the compression pipes
does not interfere with shifter linkage
movement. Also, check the clearance
between the radiator hose and
compression pipes.
(Parts used #7, 8,32, 33,34, 38,39,
40,58)
(4) Cut the master power vacuum hose by
the intake manifold and install the 3-way
fitting. Connect the 5
∅ side to the
actuator with the provided 5
∅ hose.
* Secure all the vacuum hose with zip ties
to prevent the hose from coming off the
fitting.
(Parts used #28,50,52)
3-10 Intake Pipe Installation
Hose Adapter
Tabs
Main Body
(1) Remove the top bolt on the Airinx air
filter and remove the outer frame .
(Parts used #10)
(2) Install the provided hose adapter to the
inner frame of the Airinx.
(Parts used #11)
(3) Reinstall the outer frame and secure it
with the top bolt.
(4) Remove the rubber plug on the Airinx
and install the union fitting as shown.
(Parts used #55)
