3-7

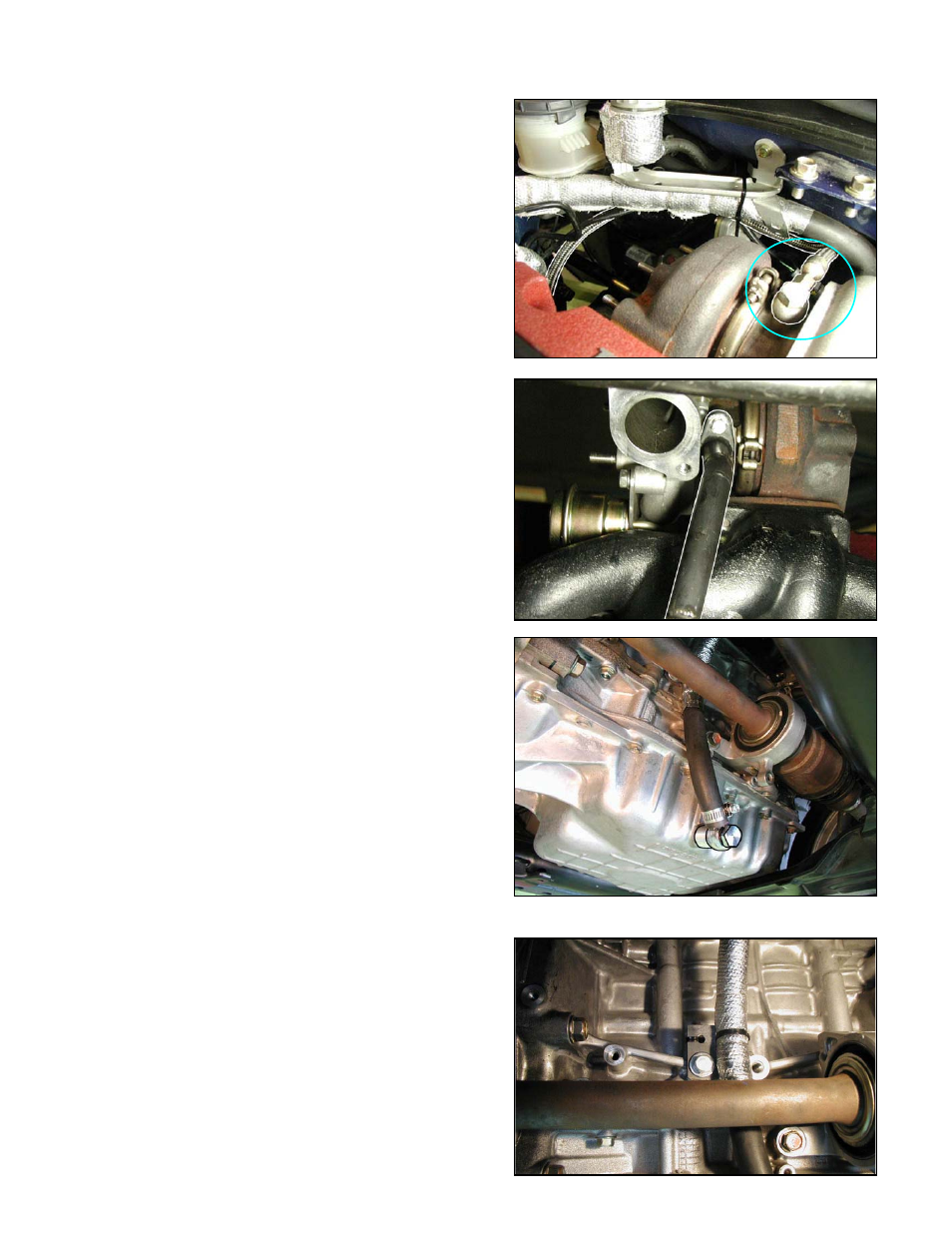

Oil Pressure Line Connection

(1) Connect the oil pressure line that was

installed in step 3-4 to the turbo using
banjo fitting and copper washers. As
shown.

* Point the banjo fitting towards the

firewall.

(Parts used #19,20)




3-8 Oil

Return

Installation

(1) Install the provided oil return pipe

to the turbocharger using the provided
gasket and hardware as shown.

(Parts used #24, 46, 60)








(2) Remove the oil drain bolt and install the

provided oil return banjo bolt using
spacer and copper washers as shown.

(Parts used #25, 26, 27)

(3) Wrap the provided 16

∅hose with thermo

cloth. Then Install the hose to connect
the oil return pipe from the turbo to the
oil return banjo fitting on the oil pan.

* Route the hose behind the intermediate

drive shaft as shown.

(Parts used #30, 36, 49)


(4) Install the Oil return hose bracket to the

block and secure the hose to the
bracket using provided zip ties as
shown.

(Parts used #50, 54)
