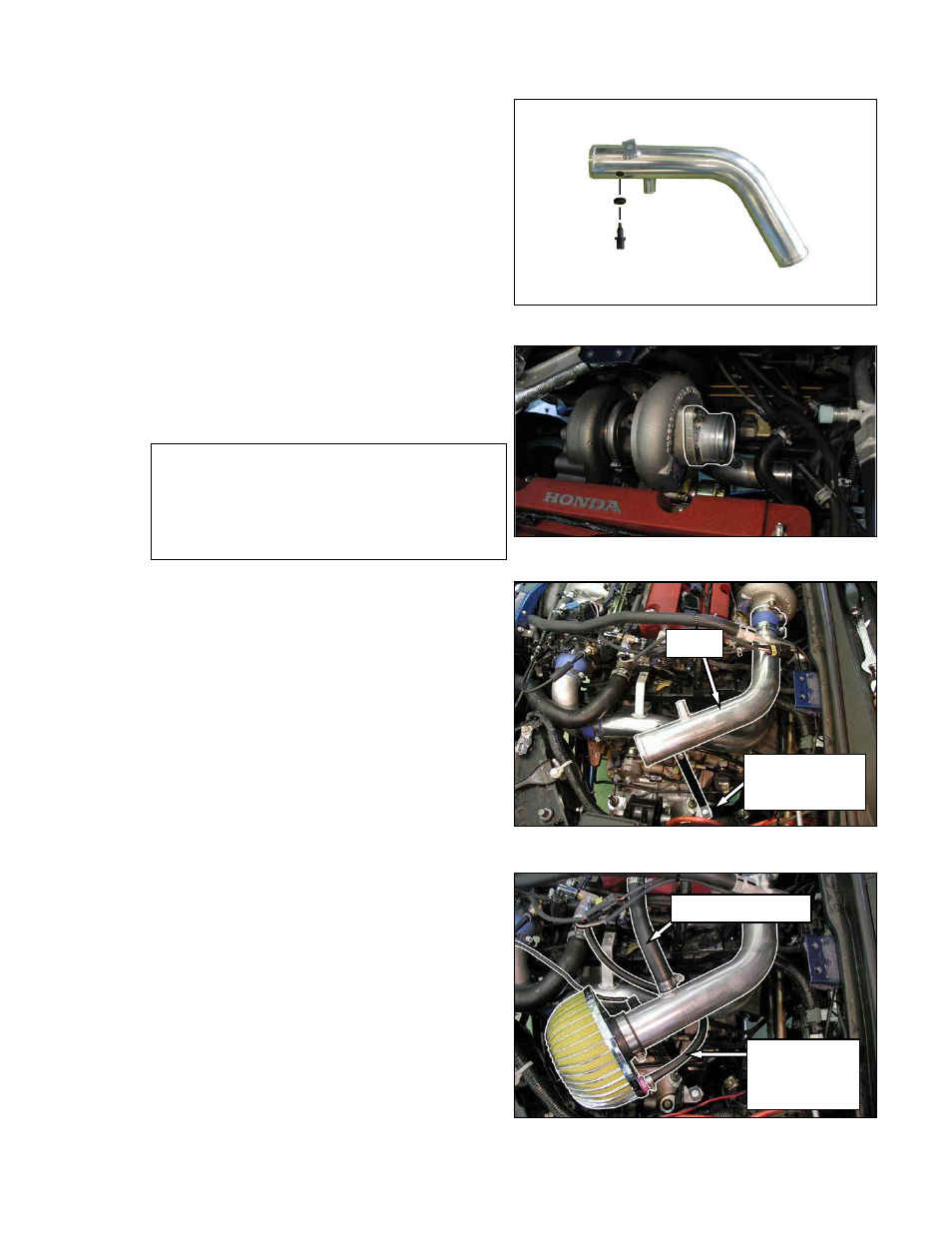

(5) Install the provided intake air
temperature sensor grommet to the
suction pipe S-1 as shown.
IAT Sensor
Grommet
(Parts used #4, 56)
(6) Install stud bolts on to the inlet of the
turbo, and install suction adapter using
provided gasket and restrictor.
(Parts used #5,9,41,62)
Important!
The restrictor must be used with this
turbo kit. With out it, the system can
exceed the set boost level and can
damage the engine.
(7) Install the Airinx air filter and S-1.
Secure the suction pipe bracket to the
factory air cleaner box mounting point
as shown.
S-1
Mounting point
* Make sure that the Airinx and the piping
does rub up on to the battery.
(Parts used #32,39,53,58,59)
(8) Connect the blow by tube from the valve
cover to the S-1 with the provided 18 ∅
hose and clamps. Also connect the air
assist control valve to Airinx using
provided 8
∅ hose and clamps.
Blow by hose
To air assist
Control valve
(Parts used #29,31,35,37)
