4

C o n n e c t i n g t h e O n - B o a r d R e a d e r

Connecting the On-Board Reader

The On-Board Reader is installed in series between the DriveRight 600 or
600E device and the DriveRight digital input adapter cable or GPS module.

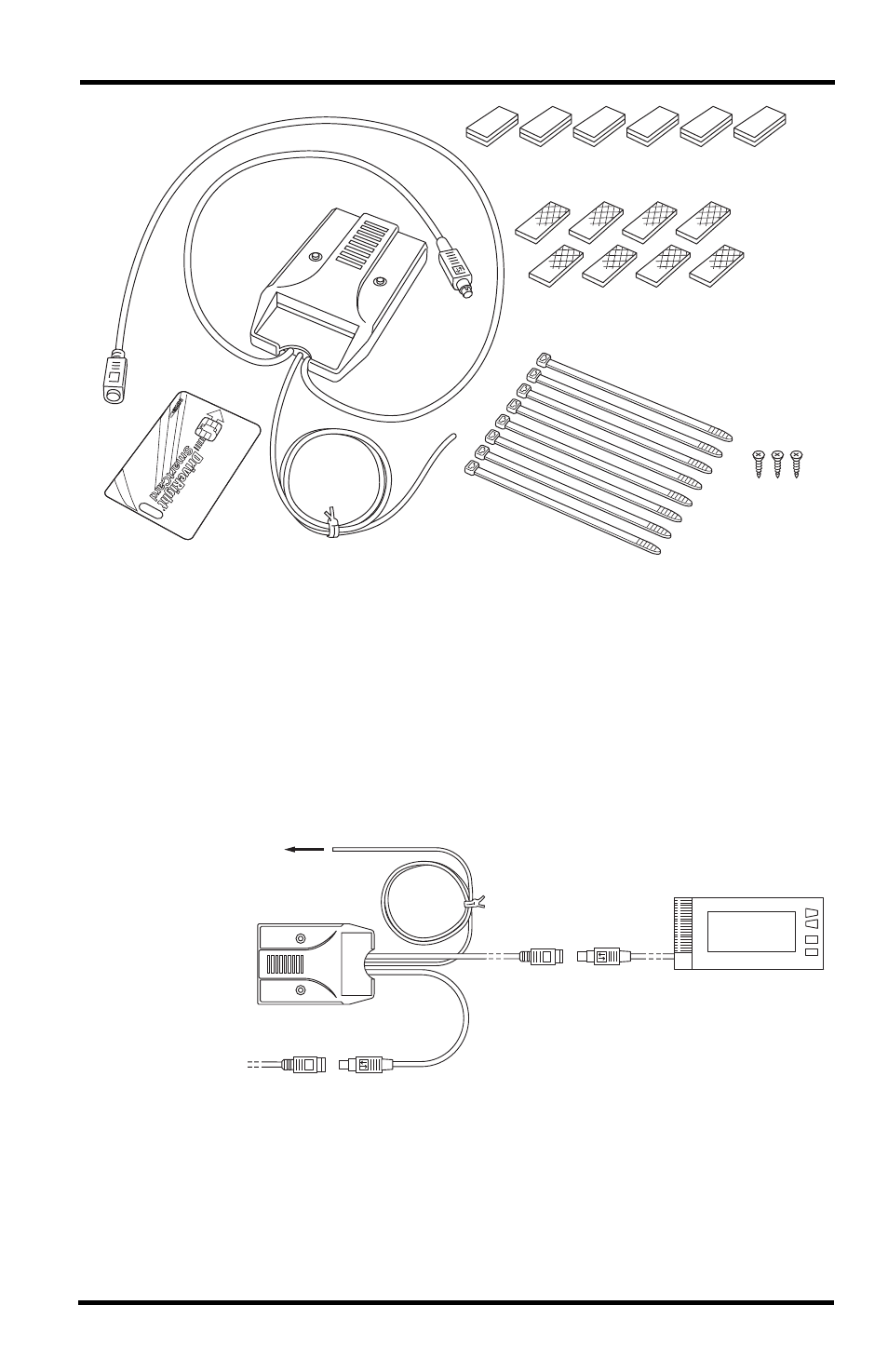

Use the following diagram below to connect the On-Board Reader to the
DriveRight device and any other components in your system:

To connect the On-Board Reader to your existing DriveRight system:
1. Disconnect the DriveRight device cable from the GPS module cable or

Digital Input Adapter Cable.

2. Connect the On-Board Reader’s female connector to the male connector

from the DriveRight device cable.

SmartCard

On-Board

Reader

SmartCard

Velcro

®

Tabs (6)

Double-Sided Foam Tape (8)

#6 X 1/2"

Flat Head

Self-Tapping

Screws

(3)

5-1/2" Cable Ties

(8)

To Starter Interrupter

Relay Harness

(Optional)

SmartCard

On-Board

Reader

GPS or

Digital Input

Adapter Cable

DriveRight 600 or

DriveRight 600E

Device
