13

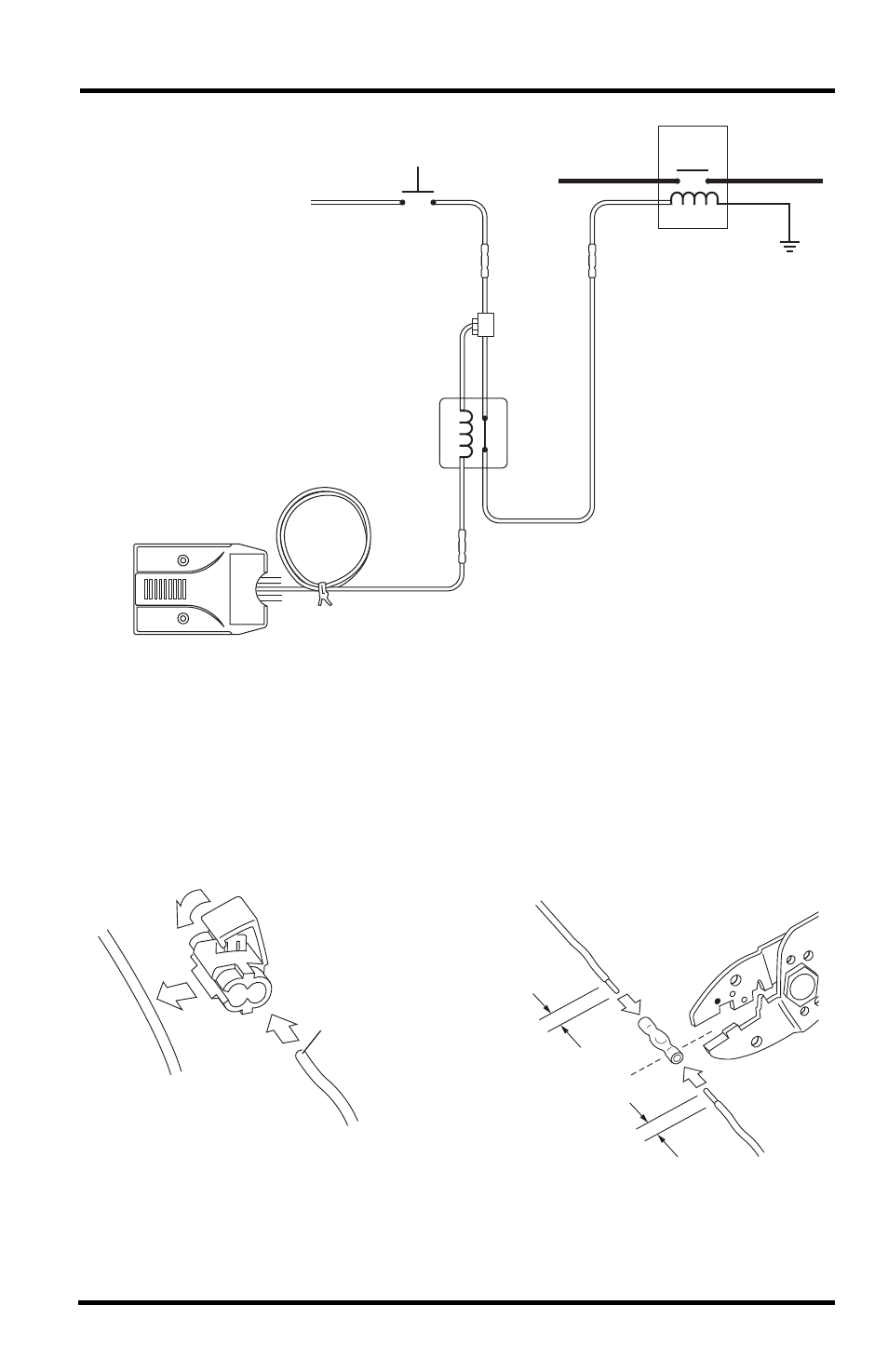

I n s t a l l i n g t h e S t a r t e r I n t e r r u p t e r K i t
.
To connect the Starter Interrupter Kit to the On-Board Reader and the Vehi-
cle’s Ignition System:
1. Find your vehicle’s fuse box and remove the fuse for the 12-volt line before
installing the Starter Interrupter Kit.
2. Splice the Starter Interrupter Kit’s switched 12-volt wire into the 12-volt
starter wire.
3. Make the other splices in the diagram using the supplied In-Line and Butt
Splices as necessary.
In-Line
Splice
12V
Starter Switch Wire
Key Switch
STARTER
INTERRUPTER
RELAY
#8116
Red Wire
Green Wire
Green Wire
Yellow Wire
Butt
Splice
Butt
Splice Butt
Splice
Gray Wire
60 Amp
Starter Power
Starter
Solenoid
Crimp Tool,
22-18AWG Position
(red dot)
Butt
Splice
3/16" - 1/4"
(5 - 6 mm)
3/16" - 1/4"
(5 - 6 mm)
In-Line Splice
Switched 12V
Wire
Red Wire from
Interrupter Relay
Stripped Wire,
Trimmed off Flush
In-Line Splice Butt Splice
