2. Remove the plug from one of the holes in the floor of the Universal Shelter.
Wrap the split oval grommet around the console power cable and feed it up
through the hole. Insert the grommet snugly into the hole.
3. Plug the power cable into the console.
4. You may want to mount the two shelters at this point, within cable-length (the
console power cable that comes with the Heavy Duty Solar Power Kit is 10'
[3 m] long) of each other. See Mounting the Universal Shelter (page 4). See
your Solar Power Kit User Manual for information on installation.
5. Remove the plug from one of the holes on the floor of the Heavy Duty Solar
Power Kit shelter.
6. Wrap a split-oval grommet around the other end of the console’s power cable
and feed it up through the hole in the Heavy Duty Solar Power Kit shelter.
Insert the grommet snugly into the hole.
7. Plug the power cable into the console power plug on the charging circuit.(See
your Solar Power Kit User Manual.)
8. Close both shelters and lock them.
Mounting the Universal Shelter
Choose a location for your shelter. It can be mounted on a pole or a flat surface
such as a wall or a wooden post.

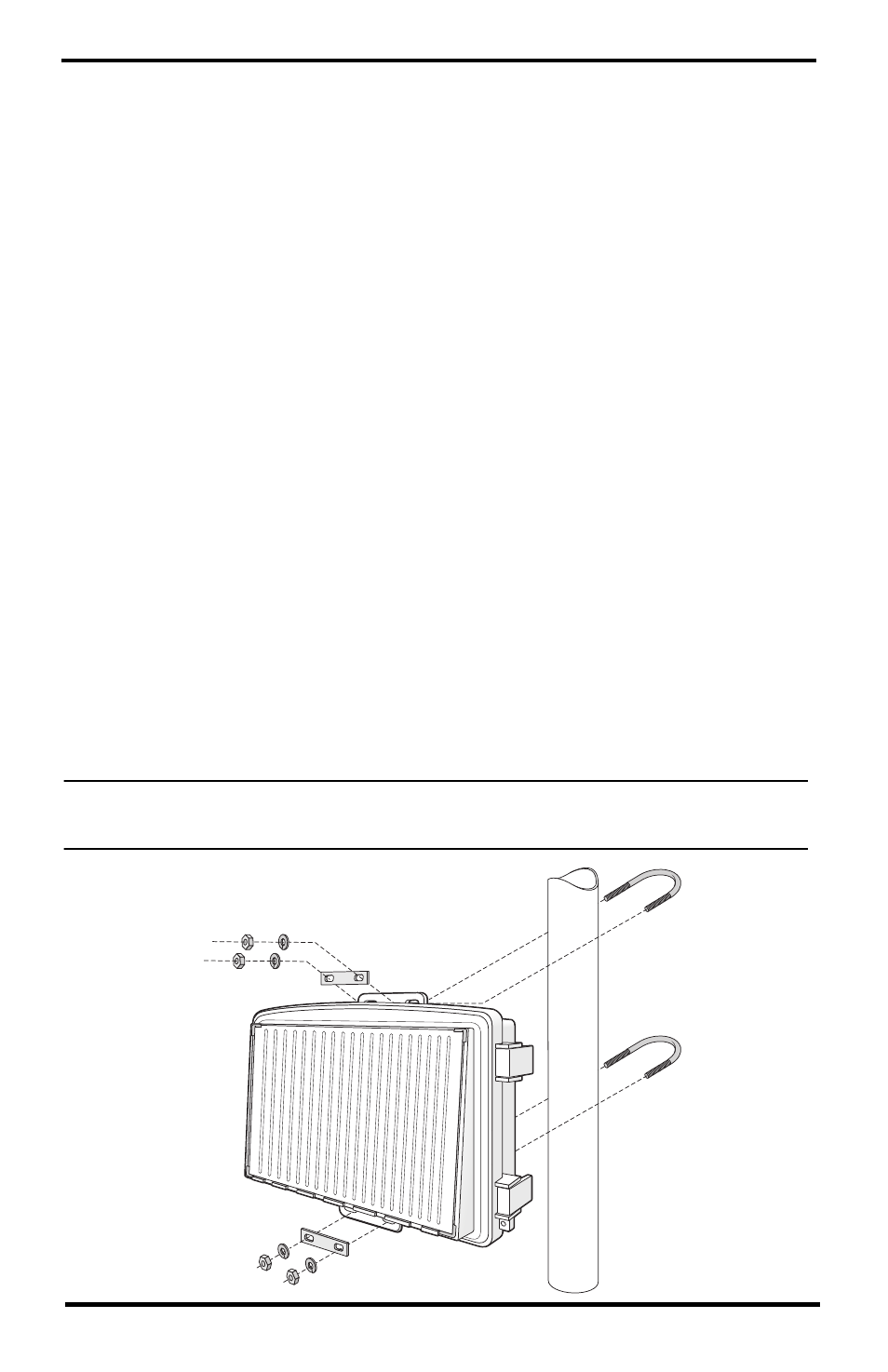

Mounting on a Pole
Mount the shelter onto a pole or pipe with an outside diameter of 0.84'' to 1.84''
(21 mm to 27 mm) using the U-bolts, backing plates, washers, and hex nuts
provided.
Note: For mounting on larger diameter pipes, the housing can accommodate U-bolts with 5/6 ''
(8 mm) threads for pipes up to 2.40 '' (61 mm) outside diameter (not provided).
