DAVIS Vantage Pro/Pro Plus: Daytime Fan Asp. Radiation Shield Kit User Manual
Page 8

8
11.
Lower the Fan Plate onto the stack making sure the screw goes through the boss in
each of the plates and lines up with the threaded insert located in the bottom plate.
12.
Turn the screw a few times to engage the threaded insert in the bottom plate.
13.
Make sure the other screw bosses are aligned and then insert the other two 4”
screws with a lock washer and washer in the same way.
14.
Tighten all three screws to securely fasten the bottom section of the radiation
shield.
Fan Plate
#8 Flat Washer
#8 Lock Washer
#8-32 x 4" Screws (3)
Threaded Insert
in Bottom Plate
Screw Boss

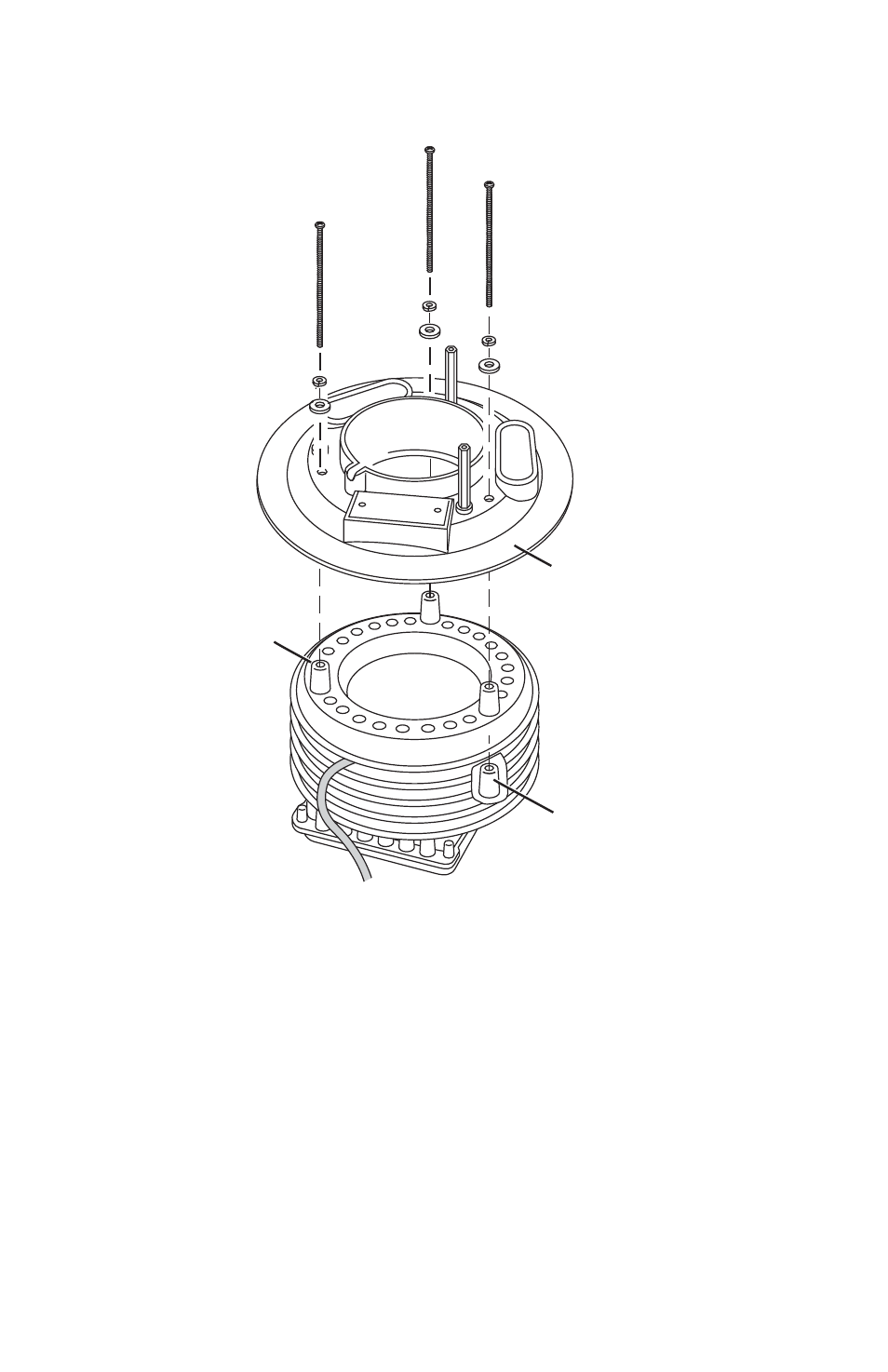

Figure 13. Install Fan Plate
