Assemble the lower section – DAVIS Vantage Pro/Pro Plus: Daytime Fan Asp. Radiation Shield Kit User Manual
Page 6
6
Assemble the Lower Section
1.
The top plate in the ISS radiation shield has a thick, insulating disk attached on the
underside. Remove the two screws holding the insulating disk and discard the disk.
Save the top plate for use in Step 3.
2.
Remove the Temp/Hum sensor from the bottom plate.
3.
Using the same screws and orientation, install the Temp/Hum sensor on the top
plate from Step 1.
Note: The cable clamp mounting hole is missing from the closed plates on early production models. If
it is missing on your ISS, discard the clamp and hardware. The extra strain relief provided by
the clamp will not be necessary for most applications.
Top Plate
Insulating Disk

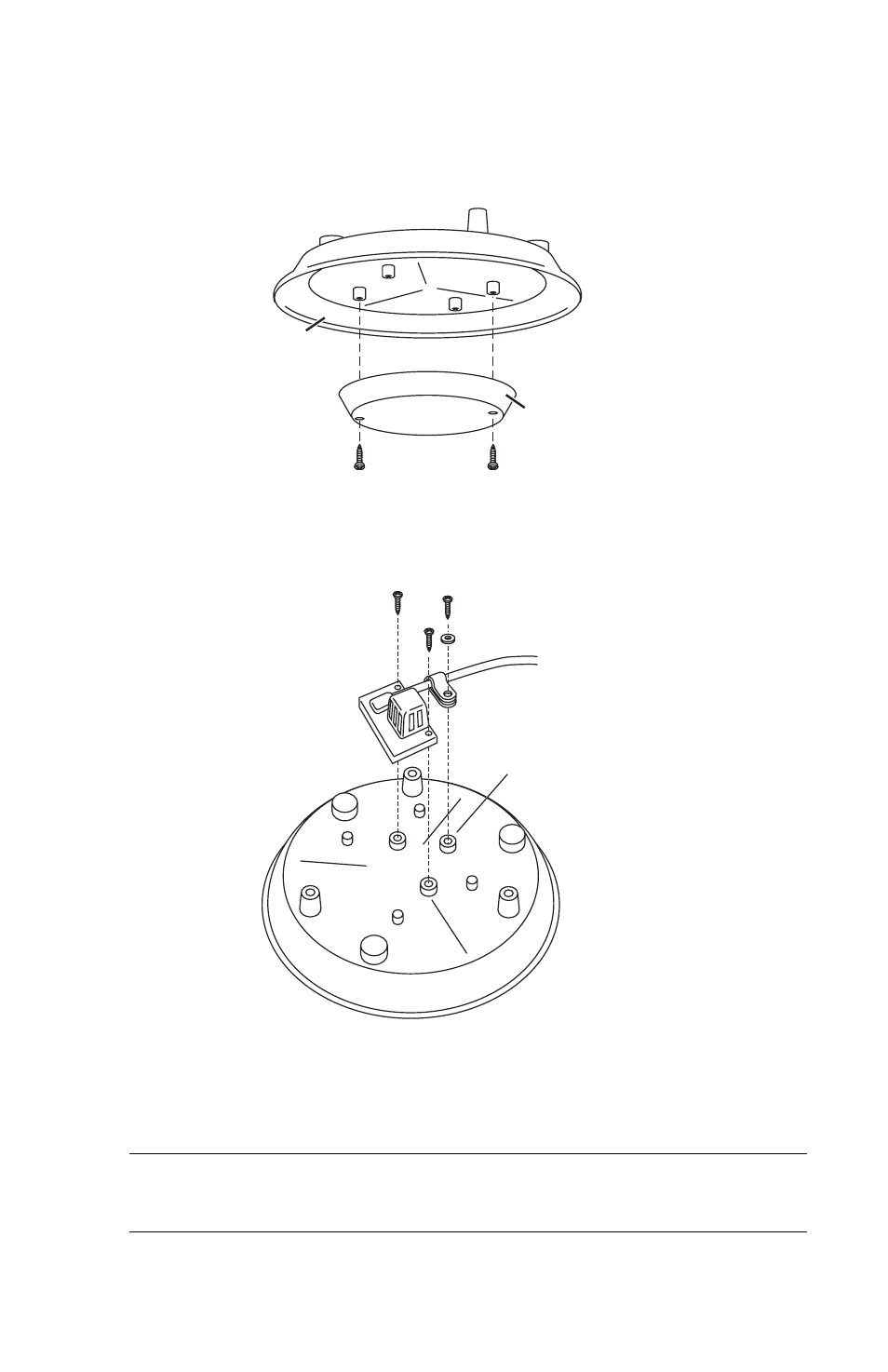

Figure 9. Remove the Insulating Disk
Screws (3)
Flat Washer
Cable Clamp
Temp/Humidity
Sensor
Cable Clamp
Mounting Hole
Figure 10. Temp/Hum Sensor Removal and Installation
