Preparing the Rain Collector

Page 9

4.

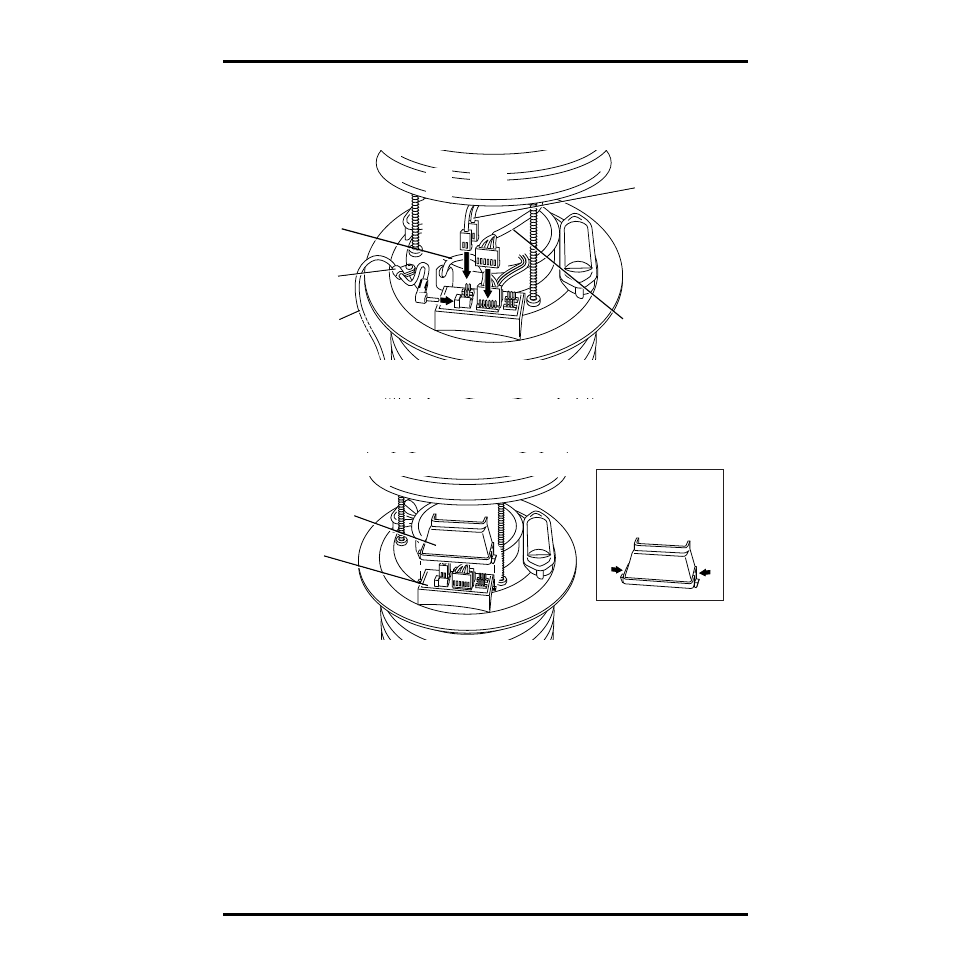

Check the Junction Board cable connections: SIM Sensor, SIM Power,
Motor, Temp/Hum Sensor, and Solar Power. Refer to the figure below and
also to the Junction Board Connections figure on page 7.

5.

Install the Junction Board Cover as show below. The Junction Board Cover
presses easily into place when you are installing it. To remove the cover,
press gently in on both sides to release the latches holding it in place.

6.

Slide the two sections of the Radiation Shield completely together.

7.

Place the flat washers, lock washers and plastic wing nuts over the
threaded rods.

8.

Finger-tighten the wing nuts until they hold the radiation shield plates
firmly in place.

Preparing the Rain Collector

Refer to this section in your ISS Installation Manual.

Choosing a Site for the ISS

Refer to this section in your ISS Installation Manual.

SIM Sensor

Interface Cable

Cable Clamp

AC Power Adapter

Cable

(cabled models)

Solar Power

Cable

(wireless models)

SIM Power

Cable

(wireless models)

Temp/Hum

Sensor Cable

Junction Board Cable Connections

Junction Board Cover

Junction Board

Press in on Sides

near latches

to Remove Cover

Junction Board Cover Installation
