DAVIS Vantage Pro ISS Fan-Aspirated Add. 2003 & earlier User Manual
Page 7

Preparing the ISS and Radiation Shield
Page 7
Powering the Fan
The Cabled Vantage Pro is powered by an AC-power adapter. The Wireless
Vantage Pro ISS is solar-powered with batteries for overnight power. Refer to
the Junction Board Connections illustration when powering the fans.
Cabled Vantage Pro
1.
Locate the Junction Board on the fan plate (See page 5).
2.
Connect the AC-power adapter to the +5V connector on the Junction Board.
3.
Plug the AC-power adapter into an AC outlet.
4.
Check to see that the fan is blowing air up and away from the Temp/Hum
Sensor.
5.
Unplug the AC power adapter from the AC outlet until you have finished
mounting the ISS.
6.
Secure the AC power cable to the fan plate with the supplied cable clip.
+VSIM
MOTOR
+VSIM
+VSOL
+5V
T/H & SIM
TACH
Solar and SIM Power Connectors
(Wireless ISS Only)
Fan Connector
For Future
Tachometer
AC Power Adapter Connector
(Cabled ISS Only)
Temp/Hum Sensor
Connector
Sensor Interface
Module Connector

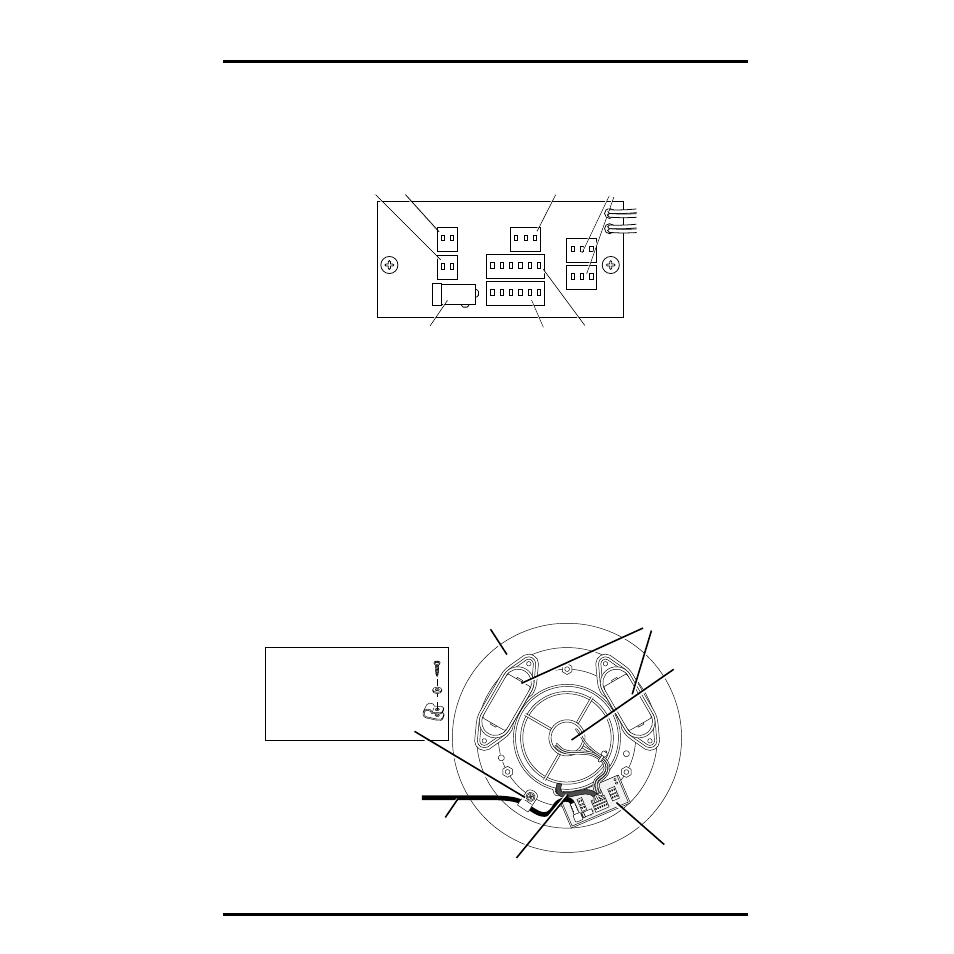

Junction Board Connections
#4 x 1/2" Screw
#4 Flat Washer
Cable Clamp
AC Power-Adapter
Cable
Battery
Compartments
(not used)
Motor
Sensor Cable
Fan Plate
Junction Board
AC Power-Adapter Cable Routing
