Page 6 Terminal Box
Using the Terminal Box to Connect Standard and Shielded SIM Cables
If you wish to use the Terminal Box to splice a shielded 8-conductor cable from
the SIM to the standard 8-conductor cable running to the console, you will
need to determine the wire assignments for the terminal blocks before you
remove the modular connector at the end of the standard cable. To do this, hold
the standard cable, latch lever upward, facing the terminal block, as shown in
the illustration below. The wires in the cable are now in the same sequence as
the terminals. For future reference, write the wire colors into the spaces pro-
vided below if they do not match those of the shielded cable.

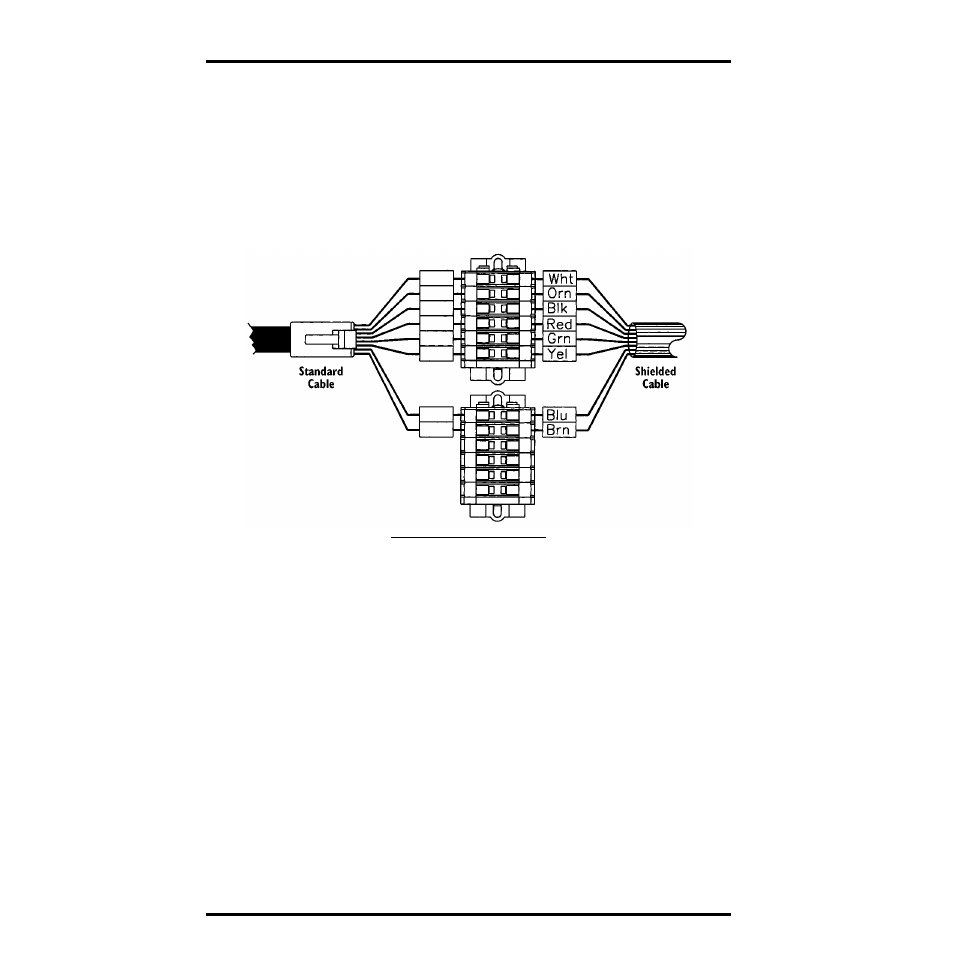

D ETERMINING W IRE A SSIGNMENTS
