DAVIS Solar Power Kit for Non-Vantage Pro Stations User Manual
Page 6

Page 6
Solar Power Kit
I
NSTALLING
THE
B
ATTERY
The instructions below explain how to install the 6.5-Amp-Hour Battery (Davis
Product # 7711).
Installing the Battery in the Complete System Shelter
Follow the instructions below to mount the battery in the Complete System
Shelter (CSS). Note that if you have already mounted the console into the CSS,
you will need to remove it before installing the battery.
1. Slide the individual connectors from the battery cable onto to the battery terminals.
Be sure to connect the red wire to the positive (red) terminal and the black
wire to the negative (black) terminal.

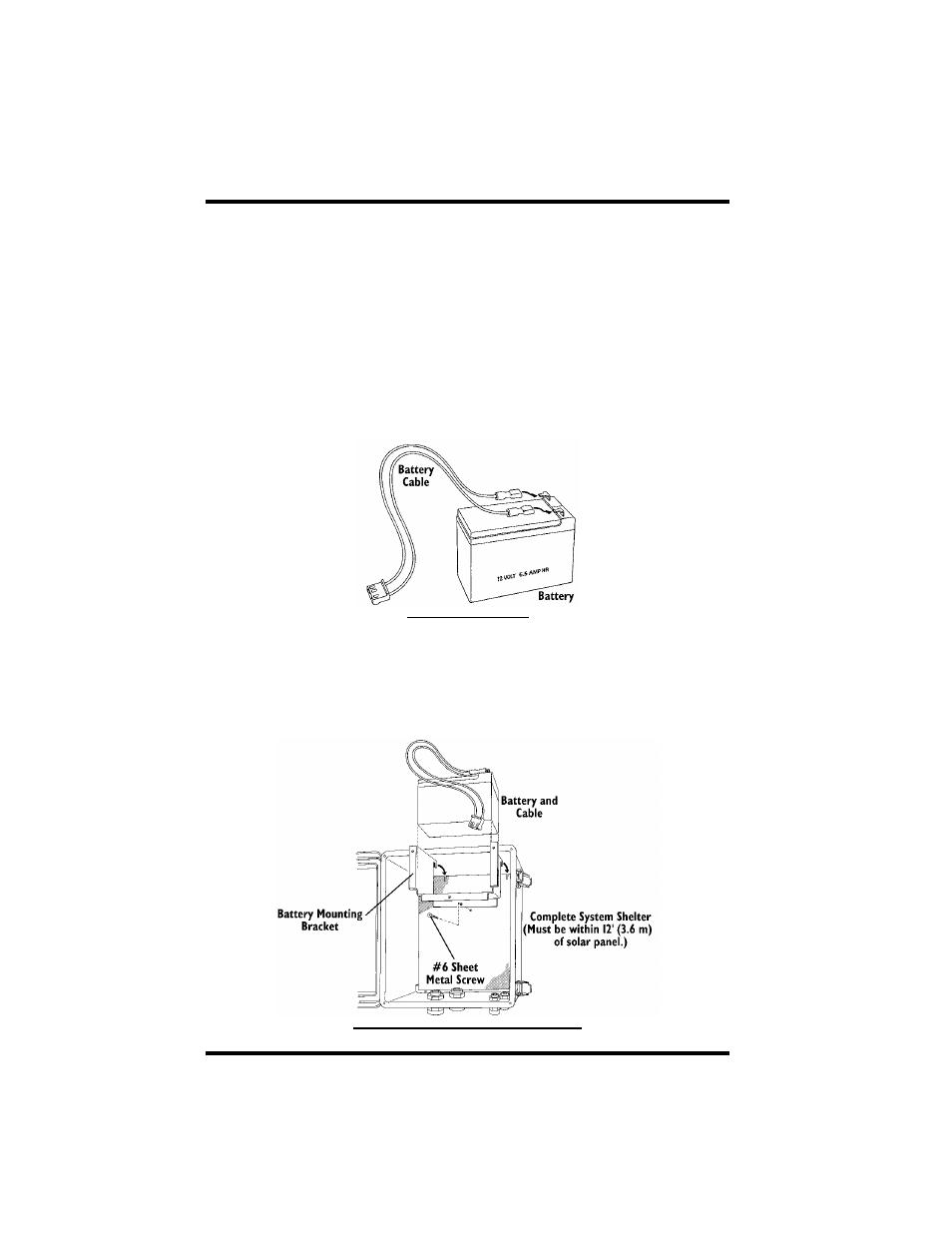

A
TTACHING
B
ATTERY
C
ABLE
2. Secure the battery support bracket to the CSS using the #6 x 1/2” (15 mm) sheet
metal screw as shown below.
Begin by placing the hooks of the support bracket into the slots in the rear
panel of the CSS and pulling the bracket down to seat it.
3. Place the battery on the support bracket with the terminals towards the right.
P
LACING
B
ATTERY
INTO
C
OMPLETE
S
YSTEM
S
HELTER
