Mounting the Solar Panel
Page 11

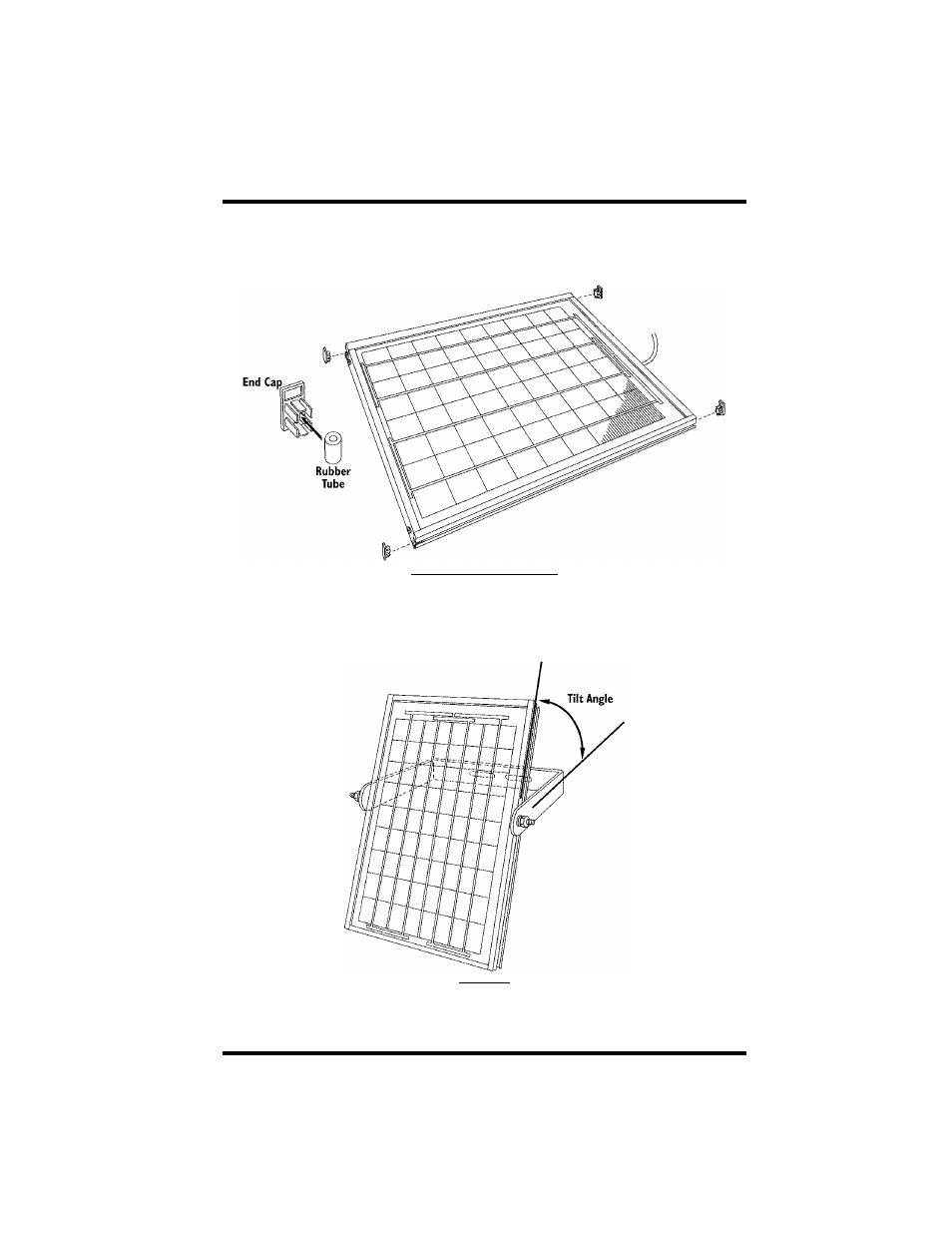

3. Place a rubber tube into each end cap and insert end caps into the solar panel frame.
The tubes should just sit within the end cap. Do not force them all the way
into the end cap.
I
NSERTING
T
UBES
AND
E
ND
C
APS
4. Find the optimum tilt angle for the panel using the table in “Location Tips” on page 5.
5. Using a protractor, adjust the tilt angle of the panel until the angle the panel makes
with the horizontal matches the optimal tilt angle.
T
ILT
A
NGLE
6. Tighten the hex screws on the mounting bracket until the solar panel is securely held
at this angle.
