Mounting the Shelf onto a Wall or Post
Page 5
M
OUNTING
THE
S
HELF
ONTO
A
W
ALL
OR
P
OST
General instructions for mounting onto a wall or a post are included below.

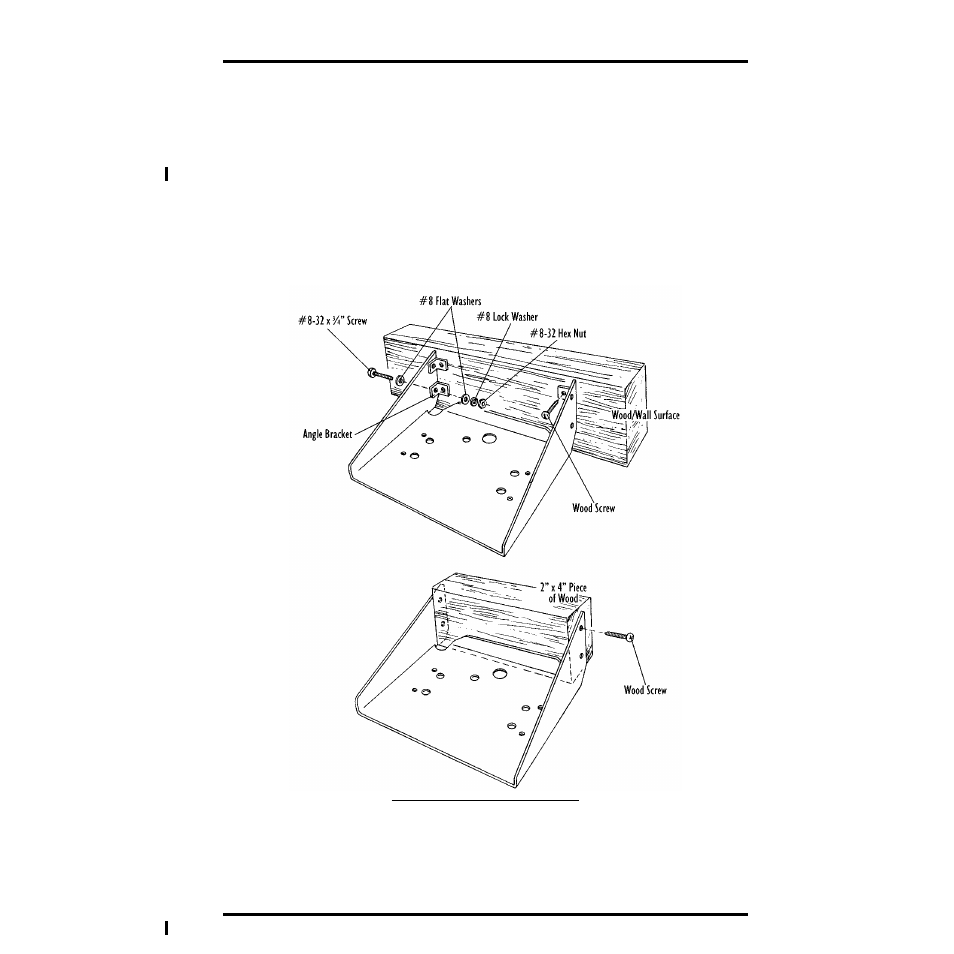

You will need to adapt these instructions to meet your needs. The illustration
below shows the two basic mounting methods.
1. If necessary, attach angle brackets to the shelf using the #8-32 x 3/4" screws, #8 flat
washers, #8 split lock washers, and #8-32 hex nuts provided.
2. Attach the shelf or the angle brackets to the piece of wood or the mounting surface
using wood screws.
3. If necessary, fasten the piece of wood (with shelf) to the mounting surface using four
lag screws.
M
OUNTING
S
HELF
ONTO
A
W
ALL
OR
P
OST
