DAVIS Interface Cable Adapter Module User Manual
Page 8
Product Number: 7760
Davis Instruments Part Number: 7395-109
Interface Cable Adapter Module
Rev. A Manual (7/7/99)
This product complies with the essential protection requirements of the EC EMC
Directive 89/336/EC.
© Davis Instruments Corp. 1996. All rights reserved.

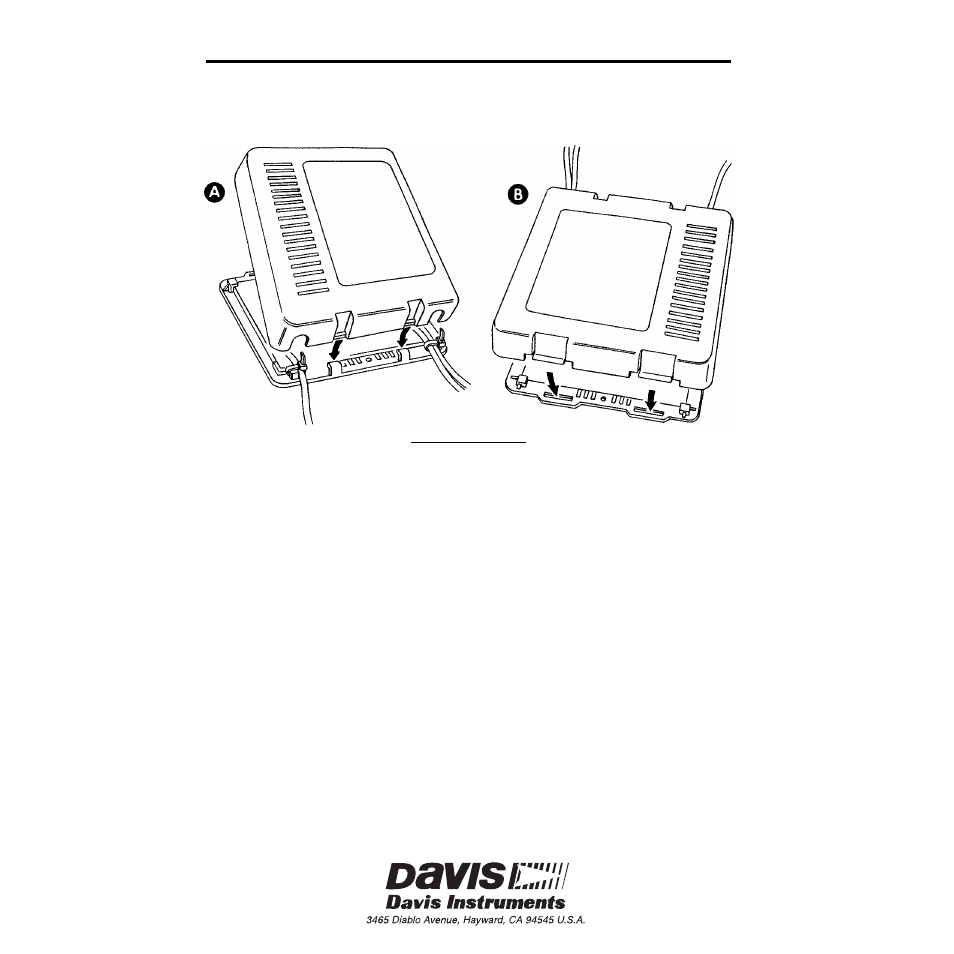

9. Reattach the cover by putting the cover into place (as shown below) and pushing it
onto the base until the tabs on top of the cover snap back into their slots.
Make sure to route the cables out the bottom of the ICAM as shown below.
R
EATTACHING
THE
C
OVER
