Mounting the Interface Cable Adapter Module Page 7
6. For most effective RFI (noise) filtering, connect the spade lug on the ground wire to
the Shield terminal (JP2) and connect the other end of the ground wire to ground. In
most installations, it will be sufficient to use a short piece of the ground wire to con-
nect the Shield terminal (JP2) to the Ground terminal (JP1). In this case, no additional
ground is required.
Choose one of the two grounding options. Do not run one ground wire
from JP1 to JP2 and another from JP2 to ground.

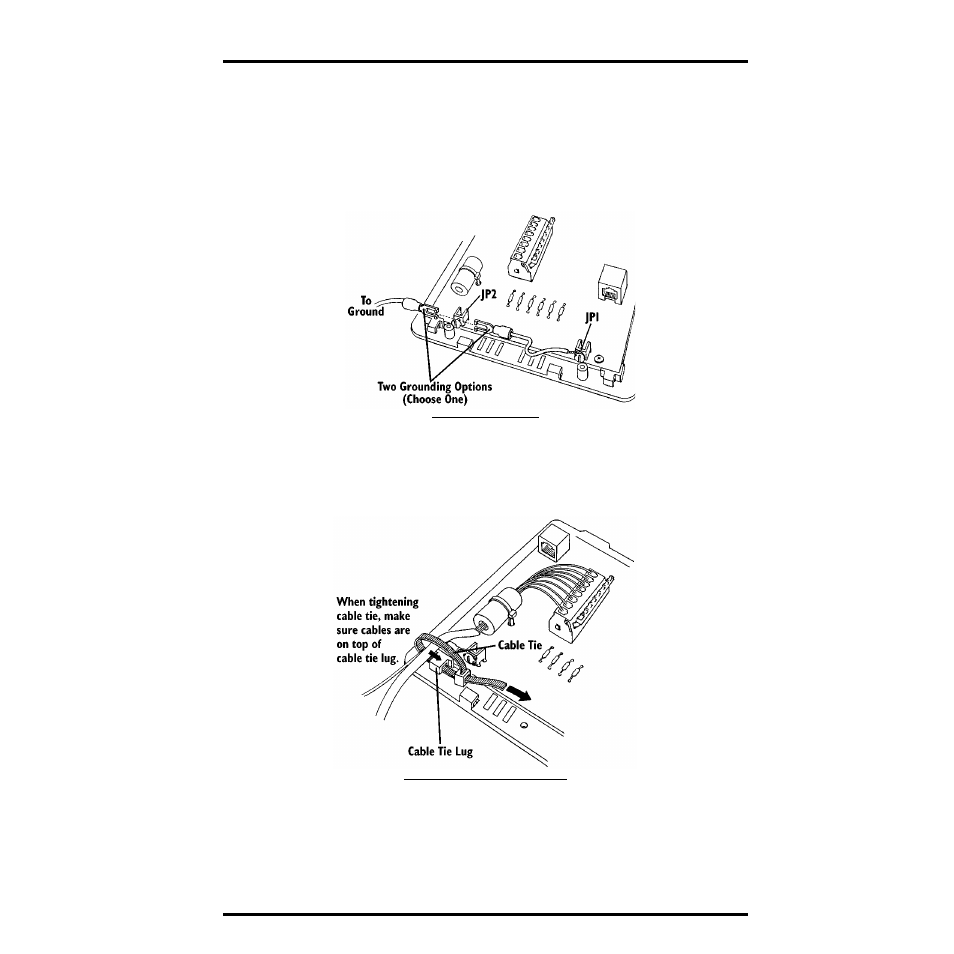

G ROUNDING THE ICAM
7. Gather the cables connected on the left of the ICAM (including the ground wire, if
used) and secure them to the cable tie lug using a cable tie.
Even if you have only one cable, secure it to provide strain relief. When
tightening the cable tie, make sure the cables are on top of the lug.
S ECURING C ABLES TO C ABLE T IE L UG
8. Gather the cables connected on the right of the ICAM and secure them to the cable tie
lug using a cable tie.
Even if you have only one cable, secure it to provide strain relief. When
tightening the cable tie, make sure the cable is on top of the lug.
