Page 6

Page 6
Short-Range Modem Pair

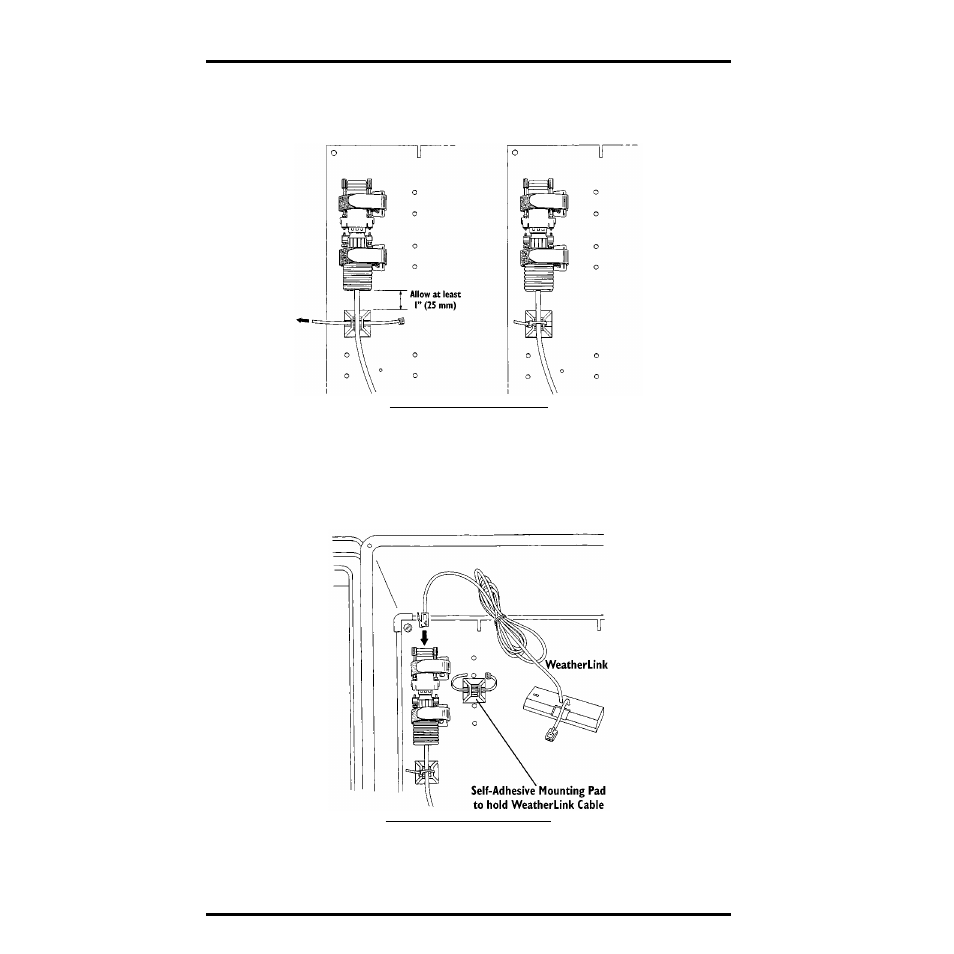

11.Slide a cable tie into the mounting pad and secure the twisted-pair cable to the
mounting pad by tightening the cable tie.
Cut off any excess cable tie.
S
ECURING
T
WISTED
-P
AIR
C
ABLE
12.Reattach the CSS panel to the CSS and insert the console mounting screws into
the panel (consult the CSS instruction for instructions).
13.Plug the WeatherLink cable into the SR Modem Adapter.
14.Attach the second self-adhesive mounting pad onto the CSS panel as shown
below.
A
TTACHING
W
EATHER
L
INK
C
ABLE
15.Connect the WeatherLink to the console and attach the console to the CSS
panel (consult the necessary manuals for instructions).
