Installing the Short Range Modem Pair
Page 5

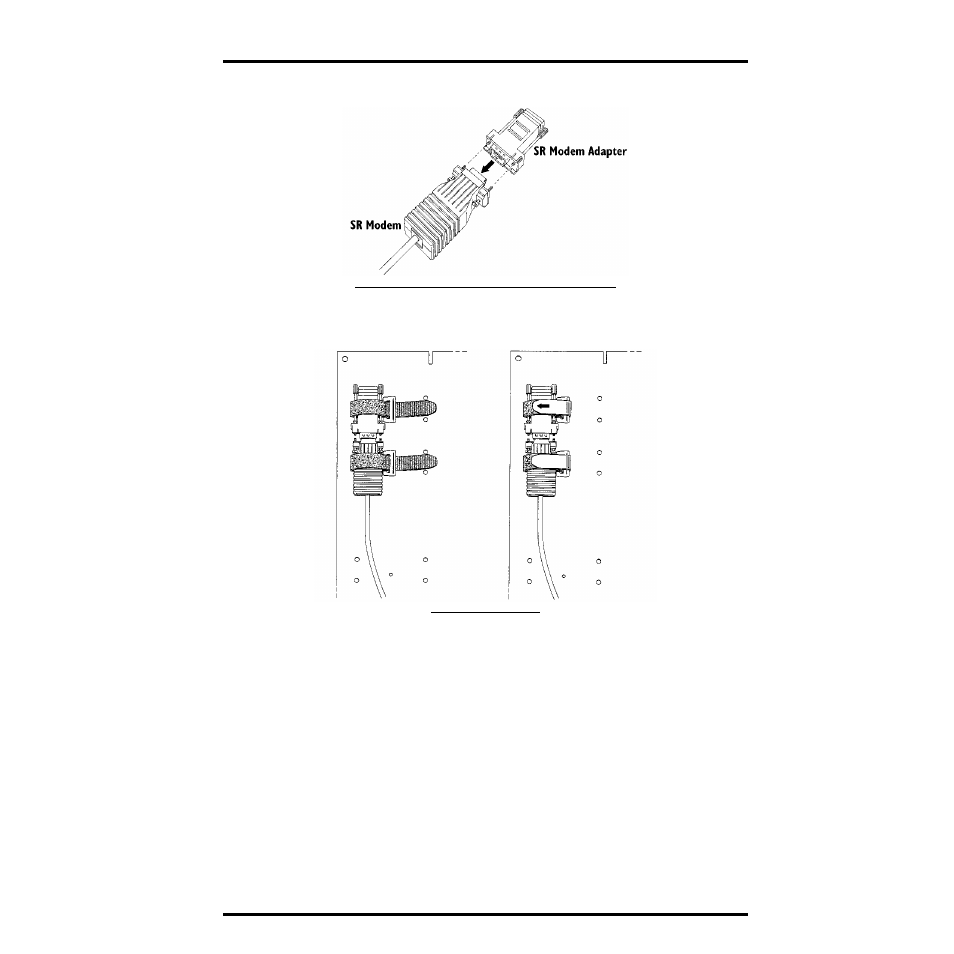

7. Attach the SR Modem Adapter to the SR Modem.
A
TTACHING
SR M
ODEM
A
DAPTER
TO
THE
SR M
ODEM
8. Secure the SR Modem and SR Modem Adapter to the CSS Panel by placing
them on top of the Velcro straps and tightening the straps as shown below.
S
ECURING
SR M
ODEM
9. Place a self-adhesive mounting pad onto the CSS panel below the SR Modem,
allowing at least 1” (25 mm) as shown below.
10.Position the twisted-pair cable over the mounting pad as shown below.
