Standard and Industrial Versions: Installation

Page 5

Typical Industrial Installation

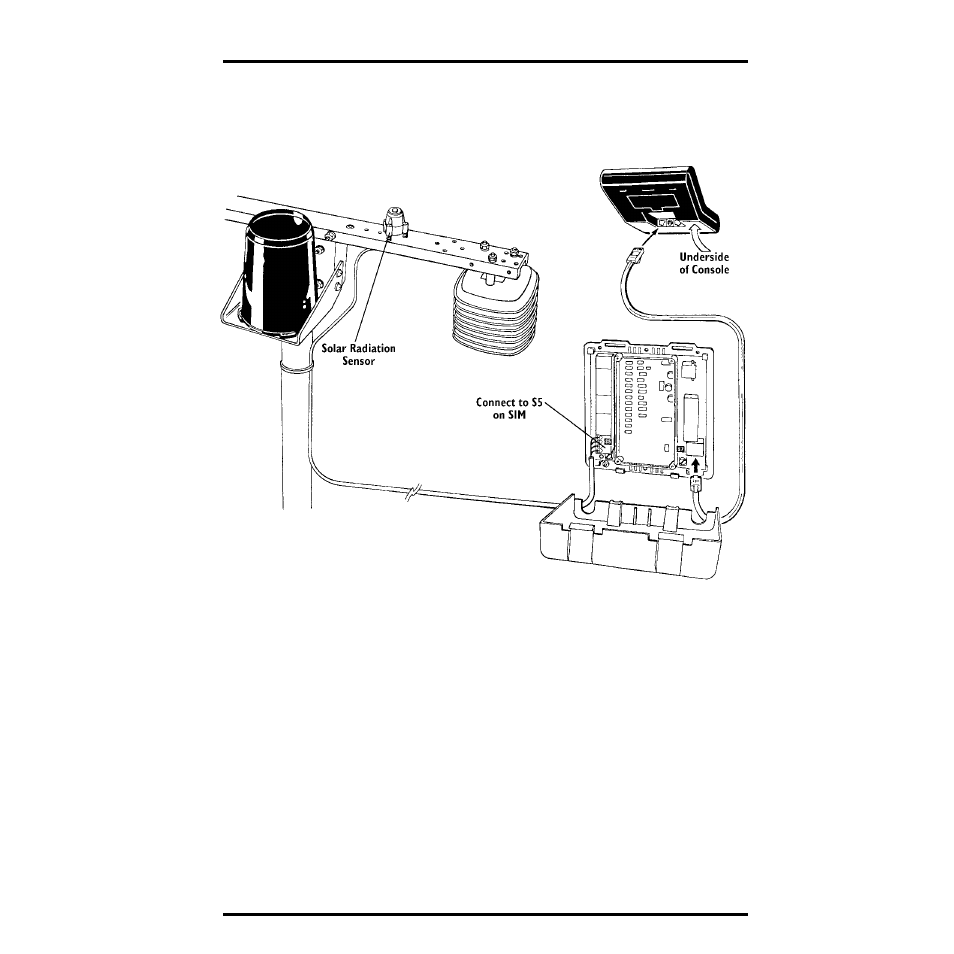

The illustration below shows typical industrial solar radiation installation. The
sensor cable attaches to connector S5 on the sensor interface module (SIM).
