Standard and Industrial Versions: Installation Page 11
7. Secure the sensor to the mounting surface by driving the screws into the appropriate
holes as shown below.

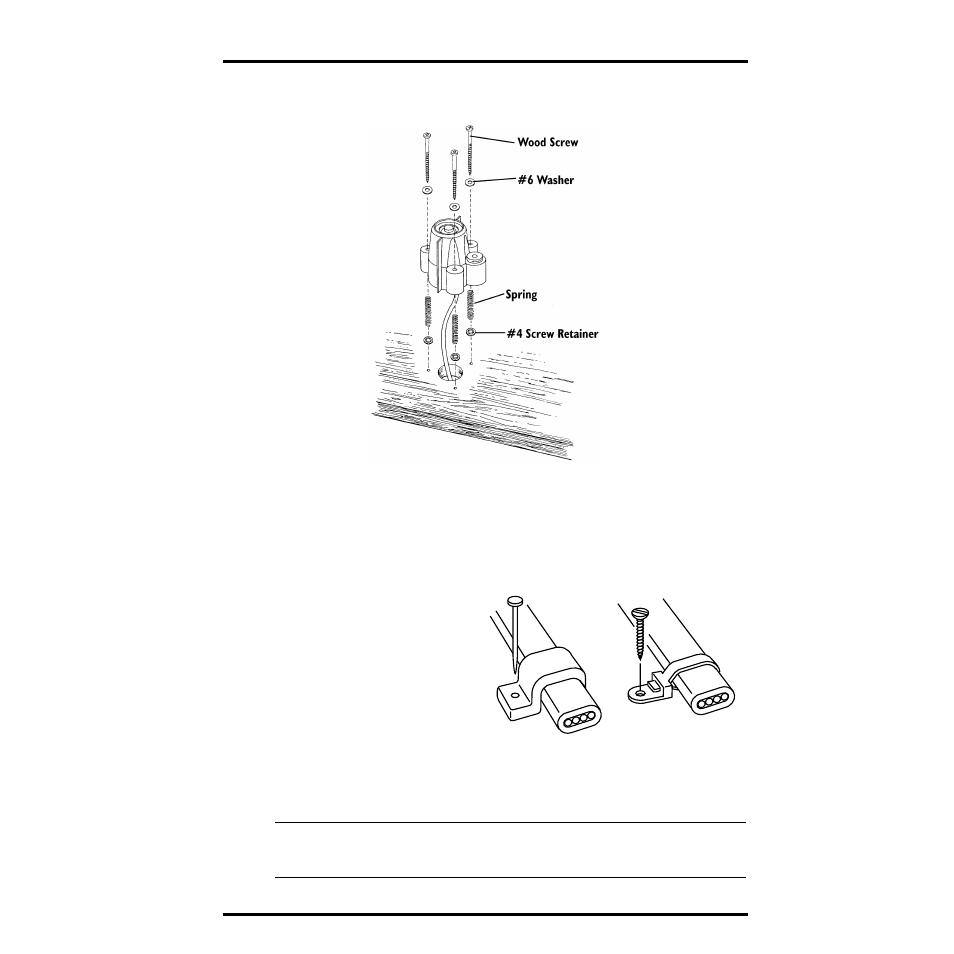

M OUNTING THE S OLAR R ADIATION S ENSOR ON A W OOD S URFACE
8. Using the bubble level on the sensor as a guide, adjust the sensor until it is level by
tightening or loosening the levelling screws as necessary.
9. Secure the sensor cable to the mounting surface. You may use the provided 3/16" cable
clamp, #8-32 x 3/4" screw, #8 hex nut, and #8 flat washer if possible.
Routing Sensor Cable
To prevent fraying or cutting of the
cable where it is exposed to
weather, secure it so it doesn’t
whip about in the wind. Use cable
clips or weather resistant cable ties
to secure the cable. Place clips or
ties approximately every 3 to 5 feet
(1 to 1.6 m). Do NOT use metal sta-
ples or a staple gun to secure
cables. Metal staples—especially
when installed with a staple gun—
have a tendency to cut the cables.
Note: Try not to tug on the cable in such a way as to loosen the connections between cables. Also,
make sure the sensor cable is not so taut that connections loosen or pull free due to the
strain. Many sensor problems occur because cable connections come loose.
Cable Clip
Cable Tie
