7
Modularized Cable Management:
Users can optimize the cables arrangement within the chassis by using only what
users need. This feather increases the airflow and reduces the overall ambient
temperature within the chassis, also improves the overall look and tidiness of the
system.

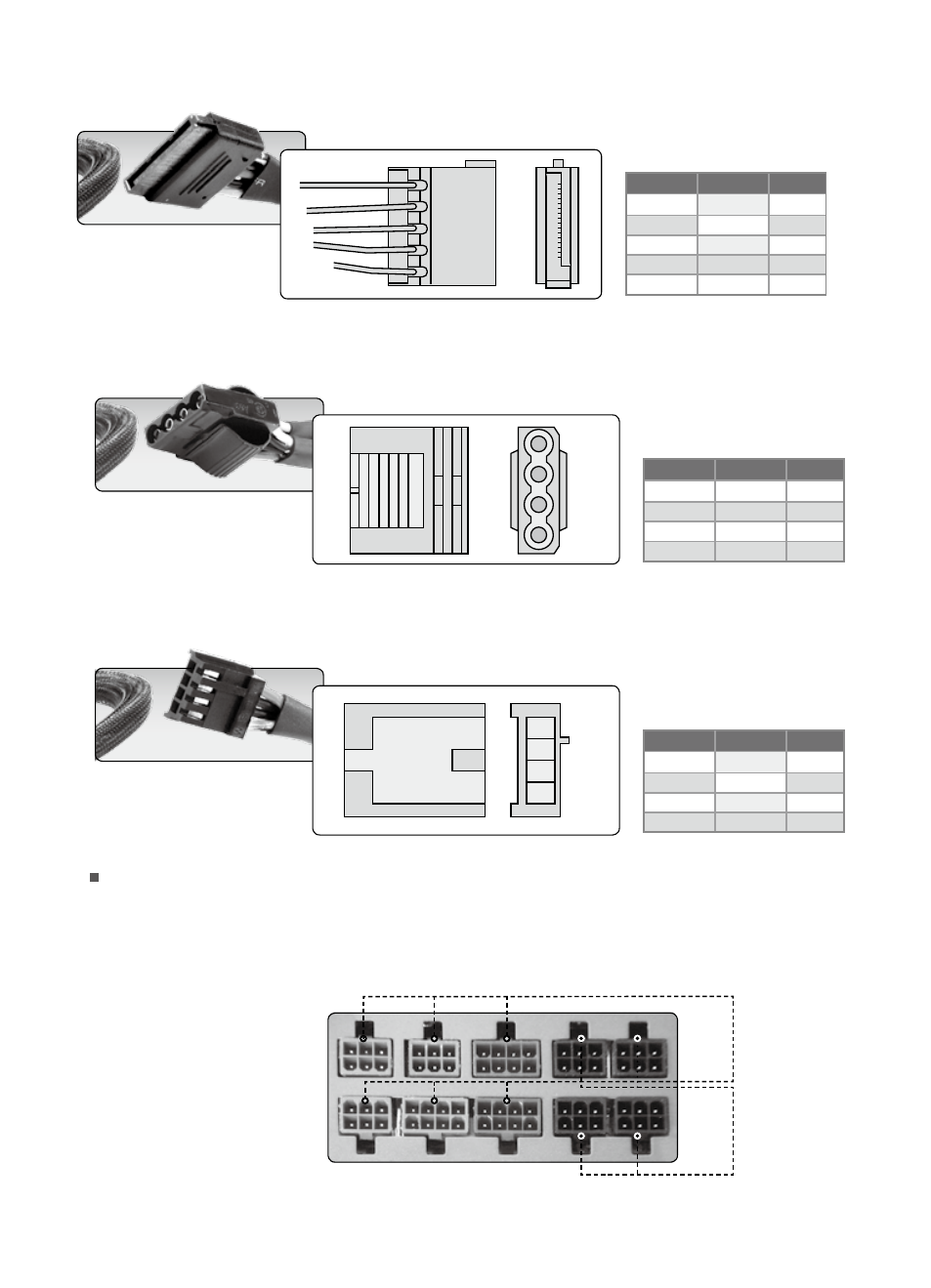

f. SATA Connector (5 pin)
Support the new generation high-speed SATA devices
Color Signal Pin
Yellow +12VDC 1
Black COM 2
Red +5VDC 3
Black COM 4
Orange +3.3VDC 5
g. Peripheral Connector (4 pin)
Support IDE/SCSI (HDD/CD/DVD..etc) devices
Color Signal Pin
Yellow +12VDC 1
Black COM 2
Black COM 3
Red +5VDC 4
1
4
h. Floppy Disk Connector (4 pin)
Support Floppy Disk and some other additional devices
Color Signal Pin
Red +5VDC 1
Black COM 2
Black COM 3
Yellow +12VDC 4
1
4
PCI-Express
Connector
SATA,
Peripheral,
and Flopp
Connector
Embedded Socket and
Modularized Cable
Management Design:
PCI-Express Connector
SATA, Peripheral, and
Floppy Connector
