6

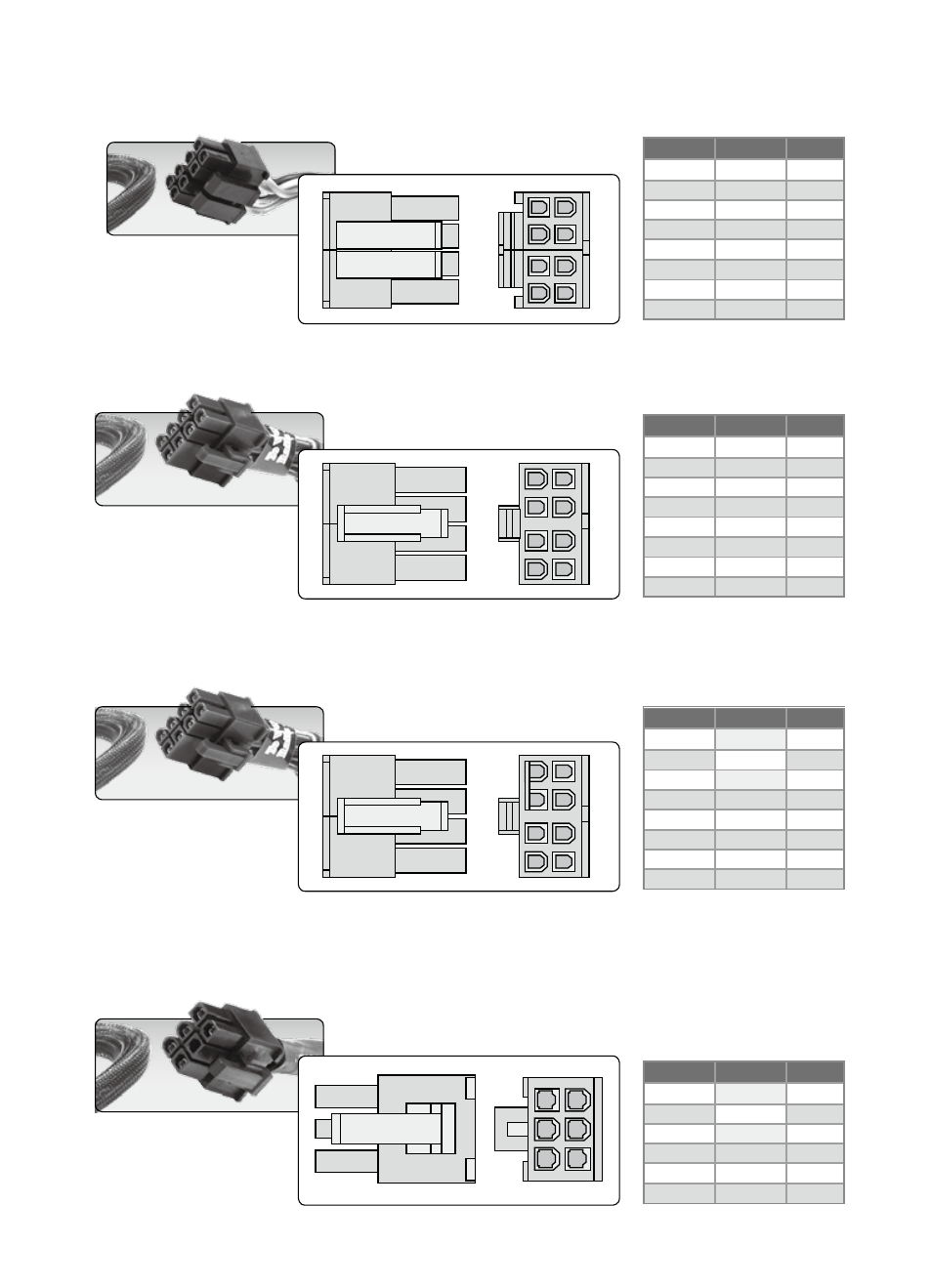

c. CPU Connector (8 pin)
Support the latest 8 pin Quad Core system motherboard
Color Signal Pin
Black COM 1
Black COM 2
Black COM 3
Black COM 4
Yellow +12VDC 5
Yellow +12VDC 6
Yellow +12VDC 7
Yellow +12VDC 8
5
6
7
8
4
3
2
1
d. PCI-E Connector (8 pin)*
Support next generation 8 pin sockets on high-end graphic cards and can support the
existing 6 pin sockets by connecting to the 8 pin to 6 pin converter.
Color Signal Pin
Yellow +12VDC 1
Yellow +12VDC 2
Yellow +12VDC 3
Black GND 4
Black GND 5
Black GND 6
Black GND 7
Black GND 8
4
3
2
1
5
6
7
8
e. PCI-E Connector (6 pin)*
Support the latest high-end graphic cards with 6 pin socket
A 6 pin & a 8 pin PCI-E connectors can be connected to the same graphic card if there are two 6 pin sockets
or both 8 pin socket and 6 pin sockets available on the card. Please refer to Section 6.2 for more information.
Color Signal Pin
Yellow 12VDC 1
Yellow 12VDC 2
Yellow 12VDC 3
Black COM 4
Black COM 5
Black COM 6
6 3
4 1
b. CPU Connector (4+4 pin)
Support both dual CPU and single CPU systems by simply combining (8 pin) or splitting (4 pin X 2)
the connectors
Color Signal Pin
Black GND 1
Black GND 2
Black GND 3
Black GND 4
Yellow +12VDC 5
Yellow +12VDC 6
Yellow +12VDC 7
Yellow +12VDC 8
5
6
7
8
4
3
2
1
