9
G
+12V Rail Distribution & PCI-E Connectors
+12V Rail Distribution PCI-E Connectors and+12V
Rails Distributio
P l e a s e c a r e f u l l y r e a d t h e t a b l e a n d
suggestions below when connecting the 6
pin/8 pin connectors to your graphic card(s),
especially when there are more than one PCI-E
sockets available on your card(s).
1 2 3

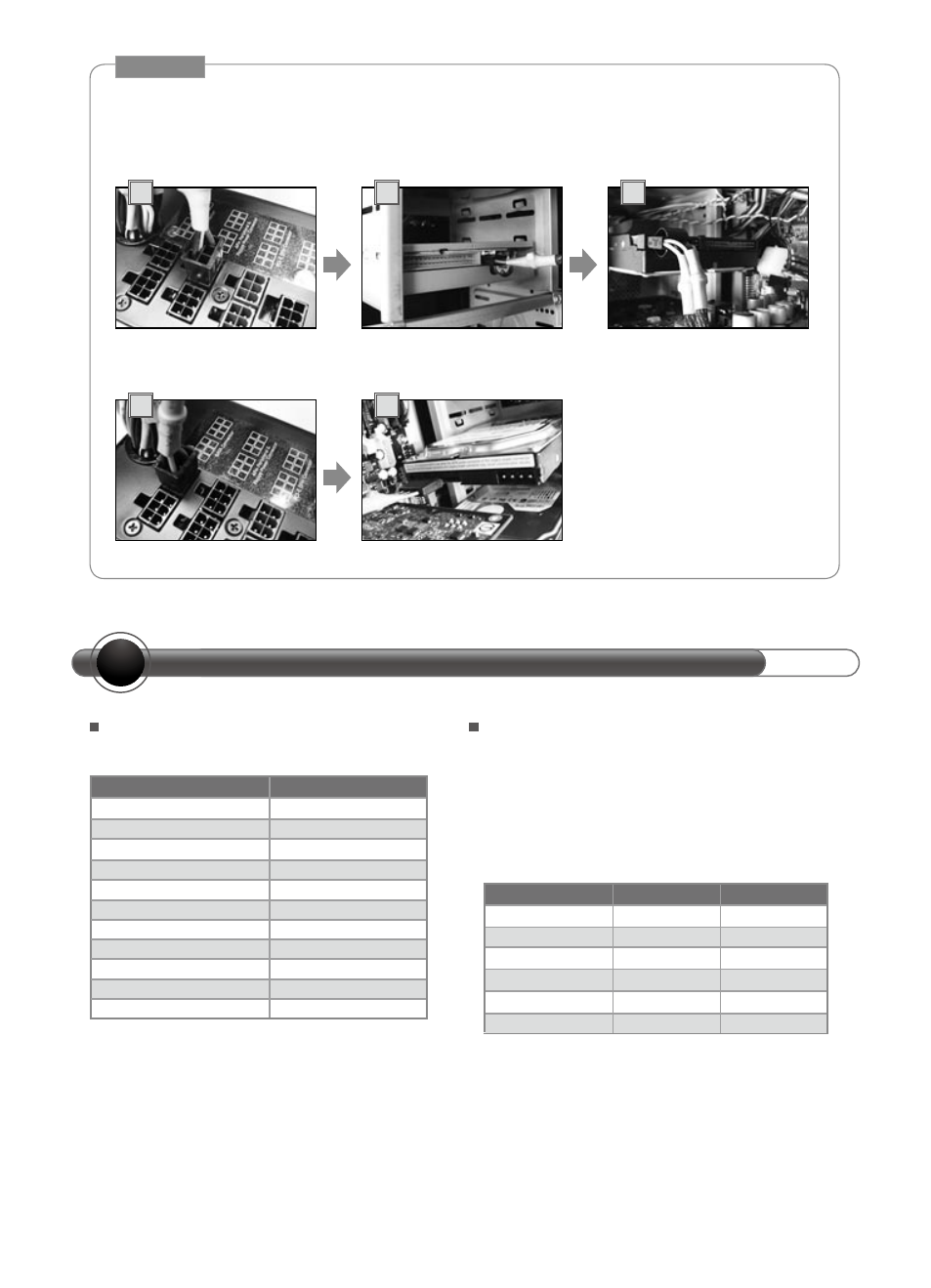

Connect the 4 pin power connector to peripheral devices such as DVD-Burner,
hard drive, and etc. In addition, a user can connect the 3-pin floppy power
connector to connect the floppy drive
STEP 4
1 2
If there are S-ATA hard disk drives present, there are also Serial ATA connectors available.
NRP-MC
24 pin + 12V 12V1
4+4 pin + 12V 12V2
8 pin + 12V 12V2, 12V3
Peripheral & Floppy 12V1
S-ATA 12V1
6 pin Modular PCI-E 12V3
6 pin Modular PCI-E 12V3
6 pin Modular PCI-E 12V4
8 pin Modular PCI-E 12V3
8 pin Modular PCI-E 12V4
8 pin Modular PCI-E 12V4
12V3 12V4
6 pin X
6 pin X
6 pin X
8 pin X
8 pin X
8 pin X
Please be noticed that when trying to connect
more than one connector to a graphic card,
it is strongly recommended to choose the
connectors from exactly the same +12V rail.
