Lokar Column Shift Linkage For Ford AOD, 4R70W, and AODE User Manual

Page 4

INS0061 Rev. 04/28/14

Page 4

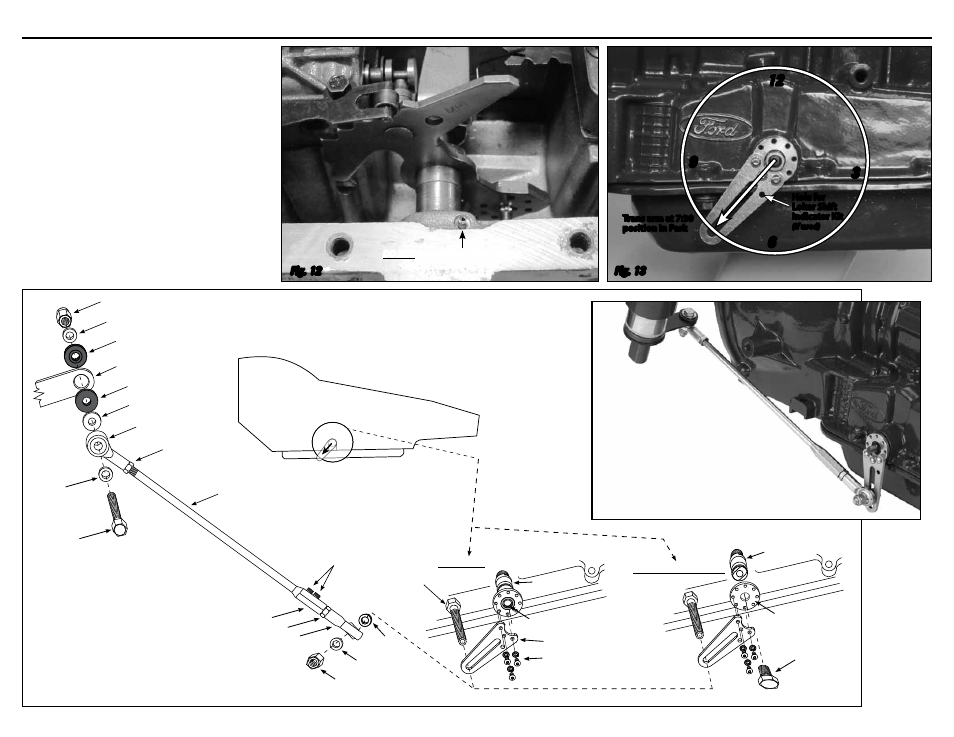

Transmission

(not included)

AODE, 4R70W Only

AOD Only

Steering Column Arm

(not included)

Delrin® Bushing

5/16" -24 x 1-1/2"

Hex Head Bolt

Small Flat

Washer

Large Flat Washer

Small Flat Washer

Jam Nut

5/16" x 21"

Stainless

Steel Rod

5/16" x 24" x 1-1/4"

Bolt

Flat Washer

Nylock Nut

Set Screws

T.V. Seal

Flange

3/8-16 x 3/4"

Lock Bolt

Selector Shaft

Trans Arm

#8-32 x 3/8" Button Head

Screws & Lock Washers

Hex Connector

5/16"-24 F emale Rod End

5/16"-24 Female Rod End

Jam Nut

Fig. 12

Fig. 13

Step 19: Slide the hex connector with the second 5/16"-24 female rod

end onto the end of the stainless steel rod. Attach the rod

end to the adjustable trans arm with the 5/16"-24 X 1-1/4"

hex head bolt, two flat washers, and nylock nut as shown

Fig. 14. Tighten the set screws in the hex connector

using a 1/8" hex wrench, but only enough to mark the

stainless steel rod and hold the hex connector in place

during the adjustment procedure.

Step 20: Adjust the column shift linkage so that the shift lever will

enable you to get the transmission into all gear ranges.

Once you have the final adjustment done, tighten the jam

nuts at both ends of the stainless steel rod.

Step 21: Disconnect the stainless steel rod from the hex

connector and grind two small flat spots on the rod

where each of the set screws contact it (this will help

maintain the position of the rod). Apply thread locking

compound (not supplied) to the set screws, and then

install and tighten them.

See

Fig. 15 for a completed installation.

DO NOT drive roll pin all the way in!

Trans arm at 7:30

position in Park

Hole for

Lokar Shift

Indicator Kit

(if used)

Fig. 15

Fig. 14

Transmission shown with

Shifter in overdrive position

Column Shift Linkage Installation Instructions for Ford AOD, 4R70W, and AODE
