Lokar Cable Operated Sensor Kit Installation Instructions

Lokar Cable Operated Sensor Kit Installation Instructions

For GM TH350, TH400, TH200, 200-4R, 700-R4, 4L60 (and 4L60E,

4L80E with Long Selector Shaft)

INS0033 Rev. 05/08/14

Page 1

© 2014 Lokar, Inc.

General Installation Notes:

Please read instructions completely before beginning installation. If

you have any questions please call.
Before starting installation, use wheel chocks to block the wheels.

Do not attempt to install this product while the engine is running.

Disconnect the negative battery cable before beginning installation.
Make sure the engine, transmission, and frame are properly grounded.

We recommend applying anti-seize lubricant to all aluminum threads

before final assembly.

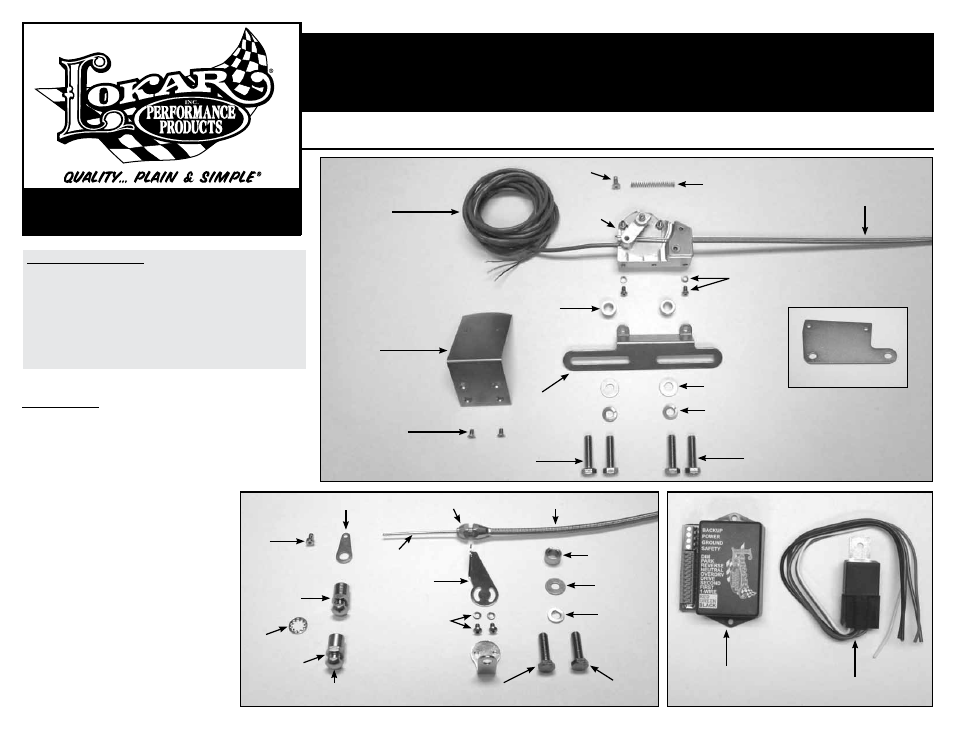

Refer to Fig. 1, 2 and 3 for the component names.
MOUNTING OPTIONS:
The Lokar Cable Operated Indicator Kit is equipped to

mount the sensor either on the transmission using the attached bracket, or

in a remote location within 5 feet of the transmission selector shaft using the

provided universal sensor bracket.
To mount the sensor remotely inside the vehicle, a Lokar Remote Mounting Cable

Kit (part # CINR-1796) will be required. This extends the cable 7 feet, for a total

of 12 feet.
The decoder box should always be mounted inside the

vehicle and out of the elements.
When installing the sensor and sensor bracket directly

on the transmission, they can be installed on either

side (all except TH400 transmissions). Installation on

the right hand side is recommended, because it

provides more room to get the cable straight in line

with the selector shaft trans arm.

(NOTE: On a 700-R4,

it may be necessary to remove the factory hex head 1/4"

pipe plug and install a socket head style pipe plug. Fig. 4)
On a TH400, the sensor and sensor bracket must be

mounted on the right hand side of the transmission or

in a remote location.
Step 1: Assemble the upper and lower parts of the

adjustable cable mounting bracket, installing

two #8-32 x 5/16" button head screws and

lock washers using a 5/32" Allen wrench, but

do not tighten the screws fully yet.

Fig. 5

For GM TH350, TH400, TH200, 200-4R, 700-R4, 4L60 (and 4L60E, 4L80E with Long Selector Shaft)

Fig. 1

Fig. 2

Fig. 3

200-4R Sensor Bracket

Wiring
Harness

Universal
Mounting
Bracket

#8-32 x 5/16"
Flat Head Phillips
Screws

5/16"-18 x 1-1/4"
Hex Head Bolts

Sensor Bracket

(All except 200-4R)

Spacers

Indicator Trans Arm

Index

Cable

Stop

3/8" Trans

Arm Nut with

Standoff Bolt

3/8" Internal

Star Washer

(Note nicks in hex)

10mm Trans Arm Nut

with Standoff Bolt

Adjustable Cable

Mounting Bracket

(lower)

#8-32 x 5/16" Button

Head Screws with Lock

Washers

Adjustable Cable

Mounting Bracket

(upper)

Inner Wire

Adjuster Nut

Cable Housing

Spacer

Decoder Box

Neutral Safety Relay

5/16" Flat

Washer

5/16" Lock

Washer

5/16"-18 x 1-1/4"

Hex Head Bolt

M8 x 30mm Hex

Head Bolt

5/16" Flat Washers

5/16" Lock Washers

M8 x 30mm Hex Head Bolts

Sensor

Index Cable Stop

Spring

Cable Housing

#8-32 x 5/16" Button Head Screws
with Lock Washers
