General Installation Notes:

Please read instructions completely before beginning installation. If you
have any questions please call.

Before starting installation, scotch vehicle tires to avoid accidental
movement of the vehicle. Disconnect negative battery cable before
beginning installation.

Make sure the engine, transmission, body and frame are properly
grounded.

Refer to Fig. 1 for the component names.
Tools and Materials Required:

• Allen wrenches: 1/8", 5/32", 3/16", 7/32", 6mm

• Wrench or Socket Sizes: 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 7/8", 15mm

• Tape Measure

• Metal cutting tool, such as a hacksaw or a die grinder with a cut-off wheel

• Ohmmeter

• Wire cutters/strippers

• Wire crimping or soldering tools

• Blue thread locking compound

Lokar Shifters are designed to fit specific transmissions. Before installing the shifter,
verify that you have the proper model for your transmission. If your shifter does not
seem to fit properly, do not make modifications during installation as this may void
your warranty. Call for assistance.

Verify that the shifter length you have purchased is what you actually want. When
installed, the bottom of the shifter lever will be approximately 3-1/2" - 4" above the
transmission case. From that point up to the top of the knob is how the shifter length
is determined.
If you mount the shifter all the way forward on a 700-R4 or a 4L60, using the four bolt
holes at the very front of the main plate, a bell crank kit (Lokar Part No. S-6999*, sold
separately) will be required.
(*S-6999 is for a mechanical speedometer output only – if your transmission has
an electronic speedometer output and you need a bell crank kit, call Lokar for
assistance)
Before attempting to make any adjustments, the shifter must be installed on the
transmission and the transmission should be installed into the vehicle.

TOLL FREE 1-877-469-7440 • [email protected] • www.lokar.com

®

700-R4 , 4L60, and 4L60E Automatic Trans Mount Shifter

Installation Instructions

700-R4 , 4L60, and 4L60E Automatic Trans Mount Shifter

Installation Instructions

INS0081 Rev. 11/12/13

Page 1

© 2013 Lokar, Inc.

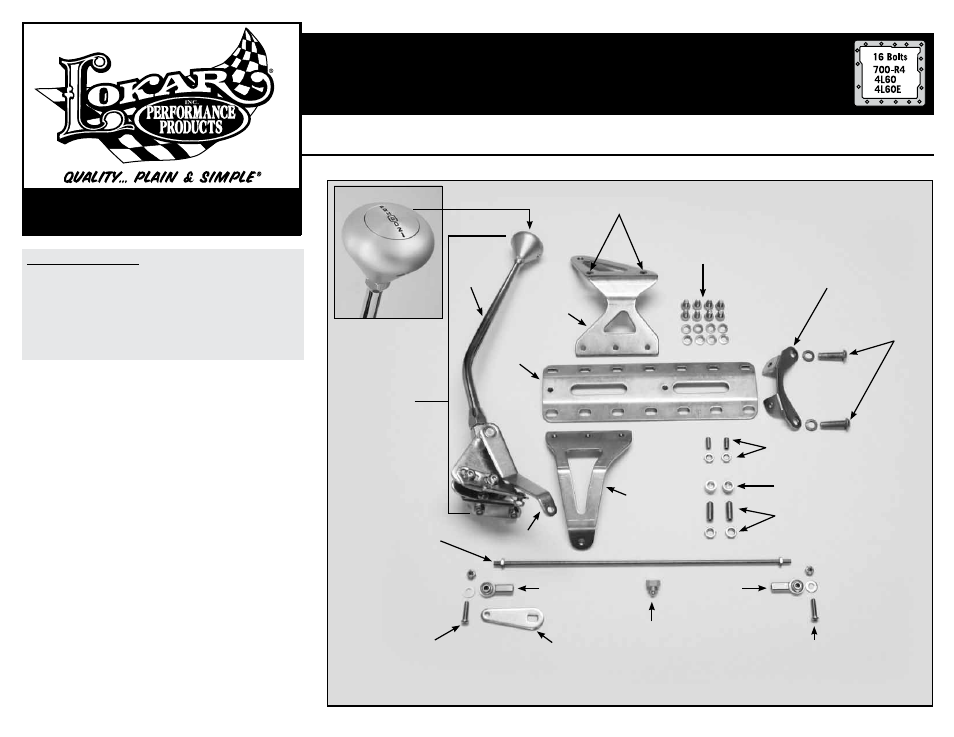

Fig. 1

Shifter

Lever

Shifter

Assembly

Shifter

Knob

Right Side

Bracket

Optional Handbrake

Mounting Location

Main

Plate

Rod

End

Rod

End

1/4"-28 x 1" Button Head

Bolt with Flat Washer and

Nylock Nut

1/4"-28 x 1" Button Head

Bolt with Flat Washer and

Nylock Nut

3/8"-24 x 1" Tension Set

Screws and Jam Nuts

M10 x 35mm

Button Head Bolts

& Lock Washers

Rear Mounting Bracket

(Note: 4L60E shifter comes with

2 brackets, see text for details)

5/16"-24 x 1/2"

Button Head Bolts

and Lock Washers

5/16"-24 x 5/8" Tension Set

Screws with Jam Nuts

Side Mounting Buttons

Trans

Gear

Lever

Left Side

Bracket

Aluminum

Adjuster Plug

Quad

Lever

Threaded Rod with

1/4"-28 Jam Nuts

Release Button
