Ag Leader John Deere 8XXX series Wheel Angle Sensor Installation - Manual (Page 5)

ADT Jan 2013
New Option as of 2/25/2013:

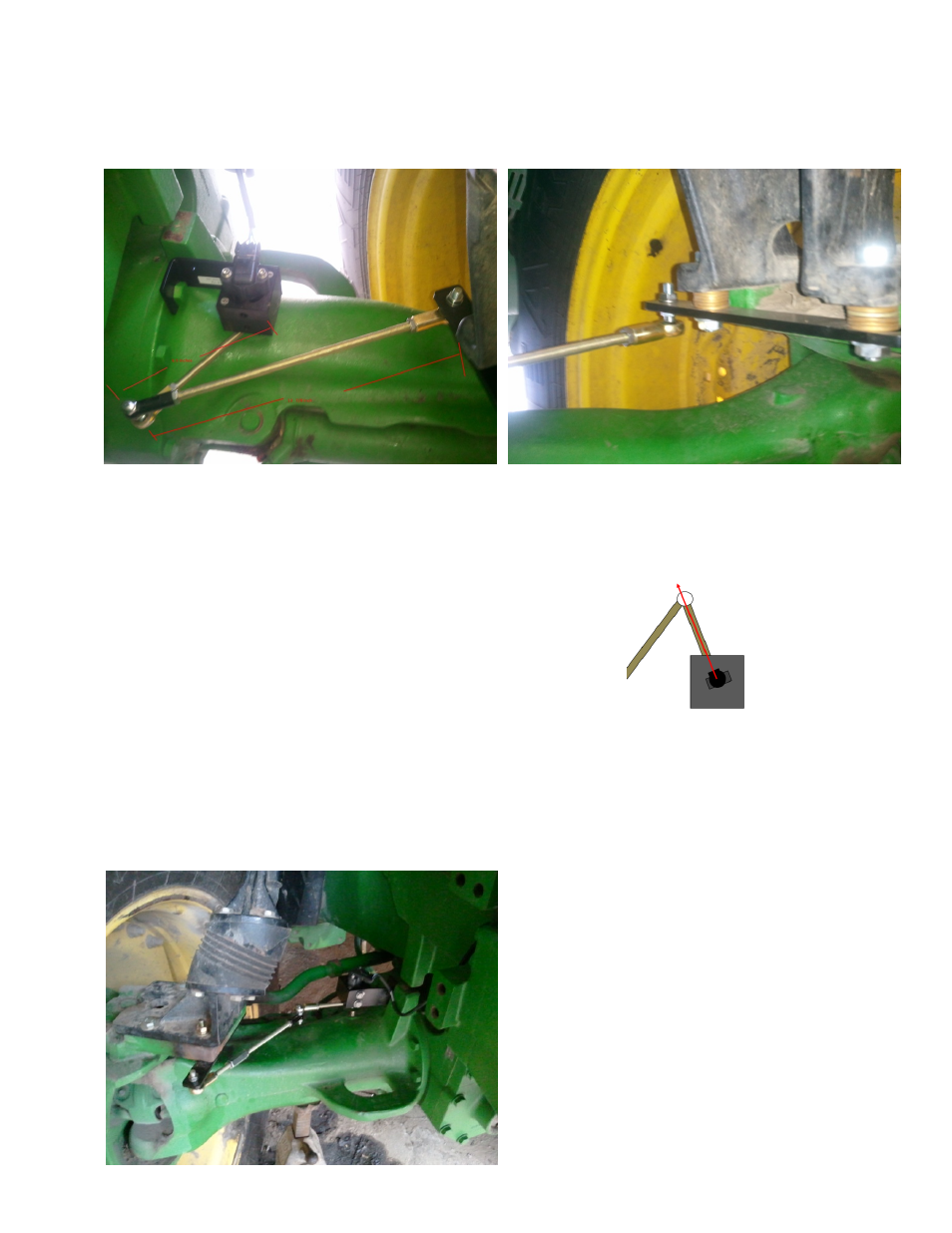

Rod measurements:
Short Rod – 6 ½ Inch ‐ The short rod will not be at a right angle and the potentiometer will
need to be lined up with the short rod while the wheels are at center.
Long Rod – 13 ⅞ Inch
You can see that the bracket needs to be spaced down with washers about 1”.
 If the fender bracket sits flush on the steering knuckle then you will need to remove the
two bolts on the inside of the bracket nearest the tractor. Then two longer bolts will go
through the existing bolt holes to hold the Wheel Angle Sensor Rod bracket to the
steering knuckle; see picture below.
