Ag Leader John Deere 8XXX series Wheel Angle Sensor Installation User Manual

Page 3

background image





ADT Jan 2013

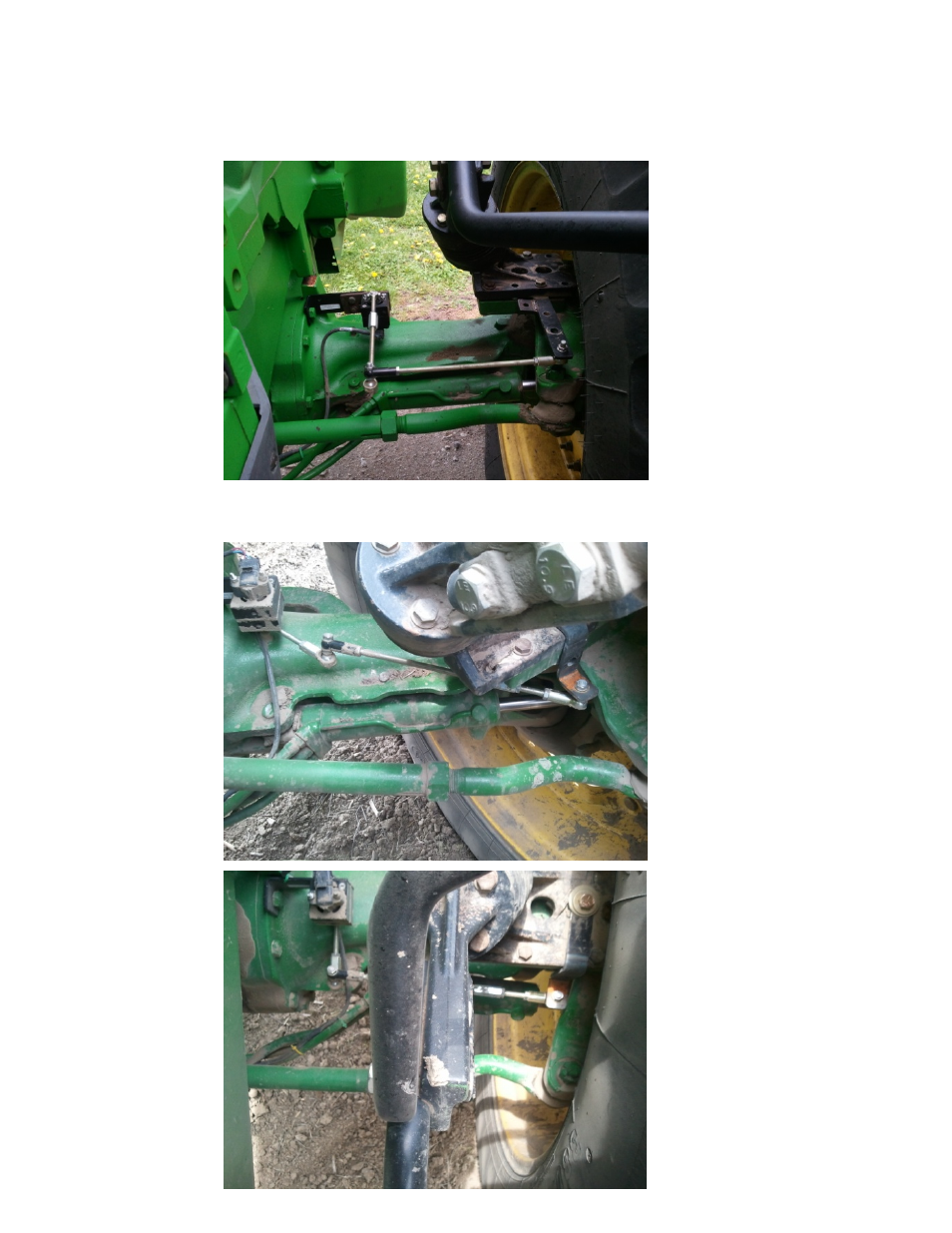

The first picture is a good example of how to get the rods in the right position.  The only thing to note is
that the potentiometer and the wires are below the wheel angle sensor block and will be more likely to
be damaged.















The next two sets of pictures show how dealers have made brackets to allows proper range of motion
and keep the rods from hitting the steering knuckle.

1.
