GS-900 Radio Kit Installation Instructions 7

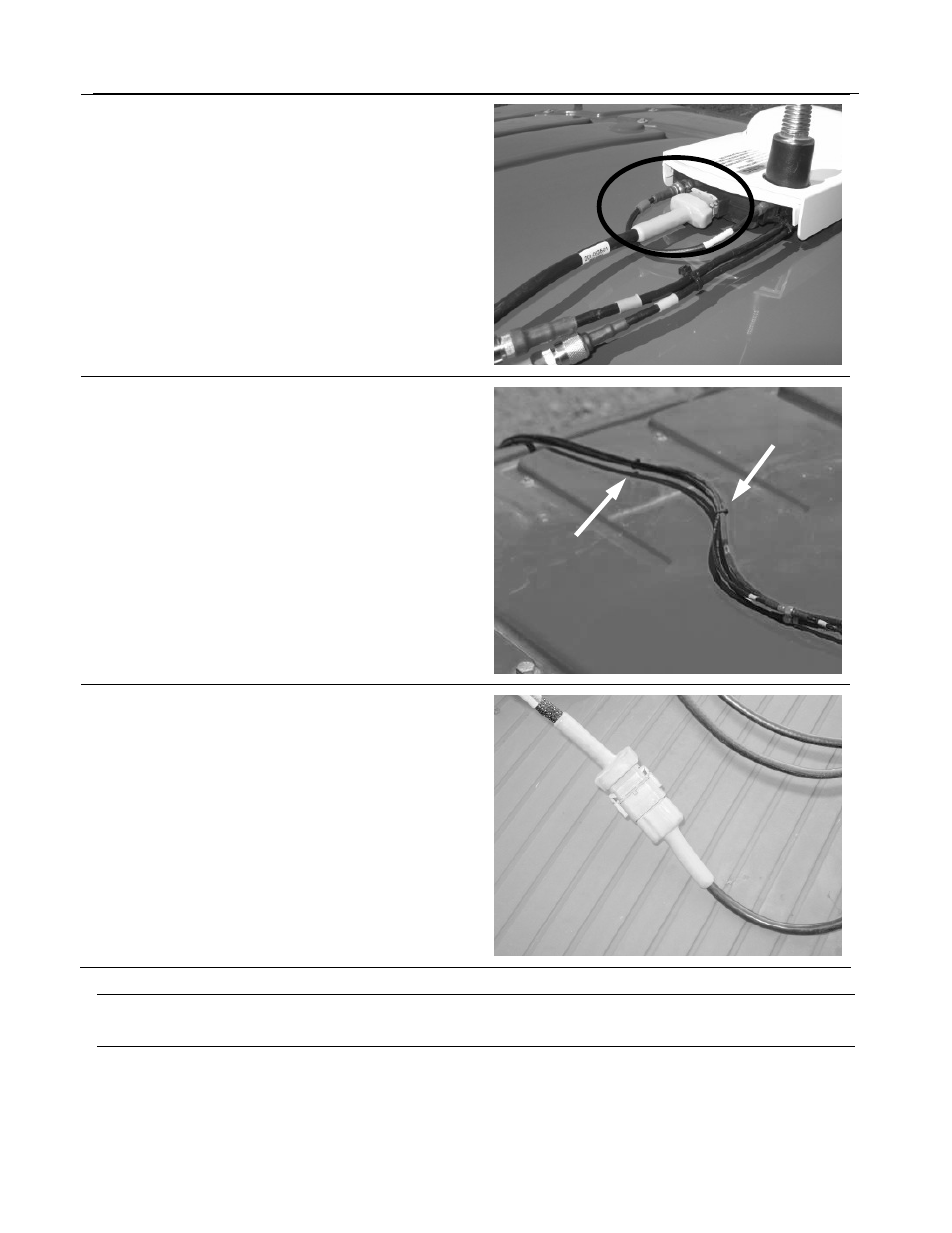

11. Attach the Power and Data Extension Cable (PN 201-0535-
01) to the rear of the GS-900 radio assembly. The
connectors have keys and will only engage in the correct
orientation. If the connector does not engage, check the
orientation. To avoid possible damage, never force the
connector.
Note: To disconnect the cable from the radio, press the two side
latches on the cable connector and pull away from the radio.
12. Route Power and Data Extension Cable with the GeoSteer
coaxial cables running to the GeoSteer Control Unit.
13. Bundle the cables together every 12” (30cm) using the
cable ties provided. Use a wire cutter to trim.
14. Attach the Power and Data Extension Cable to the
EXPANSION connector of the GeoSteer Main Cable
Harness.
Note: In order for the GS-900 Radio to receive a correction signal, it must be set to the matching channel of its intended base
station. Refer to the GeoSteer User Manual for instructions on setting the radio channel.
