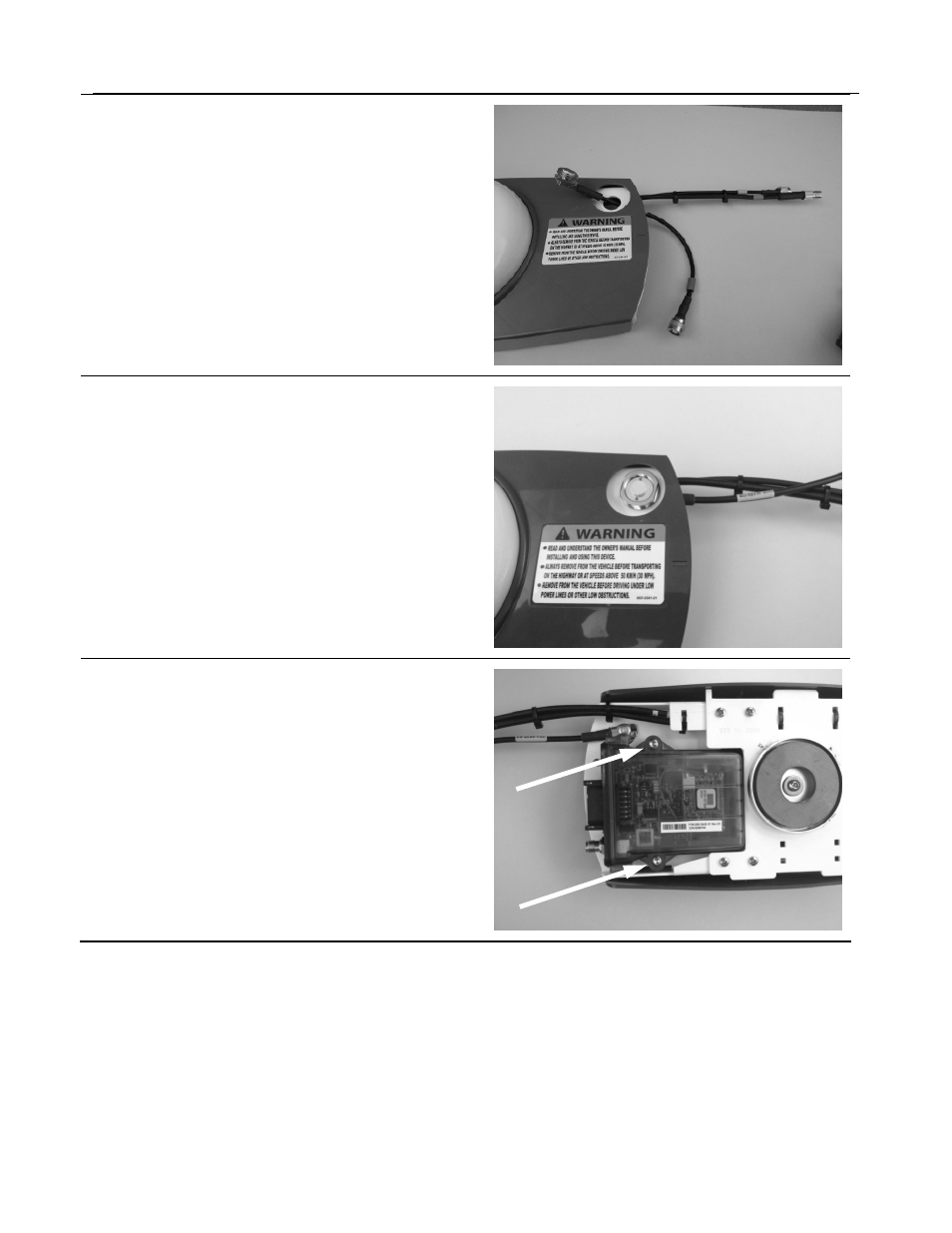

GS-900 Radio Kit Installation Instructions

5

3.

Feed the RF Radio NMO 10" cable through the top of the
GeoDock assembly and then out the rear next the existing
cables.

4.

Secure the RF Radio NMO 10" cable with the threaded
ring removed earlier.

5.

Tighten with a 15/16" wrench.

6.

Attach the GS-900 Radio Assembly to the bottom of the
GeoDock assembly using two M6 x 25mm screws.

7.

Tighten the screws with a #3 Philips screwdriver.
