Ag Leader EZ-Guide 250 Quick Reference Guide - Manual (Page 6)

EZ-GUIDE
®
250
LIGHTBAR GUIDANCE SYSTEM
EZ-GUIDE
®
250 LIGHTBAR GUIDANCE
SYSTEM QUICk REFERENCE CARD

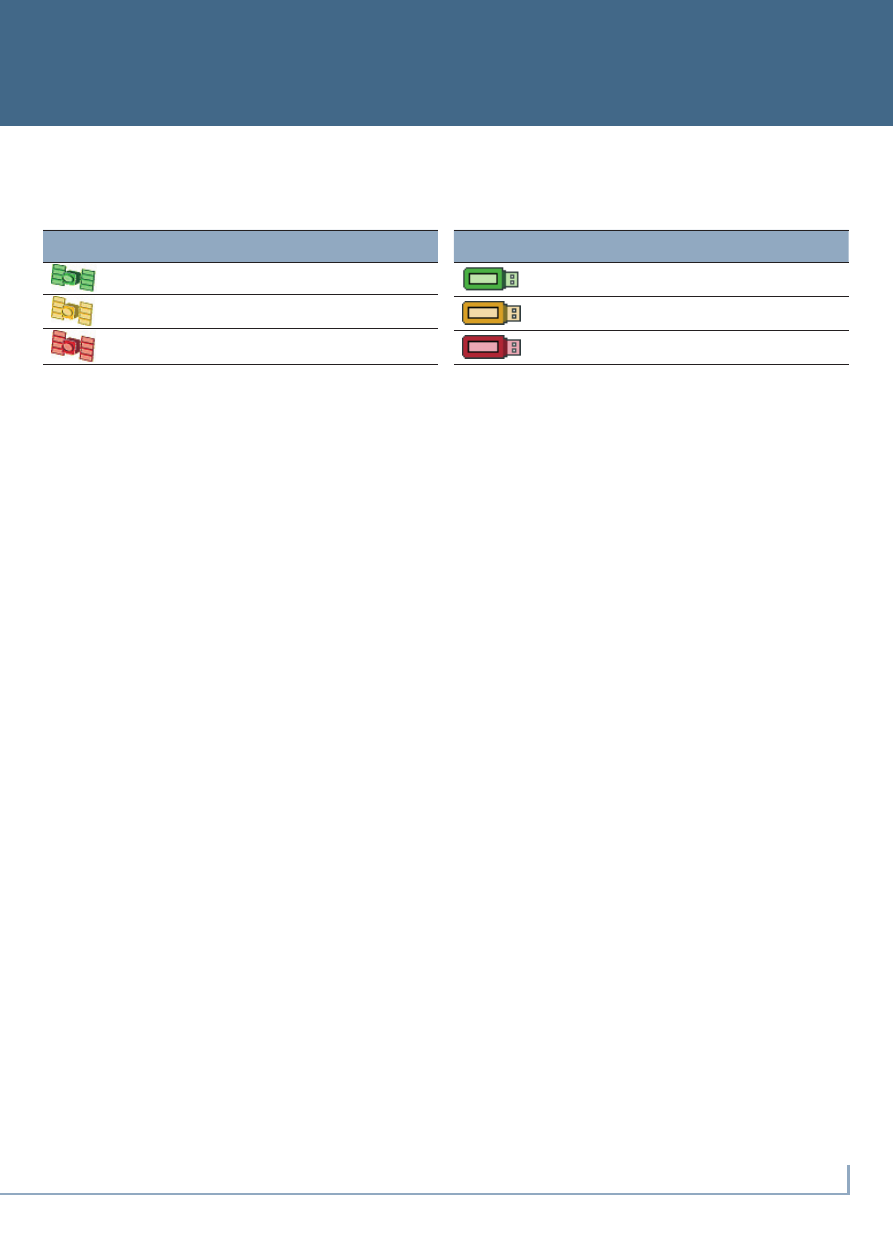

Status Indicators
On the main guidance screen, there are two status indicators:
When a USB drive is not connected, the USB icon does not appear.
Summary Report
A summary report is automatically created for each field. The summary report is a multi-page RTF
document that shows field information including coverage, event data, and field information.
The summary report is automatically saved to the lightbar memory. To copy this report to the USB
drive, select Configuration / Data Management / Manage Fields / Summary Reports / Send
Summary reports to USB. The summary report is saved to the /AgGPS/Summaries/ directory on
the USB drive.
To view the summary report on an office computer:
1. Insert the USB drive into an office computer.
2. Select the /AgGPS/Summaries/ folder.
3. Double-click the appropriate RTF file.
4. If you want to save the summary report, copy it to a folder on the office computer.
Note: To view the graphics in the file, you may need to install the Microsoft
®
Word Viewer utility
from the documentation CD.
System Configurations
In Advanced mode, you can save and load system configurations. This is useful if you want to:
• use exactly the same settings on multiple lightbars
• change settings when you move the lightbar between vehicles for different applications
To save, load or delete a system configuration, select Configuration / Data Management /
Save/Load Configurations.
For more information, refer to the EZ-Guide 250 Lightbar Product CD.
Icon GPS status (top left)
Good GPS signal
GPS Signal outside acceptable settings
No GPS signal
Icon USB drive status (lower left)
Connected and ready
Loading
USB disabled
P/N 92020-82-ENG
ZTN 92020-82-ENG
*92020-82*
© 2007–2009. Trimble Navigation Limited. All rights reserved.
Trimble,
AgGPS EZ Boom, EZ-Guide, and EZ-Steer are trademarks of
Trimble Navigation Limited, registered in the United States and in
other countries. Autopilot and FreeForm are trademarks of Trimble
Navigation Limited. Microsoft is either a registered trademark or
trademark of Microsoft Corporation in the United States and/or
other countries. Version 2.00, Rev A (February 2009).
