Ez-Guide Plus / 500 Installation Instructions
PN: 2005898 Rev A – June 2007 4

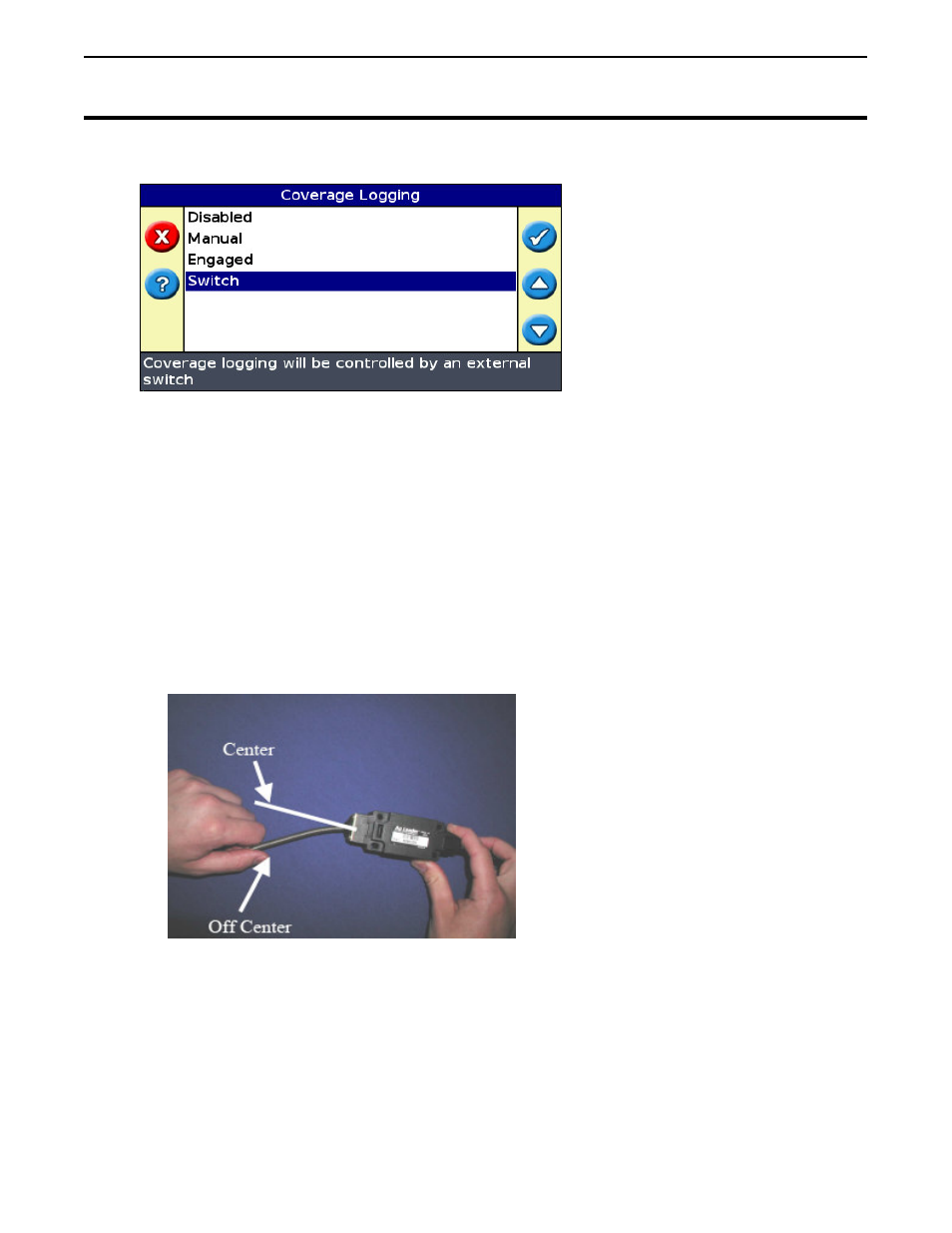

Arrow down to “Switch” and press OK.
The EZ-Guide 500 will now log coverage area when the implement switch is
triggered.
Mounting the Implement Switch
1. Decide on a location for mounting the implement switch.
2. When installing the implement switch, the switch must be mounted so that the
lever is in the off center position when the implement is in the application
position. If this can be done, skip to step 7.
