Ag Leader EZ-Guide Plus Cable – Keypad, Radar, Switch Installation User Manual
Page 3
Ag Leader Technology
Cable – Keypad, Radar, Switch
Ez-Guide Plus / 500
Installation Instructions
PN: 2005898
Rev A – June 2007
3

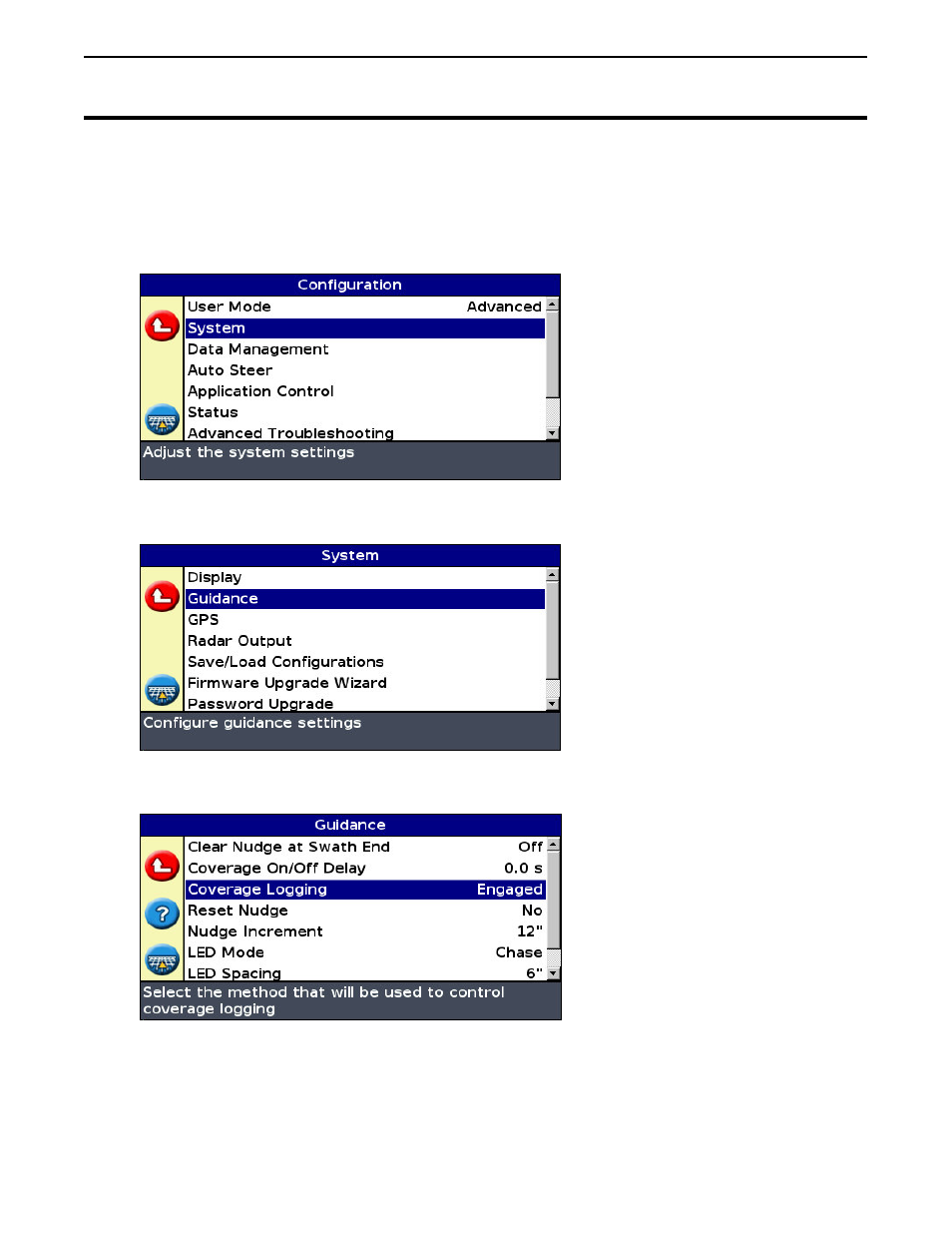

Enabling Implement Switch with EZ-Guide 500
From the run screen, arrow down to the config menu (wrench icon) and press OK.
Arrow down to “System” and press OK.
Arrow down to “Guidance” and press OK.
Arrow down to “Coverage Logging” and press OK.
