5. Once the utility finds the correct GPS receiver, the OK
button appears at the bottom of the window. Press the OK
button.

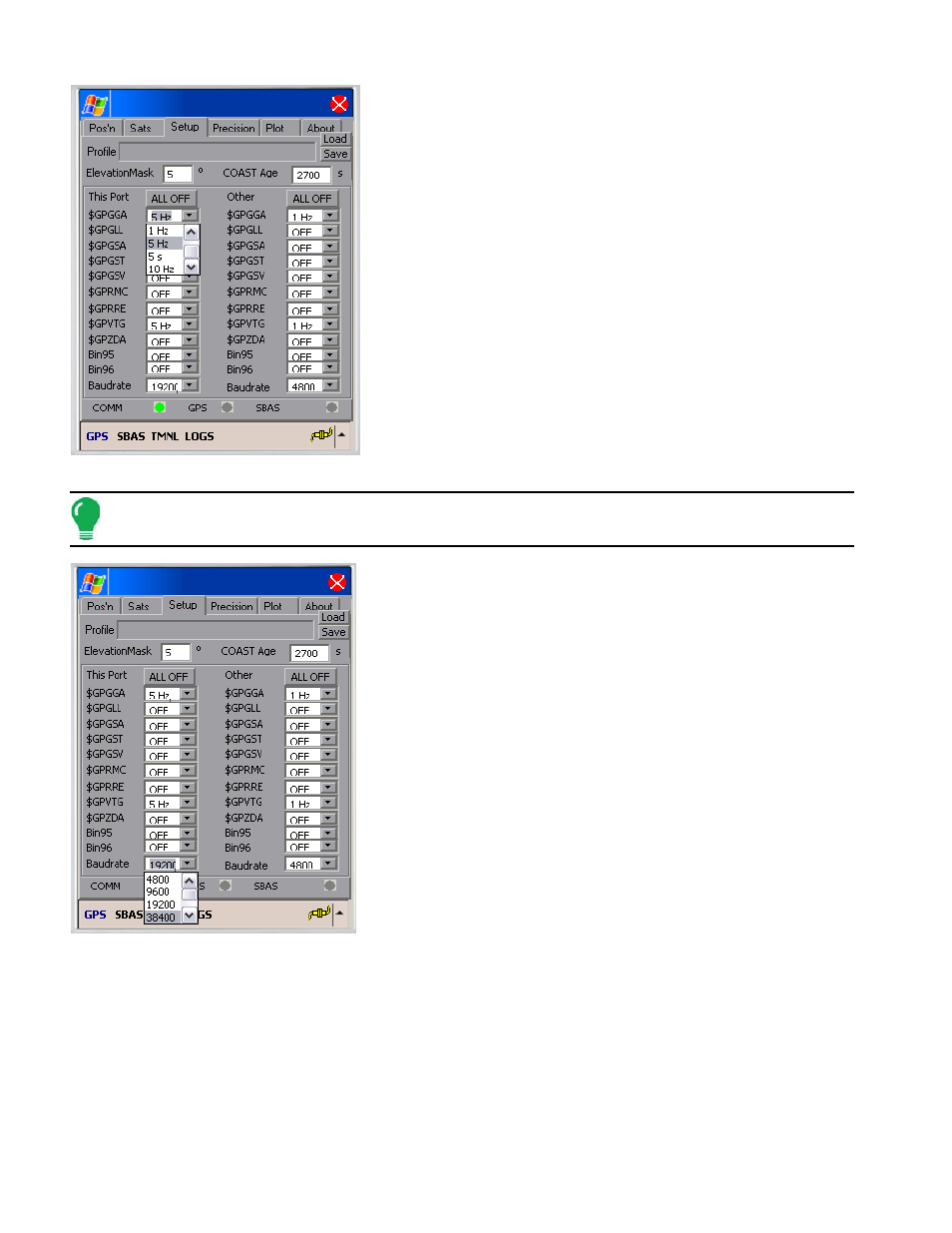

6.When the new window appears, click the Setup tab.
7. Under the “This Port” column, (located on the left-hand side of
the window) use the drop-down menu to select the correct Hz
rate, such as 5 Hz.
Selecting correct Hz rate on a NMEA string
Note: Ag Leader’s products require the GGA and VTG NMEA strings. To find out the required NMEA
strings for other products, check with the manufacturer
8.At the bottom of the drop-down menu, select the correct
baud rate. These range between 4800 and 115,200.
•Ag Leader’s PF series monitors require a 4800 baud rate.
•Ag Leader® Integra, InSight and Edge require a 38400 baud
rate
