S
ETUP
U
TILITY
S
ETUP
P
ROCEDURE
The default GPS settings are 4800 baud, 1 Hz GGA and VTG
NMEA strings.These settings will work for all Ag Leader
products.However, if the equipment that you are using requires
higher baud or Hertz rates, you many need to reconfigure the
GPS using the following procedure.
1. Download the Pocket Max PC.exe executable file from Ag
Leader’sweb site:
http://www.agleader.com/support.php?Page=downloads
2.Double click on Pocket Max PC.exe.
3. The Pocket Max PC program appears. On the Serial Port
setting, select the correct COM Port that the GPS is connected
to. Also, check the Auto Baud check box.

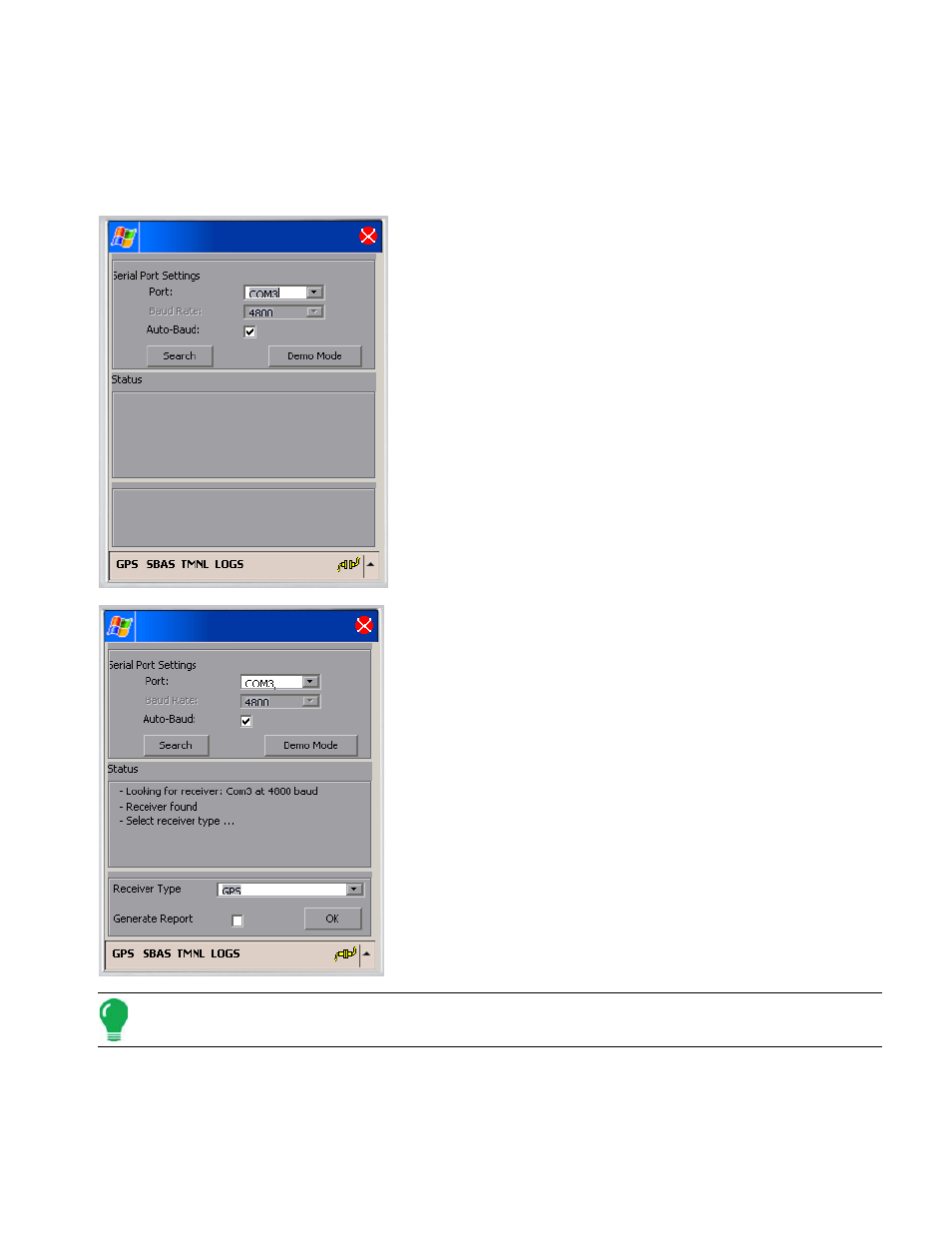

Pocket PC with COM Port and Auto-Baud selected
4.Press the Search button. The utility then searches for the
correct GPS receiver.
Utility after finding correct GPS receiver with OK button showing
Note: If the utility cannot find the correct GPS receiver, use a different COM port and repeat. Also,
make sure that the GPS is powered.
3
