DirectCommand
TM
Spreader
Quick Reference Guide
AL: 2006314 - ENG Rev C
Spreader Control button
- on/off state of control channel
- shaft speed RPM
- spinner fan speed RPM

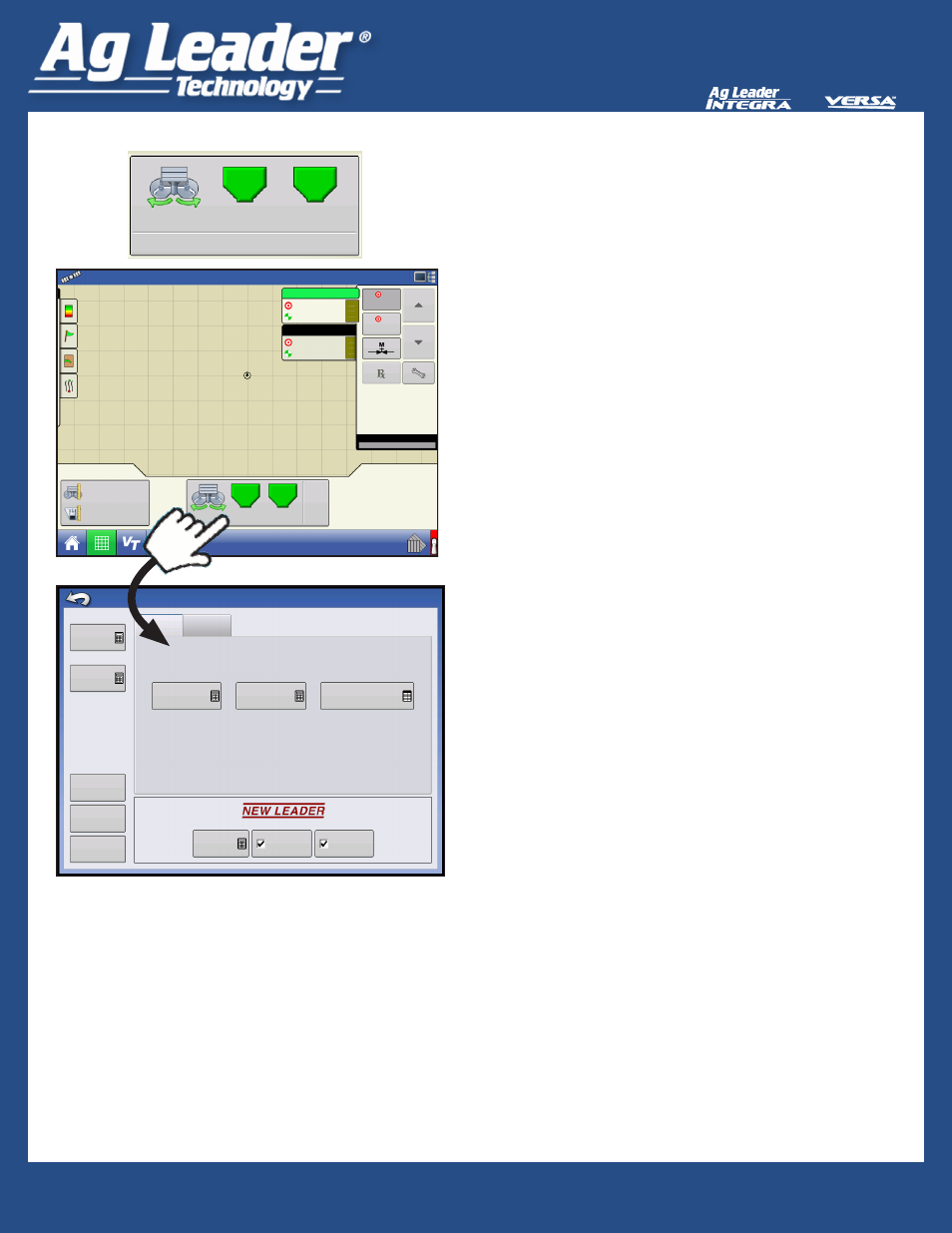

Press button to display Spreader Control
window.
Spread Width
use numeric keypad to edit value
Spinner Speed
speed is controlled automatically based
upon this setting when system uses an
optional PWM spinner speed control valve
Chain Oiler
automatically perform oiling routine by
pressing button and following the steps
Static Calibration
performs automated routine to calibrate
each metering circuit while machine is
stationary
In-Field Calibration
performs automated routine to adjust the
calibration number for the selected metering
circuit if there is a difference between the
amount of product logged compared to
what was actually applied
Product Density
value (lb/ft 3 ), is stored for each product. Use
the numeric keypad to edit value.
Feed Gate Opening
measure depth of product on conveyor to
ensure accurate value
Conveyor Rate
volume of product dispensed (ft 3 /rev) by
one revolution of the meter drive shaft
Fan Frame & Feed Gate Actuator Setting
optional settings used by New Leader
module
Fan Frame
enables the fan frame actuator, displays
distance between spinner bed and
spinner assembly
Feed Gate
enables the feed gate actuator
