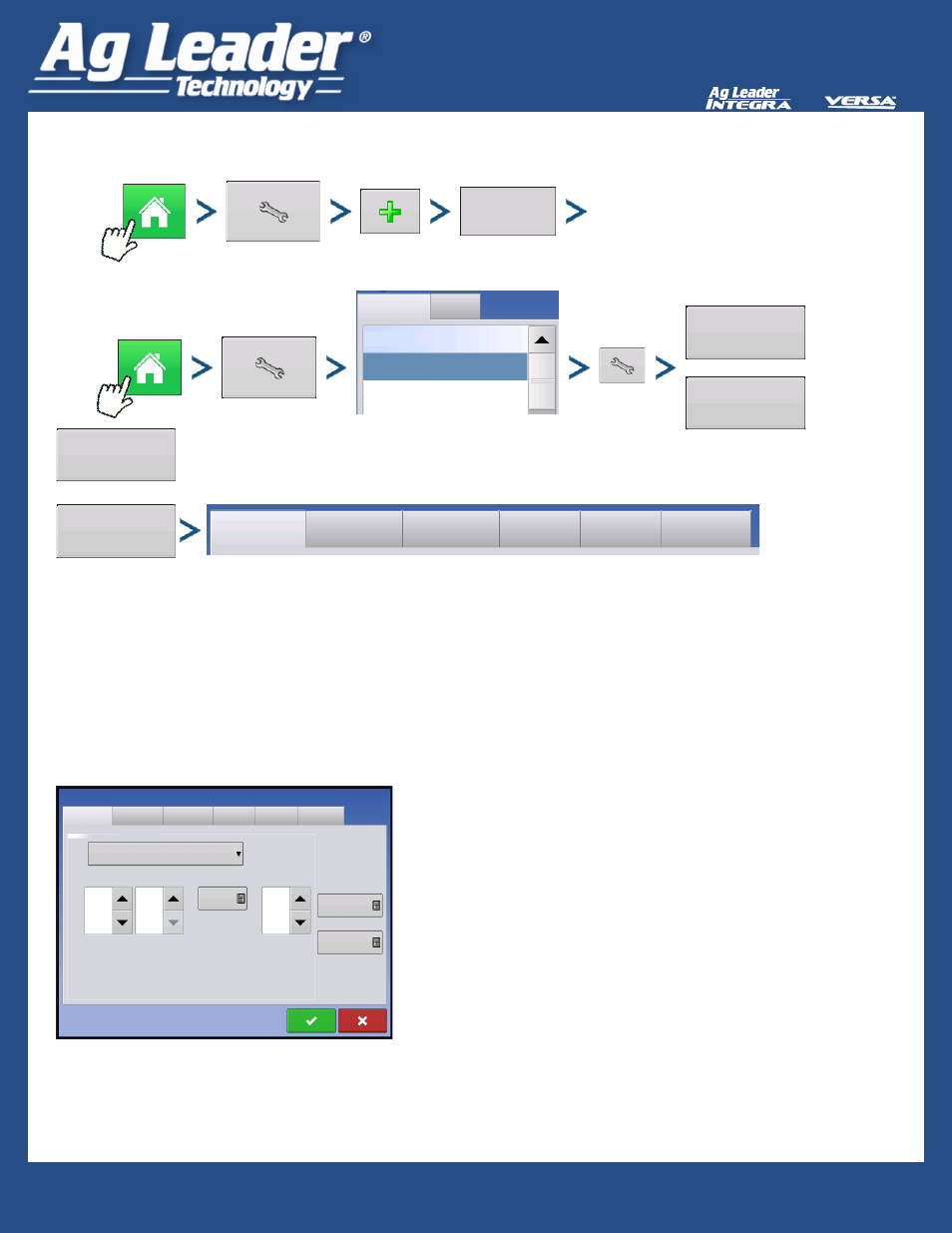

Fan Frame Feed Gate Calibration
calibrate fan frame feed gate
Valve Response 1
fast speed of valve, decrease to slow response time,
default = 40%
Valve Response 2
slow speed of valve, decrease to slow response time,
default = 8%
Response Threshold
point where system switches between using Valve
Response 1 and Valve Response 2, increase to slow
response time, default = 15
Allowable Error
error allowed before making rate control adjustments
Shaft Speed Calibration
pulses/revolution of metering shaft
Max Speed
maximum allowable RPM of product conveyor
Servo Valve
There is a tab for every channel of control with Control Valve Configurations and related settings.
Note: Five channels of control are only available with 5 channel Spreader Control Module.
Create Configuration
Enter Settings
Start of Configuration Wizard
Press to Highlight Configuration
4930rx
Application
Configuration
Product
Application
Fan Frame
Feed Gate
Calibration
Controller
Settings
Fan Frame
Feed Gate
Calibration
Controller
Settings
Channel 1
Channel 2
Channel 3
Channel 4 Channel 5
Spinner
Control Valve Configuration
Channel 2
Channel 3
Channel 4
Channel 5
Spinner
Channel 1
Servo
Valve
Response 1
Valve
Response 2
Response
Threshold
Allowable
Error
Max Speed
Shaft Speed
Calibration
180 pls/rev
60 rpm
2 %
8 %
40 %
15
Spreader Control
