INSTALLATION (continued)

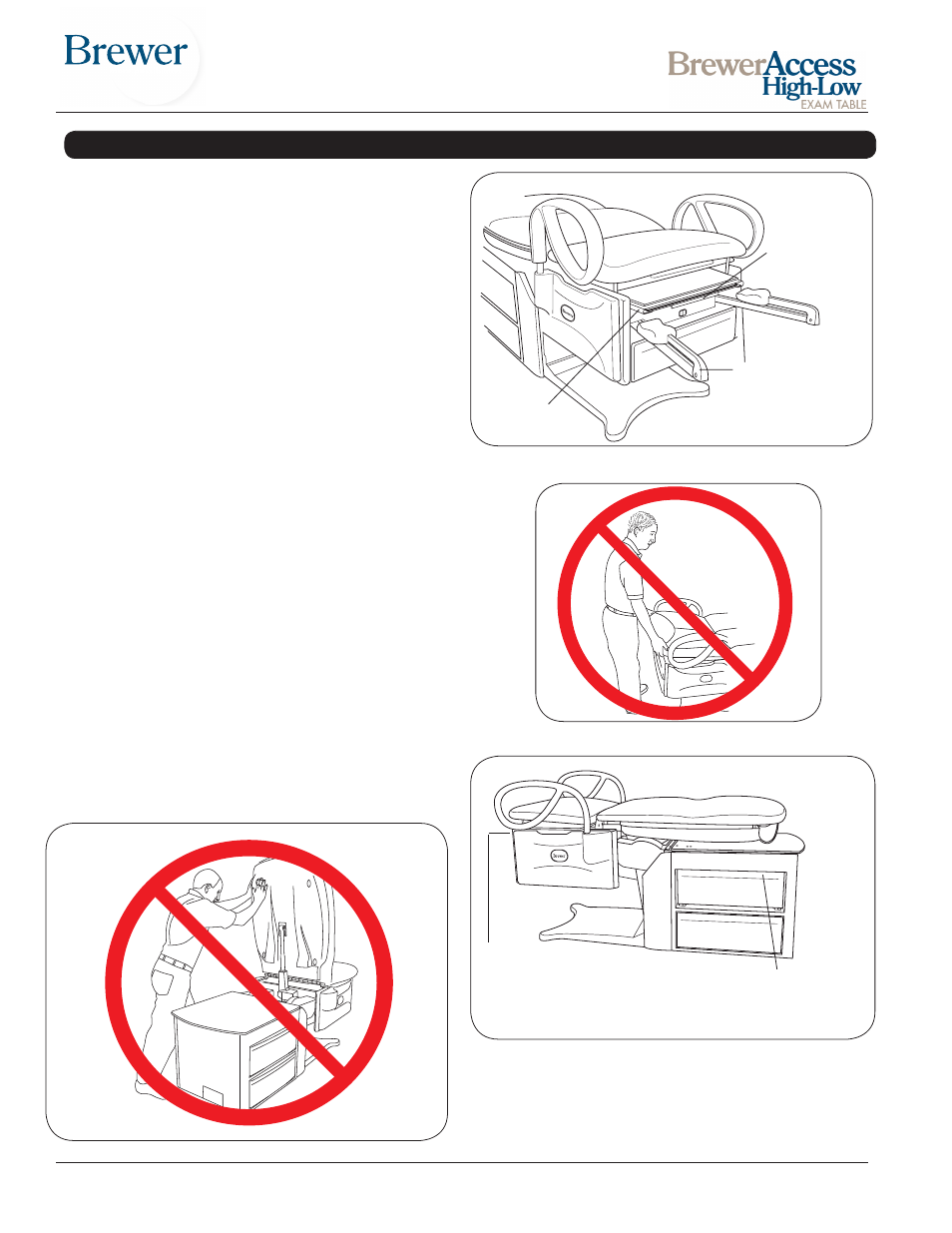

Figure 7. Table Lift Points

Lift table at these points only

Slide drawer and

lift here

Pull Leg Support out

slightly and lift here. Do not

lift by the Leg Extension.

See Figure 4.

Figure 8. DO NOT Push on Backrest

Figure 5. Stirrups & Leg Support

Figure 6. Do Not Lift by Upholstery

Do Not Use

Leg Extension

to Lift

DO NOT LIFT BY

STIRRUPS!

Use Leg

Support

6. Remove the gray power cord from the rear drawer.

Plug the power cord into the socket at the bottom of

the rear panel (Figure 10). Plug the power cord into

a 120 Volt grounded receptacle.

7. Make sure the black On/Off Switch at the back of the

table is on (Figure 14 ).

8. Depress the switch on the foot control for lifting the

seat section until all the weight is removed from the

wooden U-shaped brace. Remove the brace and

spacers.

9. Unplug the power cord from the table and the

receptacle. Remove the foot control from the table.

Observe the following cautions when lifting the table

from the pallet.

• Do not lift table by stirrups (Figure 5).

• Lift front of table by leg support (Figure 5). Pull leg

support (not leg extension) out approximately 6”.

• Do not lift by upholstery (Figure 6).

• Lift rear of table by pushing top rear pass-through

drawer to one side and using opening as a hand hold

(Figure 7) .

• Whenever moving table, lift and lower. Do not drag

table. Damage to the levelers may occur.

• Do not push on backrest. Damage to the actuator

(mechanism that raises and lowers the backrest may

occur (Figure 8).
