Caution – Brewer Access High-Low User Manual

Page 16

Document # 100452 RevL

TABLE ADJUSTMENTS (continued)

Caution: Maximum Total Load 3A

Manual Pelvic Tilt

(Models 6001, 6501 and 6801)

The manual pelvic tilt feature sets the seat angle at 0°

(horizontal) or 5° (up) position.

Pull up on the front of the seat and the pelvic tilt auto-

matically travels to the locked tilt position (Figure 29).

Note: pulling up with excessive force can damage the

pelvic tilt mechanism. Lift only with enough force to

engage mechanism. Lift the adjustment lever and lower

the seat to the horizontal position.

CAUTION

Patient must be removed from table prior to lower-

ing the seat.

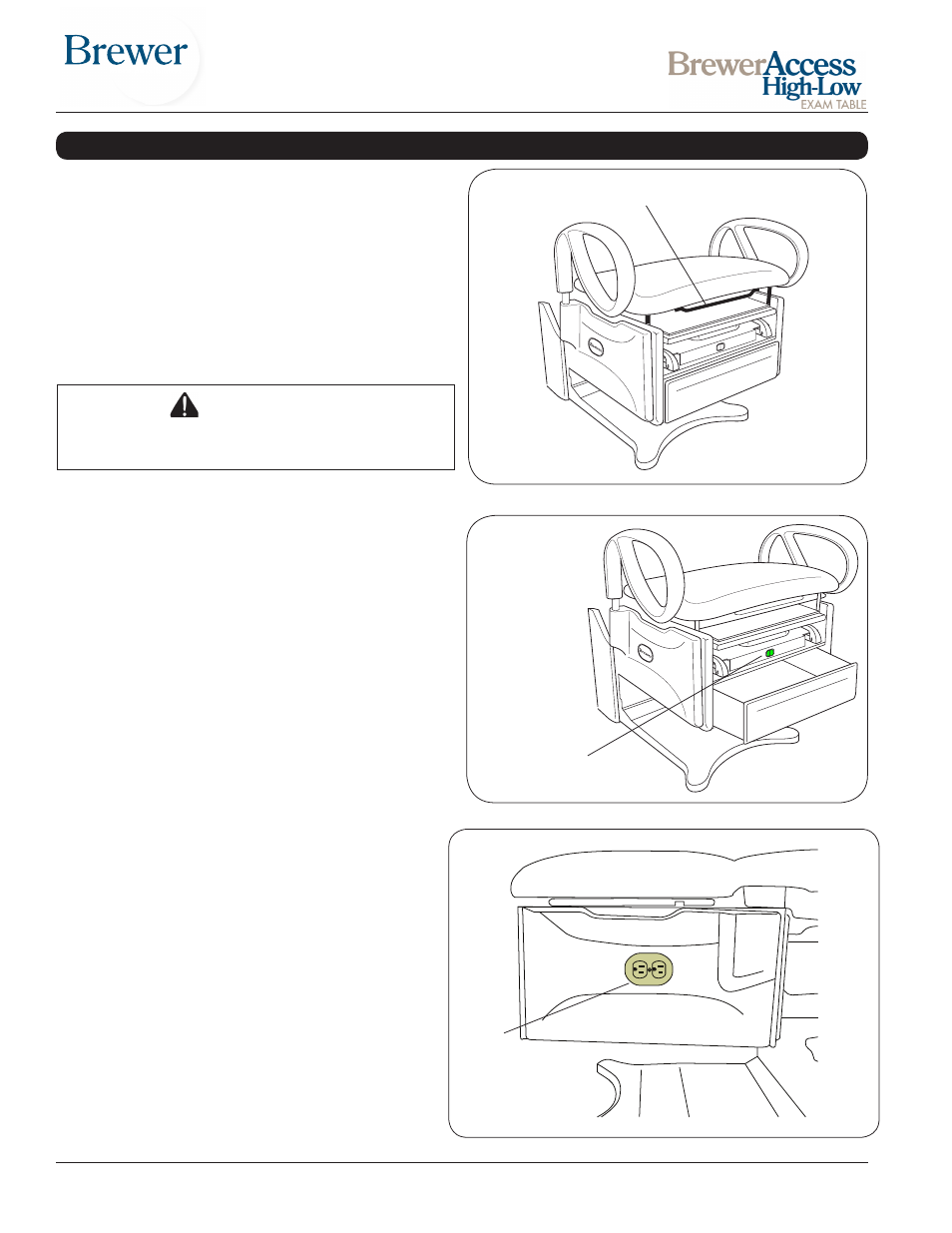

Figure 29. Pelvic Tilt Adjustment

Pelvic Tilt Adjustment Bar

Outlet

(Models 6501 and 6801)

(Optional on 6001)

Drawer Warmer

(Models 6001,

6501 and 6801)

Front Drawer Warmer

(Models 6001, 6501 and 6801)

Models 6001,6501 and 6801 are equipped with a drawer

warmer that is turned on by a switch located above the

drawer (Figure 30).

Note: Do not stack instruments in the front drawer. Place

instruments in one layer in the bottom of the drawer.

Note: This switch is for the drawer warmer only. The

On/Off switch for the table functions is located on the

back of the table (Figure 14).

Outlet

(Models 6001, 6501 and 6801)

Models 6001,6501 and 6801 are equipped with

an Outlet (Figure 31). The total amperage rating

for the table is 3 amps. The maximum total load

that can be plugged into the outlet is 2 amps.

Figure 30. Front Drawer Warmer Switch

Figure 31. Table Outlet
