Seat and Backrest Safety Switches

All Models

All models are equipped with safety switches. They are

located inside the backrest cover, on the seat back and

on the bottom of the chair assembly. Each safety switch

automatically stops the lowering function if an obstruction

is encountered (Figure 14).

Safety On/Off Switch

All Models

The On/Off switch (located on the back of the rear cabinet,

Figure 14) can be set to the OFF position to disable all

movement of the table. Power to the drawer warmer (if so

equipped) and other portions of the table will remain on.

Safety Switches

Located Inside

Backrest Cover

Safety Switches

Located Inside

Seat Back

(both sides)

Safety Switches

Located on

Seat Bottom Plate.

Safety On/Off Switch

Located on

Back of Table

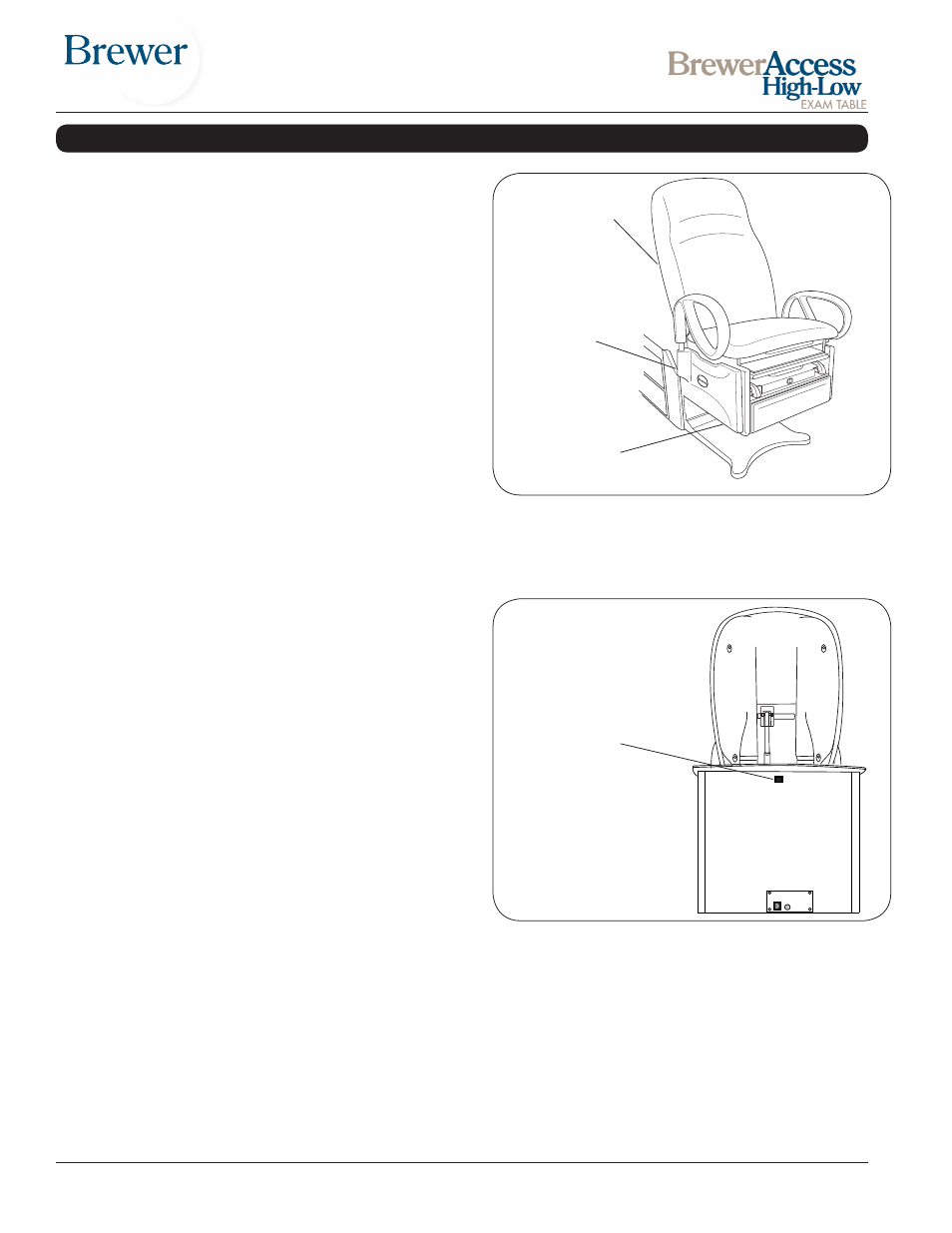

Figure 13. Seat and Backrest Safety Switches

Figure 14. On/Off Safety Switch

Powered Backrest (Models 6500, 6501, 6800 and 6801)

Models 6500, 6501, 6800 and 6801 are equipped with

safety switches on the rear of the backrest which auto-

matically stops the lowering function of the seat and back

if an obstruction is encountered.

Depress the BACK UP pedal and remove the obstruction.

Pneumatic Manual Backrest (Models 6000 & 6001)

The safety switches automatically stop the lowering func-

tion of the seat if an obstruction is encountered.

OPERATION (continued)
