Snapshot XP user guide 61
2. Select and right-click a Snapshot XP pair in the volume list, and select S-Vol Path. The S-Vol Path pane
appears.

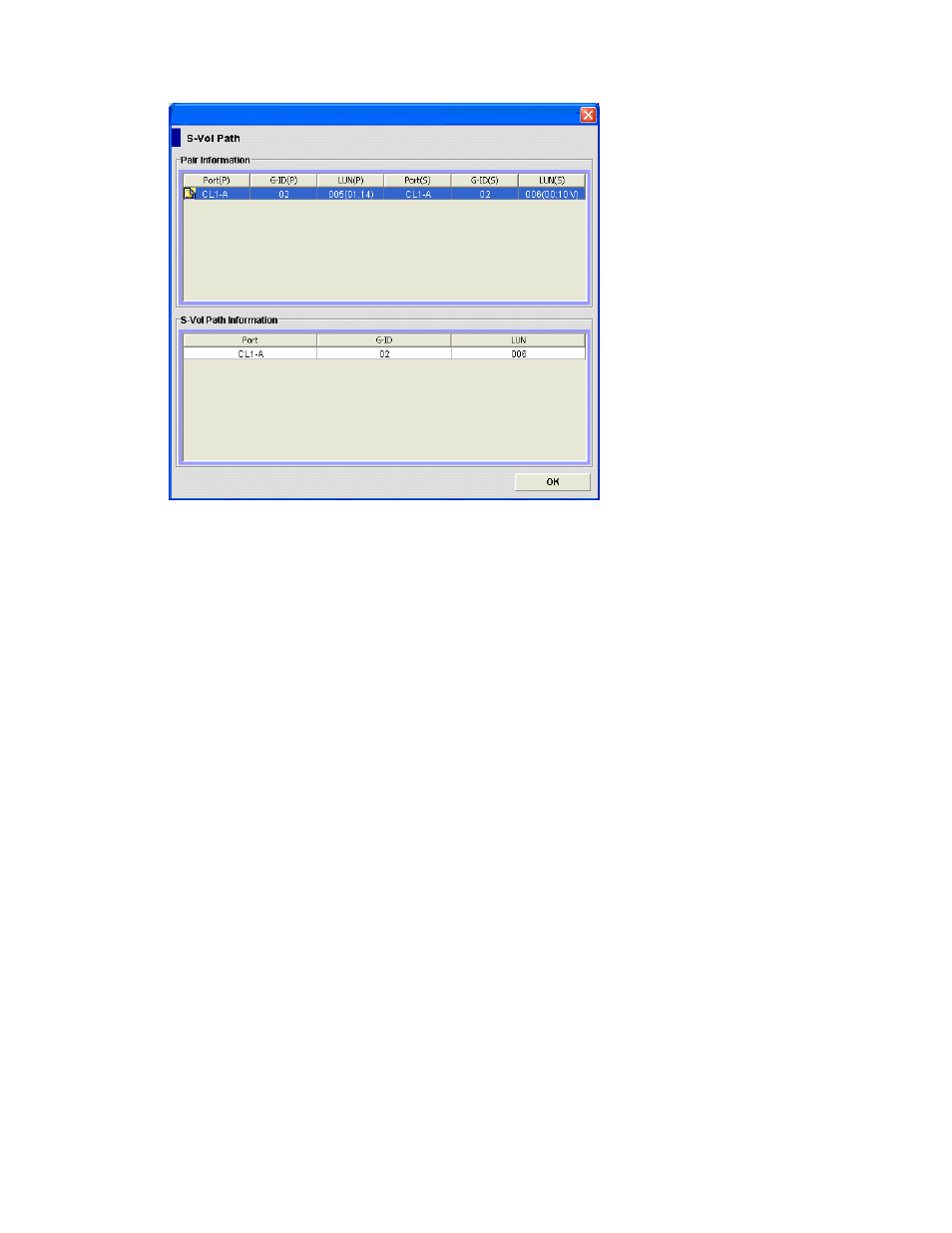

Figure 20 S-Vol Path pane
• Pair Information: The following information appears:
• Port(P): P-VOL’s port ID
• G-ID(P): Group number of the P-VOL’s host group or iSCSI target
• LUN(P): P-VOL’s LUN
• Port(S): S-VOL’s port ID
• G-ID(S): Group number of the S-VOL’s host group or iSCSI target
• LUN(S): S-VOL’s LUN
• S-Vol Path Information: The following S-VOL path information for the selected Snapshot XP pair
appears:
• Port: S-VOL’s port ID
• G-ID: Group number of the S-VOL’s host group or iSCSI target
• LUN: S-VOL’s LUN
• OK button: Closes the S-Vol Path pane.
Displaying operation history
To display the history of operations on Snapshot XP pairs (such as creating pairs, deleting pairs, and
storing snapshot data in the pool), use the History pane.
1. Launch Command View XP or XP Remote Web Console.
2. Click the Business Copy button. The Business Copy XP main pane appears.
3. Select the History tab. The History pane appears.
