60 Snapshot XP operations
NOTE: If you select Detail when you selected a Business Copy XP pair, the Detail pane is different
than when you select a Snapshot XP pair. For more information, see the HP StorageWorks
Business Copy XP user guide for the XP12000/XP10000/SVS200.

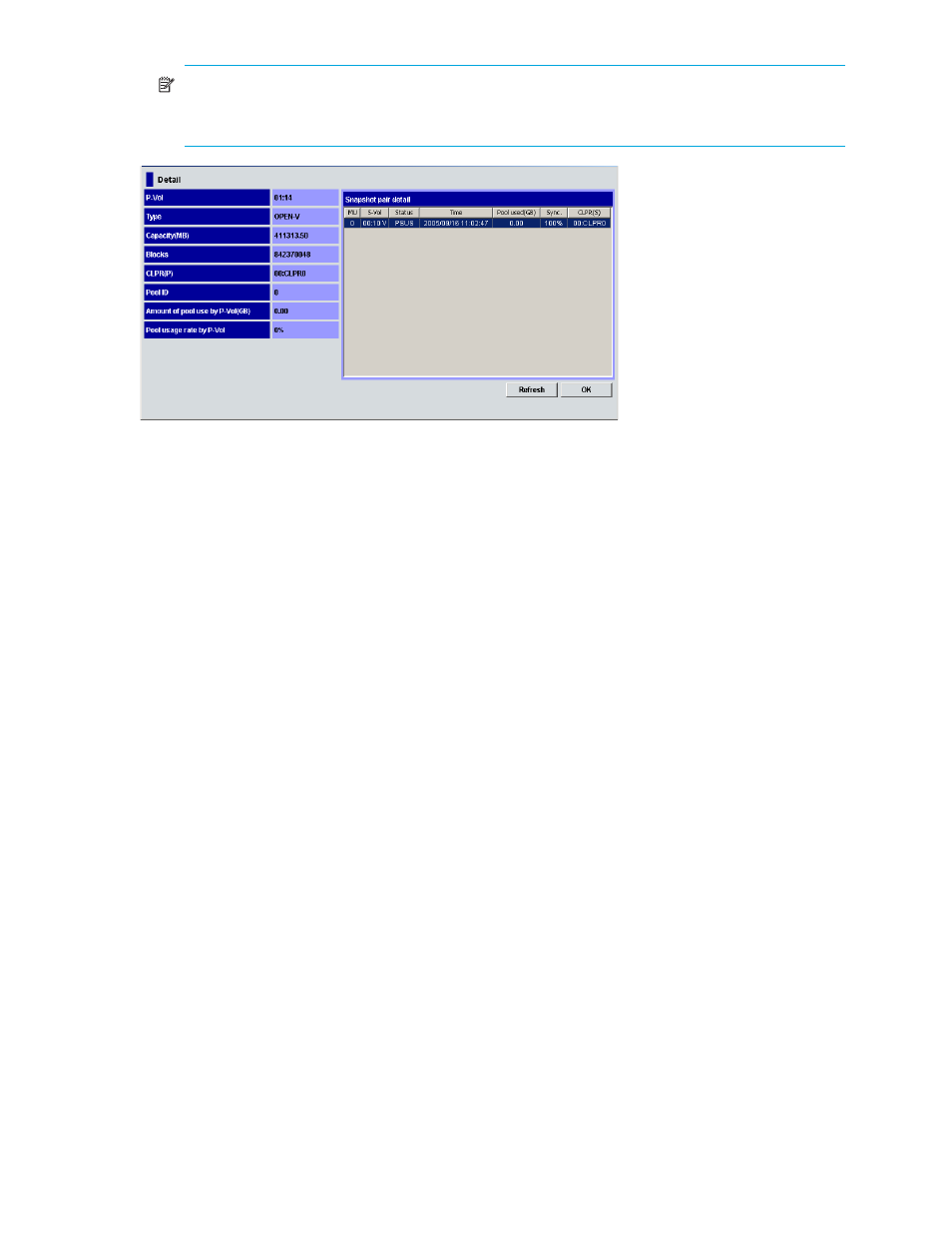

Figure 19 Detail pane for Snapshot XP pair
• P-Vol: P-VOL’s CU and LDEV numbers.
• Type: P-VOL’s emulation type.
• Capacity(MB): P-VOL’s capacity. The unit is megabyte (MB).
• Blocks: Number of blocks the P-VOL uses.
• CLPR(P): P-VOL’s cache logical partition (CLPR).
• Pool ID: Pool ID of the pool in which the P-VOL is registered.
• Amount of pool use by P-Vol(GB): Amount of pool capacity the P-VOL used.
• Pool usage rate by P-Vol: P-VOL’s pool usage rate.
• Snapshot pair detail list: Displays the following snapshot data items:
• MU: Snapshot ID
• S-Vol: S-VOL’s CU and LDEV numbers
• Status: Snapshot XP pair status
• Time: Time when snapshot data is stored in the pool
• Pool used(GB): Pool capacity the S-VOL uses
• Sync.: Consistency rate of the P-VOL and S-VOL data
• CLPR(S): S-VOL’s cache logical partition (CLPR)
• Refresh button: Updates information in the Detail pane.
• OK button: Closes the Detail pane.
S-Vol Path Information pane
1. Display the Business Copy XP main pane.
