Snapshot XP user guide 37
5 Snapshot XP operations
This chapter describes Snapshot XP operations and panes.
Displaying the Business Copy XP main pane
1. Launch Command View XP or XP Remote Web Console.
2. Click the Business Copy ( ) button. The Business Copy XP main pane appears.

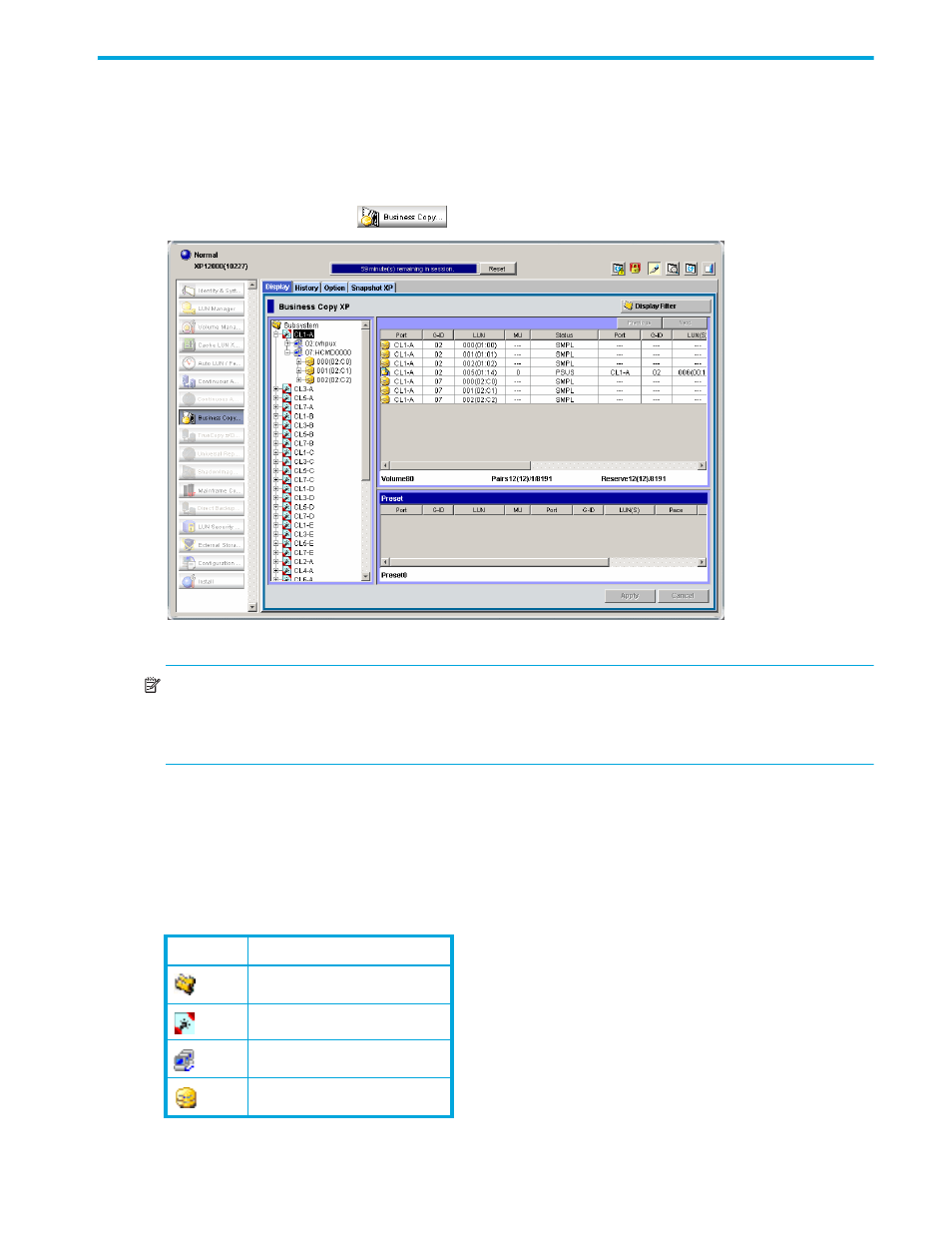

Figure 5 Business Copy XP main pane
NOTE: Although the Business Copy XP main pane displays information about Business Copy XP and
Snapshot XP pairs, this section only explains items related to Snapshot XP pairs. For more information
about items related to Business Copy XP pairs, see the HP StorageWorks Business Copy XP user guide for
the XP12000/XP10000/SVS200.
• Display Filter button: Displays the Display Filter pane ( Figure 8 ) where you can filter the volumes
displayed in the volume list.
• Tree (left area of pane): Displays ports that are defined paths, host groups, iSCSI targets, or LUNs in a
tree format. When you select items in the tree, information about Business Copy XP or Snapshot XP
pairs appears in the volume list on the right of the pane.
To display information about all pairs in the array, select Subsystem at the top of the tree.
The following icons appear in the tree.
Icon Description
Array
Port
Host group or iSCSI target
LUN
