38
Snapshot XP operations
•
Volume list (upper-right area of pane): Displays Business Copy XP or Snapshot XP pairs on the port,
host group, iSCSI target, or LUN selected in the tree. You can sort volumes by any column heading in
the volume list.
•
Preset list: Displays operations that have been performed in the Business Copy XP main pane, but
have not been applied to the array. To apply operations displayed in the Preset list to the array, click
Apply.
For more information, see ”
•
Apply button: Applies operations displayed in the Preset list to the array. If specified operations are
applied successfully, the Preset list is cleared. If an error occurs during an operation, the failed
operation remains in the Preset list preceded with an error icon ( ). Error codes and messages
appear on the error pane.
•
Cancel button: Cancels all operations set in the Preset list.
Volume list
The volume list is the upper-right area of the Business Copy XP main pane. The volume list displays
volumes that Business Copy XP or Snapshot XP can use and pair information about these software
products.

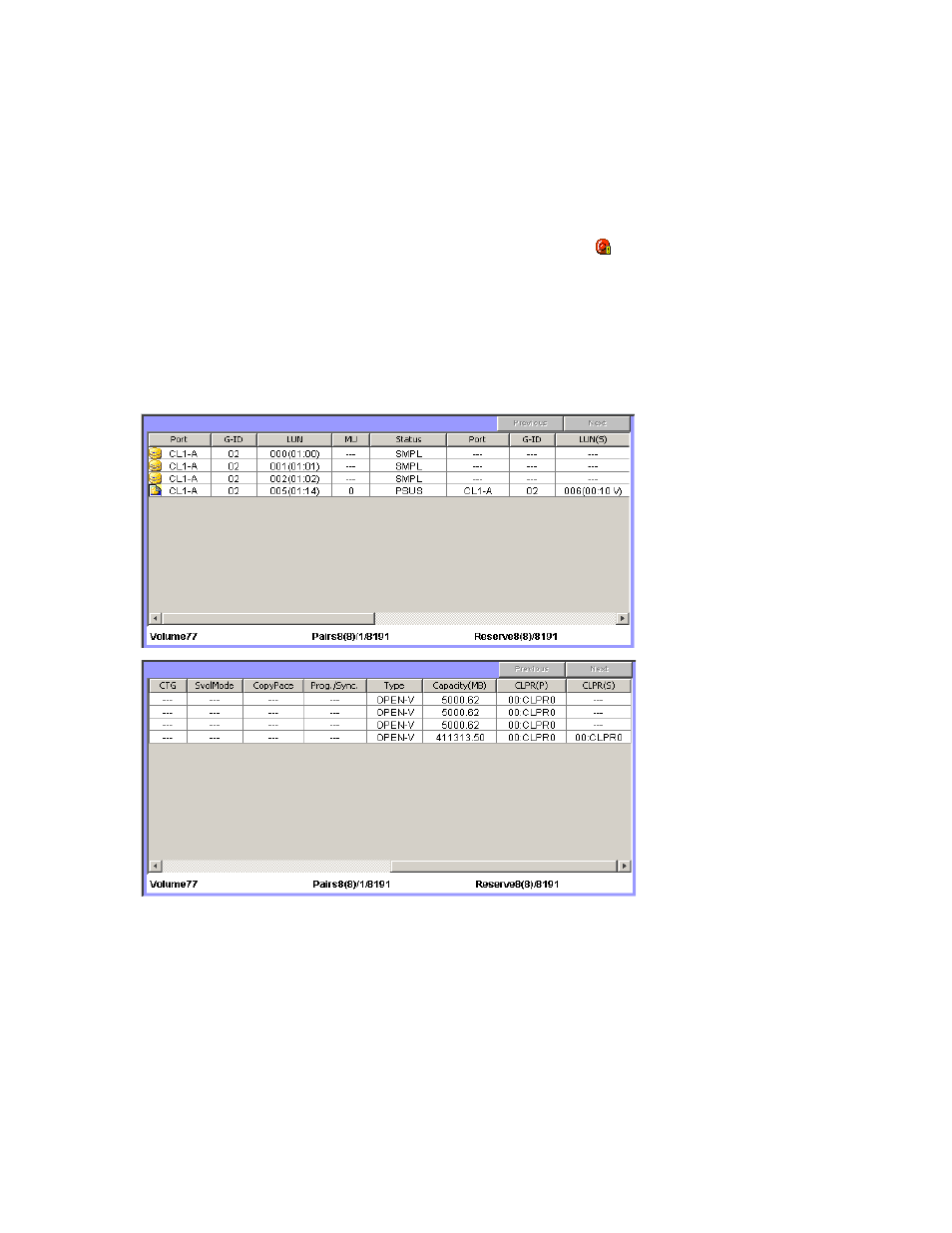

Figure 6
Volume list
When you select a port, host group, iSCSI target, or LUN in the tree on the left side of the Business Copy
XP main pane, information about volumes belonging to the selected item appears in the volume list. You
can specify conditions such as pair status or reserved attribute on the Display Filter pane to select volumes
that can be displayed in the volume list. For more information about the Display Filter pane, see
Specifying conditions for volumes displayed in the volume list
•
Previous button: hen the total number of volumes in the array is more than 1,024, displays the
previous page of the volume list. If the number of items in the volume list is less than 1,024, this button
is grayed out.
•
Next button: When the total number of volumes in the array is more than 1,024, displays the next
page of the volume list. If the number of items in the volume list is less than 1,024, this button is grayed
out.
