HP SAN - Manual (Page 17)

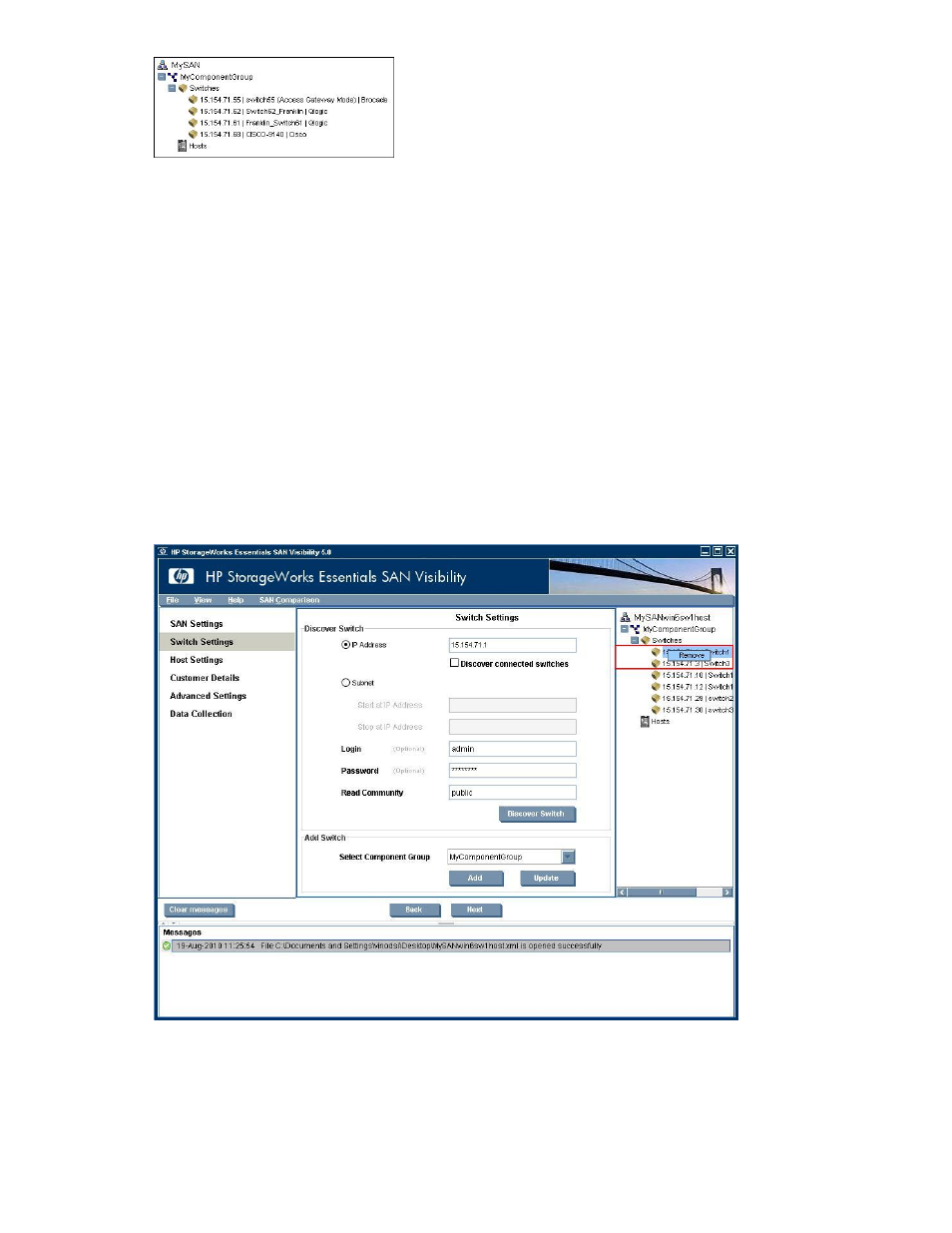

Figure 5 Brocade AG mode switch example
.
Modifying switch details
To modify switch details, complete the following steps:
1. Select the switch you want to modify from the SAN explorer area to view its details.
2. Modify the switch details as required.
3. Click Update to save the modified switch details.
Removing a switch
To remove a switch from the component group, complete the following steps:
1. Select the switch you want to remove from the SAN explorer area.
2. Right-click and select Remove from the pop-up menu, as shown in Figure 6 .
The switch is removed from the component group.
Figure 6 Removing switch
.
HP StorageWorks Essentials SAN Visibility 5.0 User Guide 17
