Zoned storage—dual domain, wide-port cabling

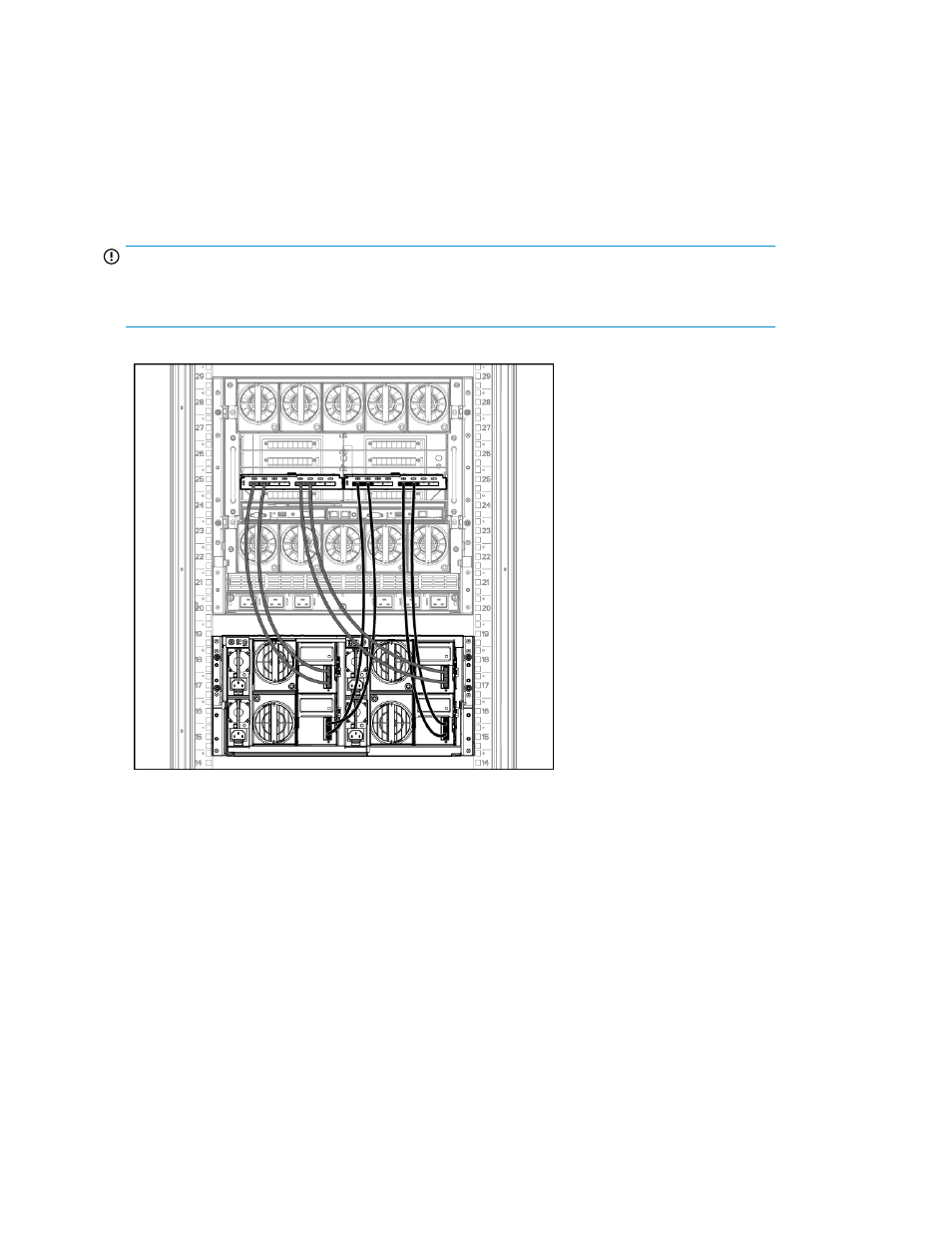

This example illustrates cabling for an optimal high-performance, high-availability configuration when
using dual-port SAS disk drives. In this configuration, note the following:

An additional cable from each MDS600 I/O module to an adjacent port on the switch offers ad-
ditional performance: one cable provides a x4 connection; two cables provide a x8 (wide-port)
connection.

IMPORTANT:

When using wide-port cabling, both cables from an MDS600 I/O module must connect to one of the
following pairs of switch ports: 1/2, 3/4, 5/6, or 7/8.

Devices and quantities
MDS600 storage enclosures: 1
MDS600 I/O modules: 4
BladeSystem c7000 enclosures: 1
3Gb SAS BL switches: 2
Server blade types: half-height and full-height
Connection details

Switch in interconnect bay 5:
• Port 1: to MDS600 drawer 2, primary

I/O module, port 1

• Port 2: to MDS600 drawer 2, primary

I/O module, port 2

• Port 5: to MDS600 drawer 1, primary

I/O module, port 1

• Port 6: to MDS600 drawer 1, primary

I/O module, port 2

Switch in interconnect bay 6:
• Port 1: to MDS600 drawer 2, second-

ary I/O module, port 1

• Port 2: to MDS600 drawer 2, second-

ary I/O module, port 2

• Port 5: to MDS600 drawer 1, second-

ary I/O module, port 1

• Port 6: to MDS600 drawer 1, second-

ary I/O module, port 2

Notes

As shown in this illustration, server bays
1–8 may access MDS600 drawer 2 and
server bays 9–16 may access MDS600
drawer 1.

Installation procedures

24
