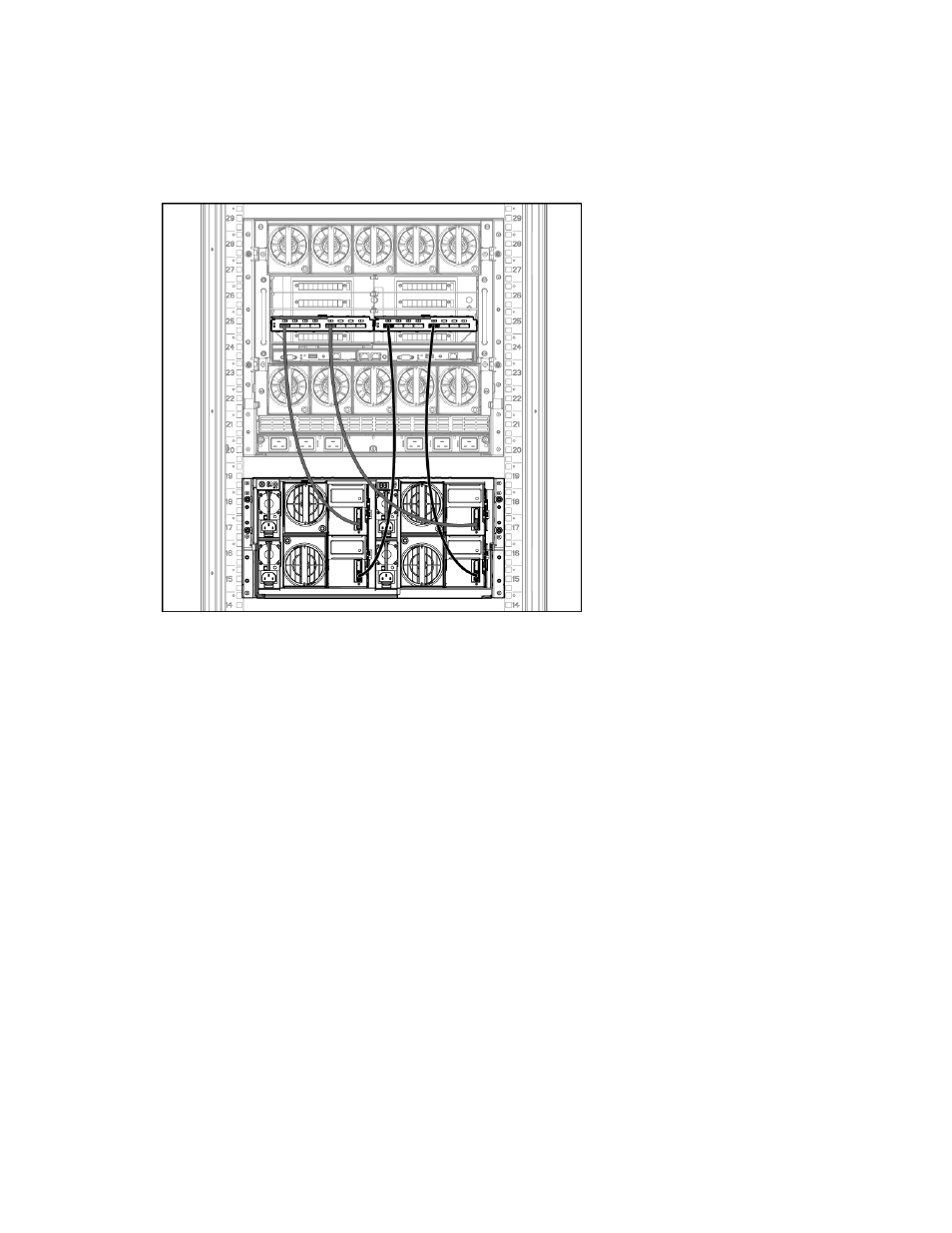

Zoned storage—dual domain, standard cabling

This example illustrates standard cabling for a high-availability configuration when using dual-port
SAS disk drives. In this configuration, note the following:

One cable from each MDS600 I/O module to each switch offers high availability.

Devices and quantities
MDS600 storage enclosures: 1
MDS600 I/O modules: 4
BladeSystem c7000 enclosures: 1
3Gb SAS BL switches: 2
Server blade types: half-height and full-height
Connection details

Switch in interconnect bay 5:
• Port 1: to MDS600 drawer 2, primary

I/O module, port 1

• Port 5: to MDS600 drawer 1, primary

I/O module, port 1

Switch in interconnect bay 6:
• Port 1: to MDS600 drawer 2, second-

ary I/O module, port 1

• Port 5: to MDS600 drawer 1, second-

ary I/O module, port 1

Notes

If connecting additional MDS600 storage
enclosures, use a similar cabling pattern
from available switch ports to the I/O
modules in the additional MDS600 stor-
age enclosures. For an example, see

Zoned storage—dual domain, wide-port
cabling

, page 24.

If sufficient ports on the switch are avail-
able, HP recommends connecting an ad-
ditional cable from the switch to the I/O
modules, for additional performance and
fault tolerance.
