26 Requirements and overview of copy operations
external array, the server cannot read from and write to the external LU. Figure 15 shows the
connection configuration of the server and arrays when creating the Business Copy XP pair.

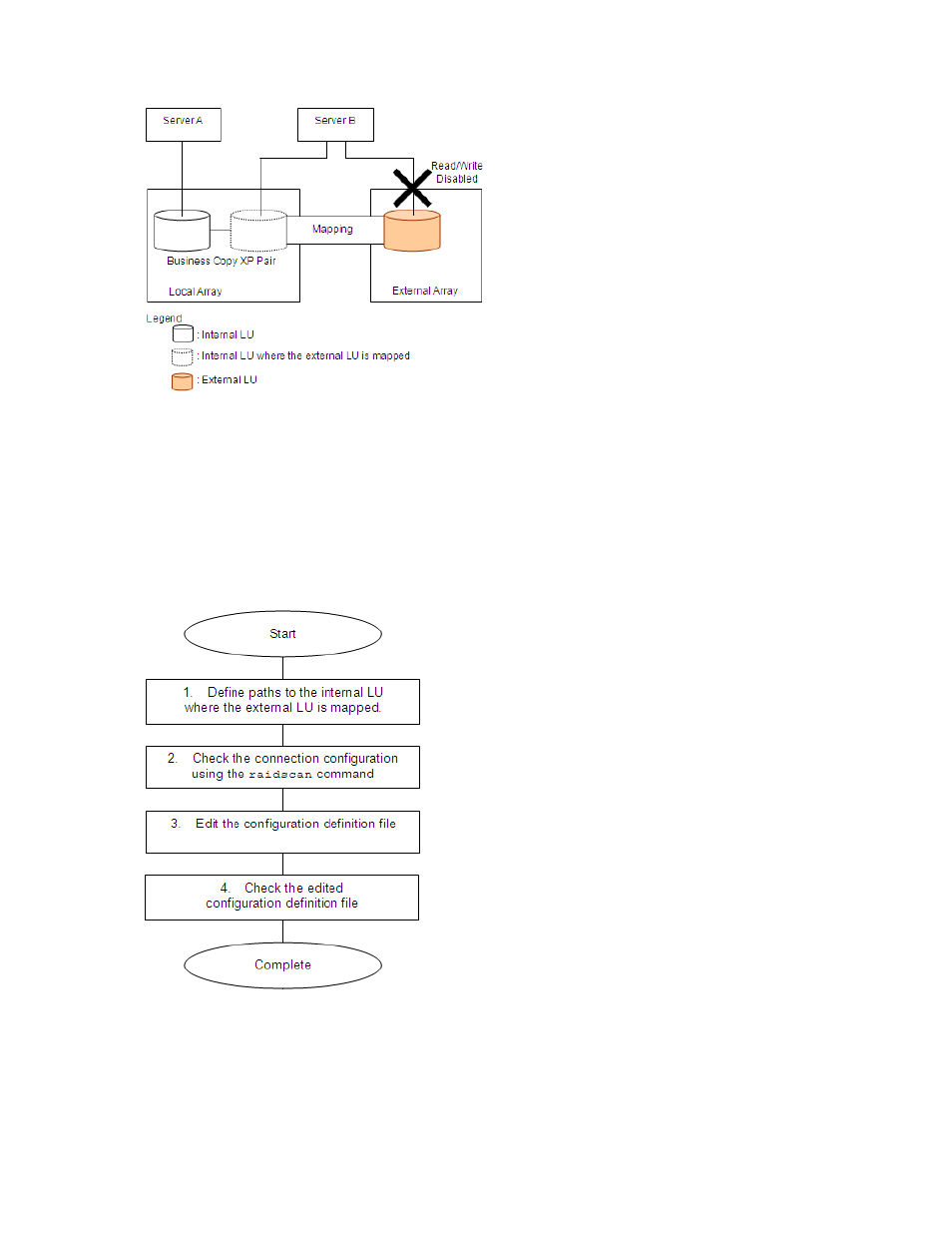

Figure 15 Connection configuration when using Business Copy XP
When creating the configuration definition file for RAID Manager XP, check the volume’s attributes, and
ensure that you can create the desired type of copy pair (Flex Copy XP or Business Copy XP pair).
Preparing for RAID Manager XP command operations
This section describes the procedure required before you start operating the Flex Copy XP pair using RAID
Manager XP commands and after mapping an external LU as an internal LU.
Figure 16 shows the flow chart of the steps required before you operate the Flex Copy XP pair using the
RAID Manager XP commands.
Figure 16 Procedure before Flex Copy XP pair operations using RAID Manager XP
